S01-30300500

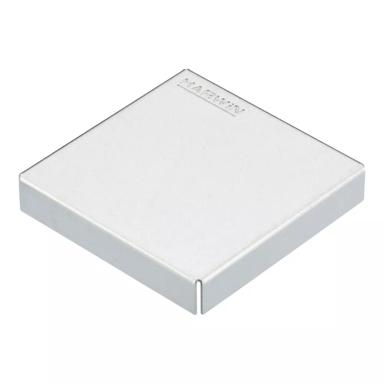

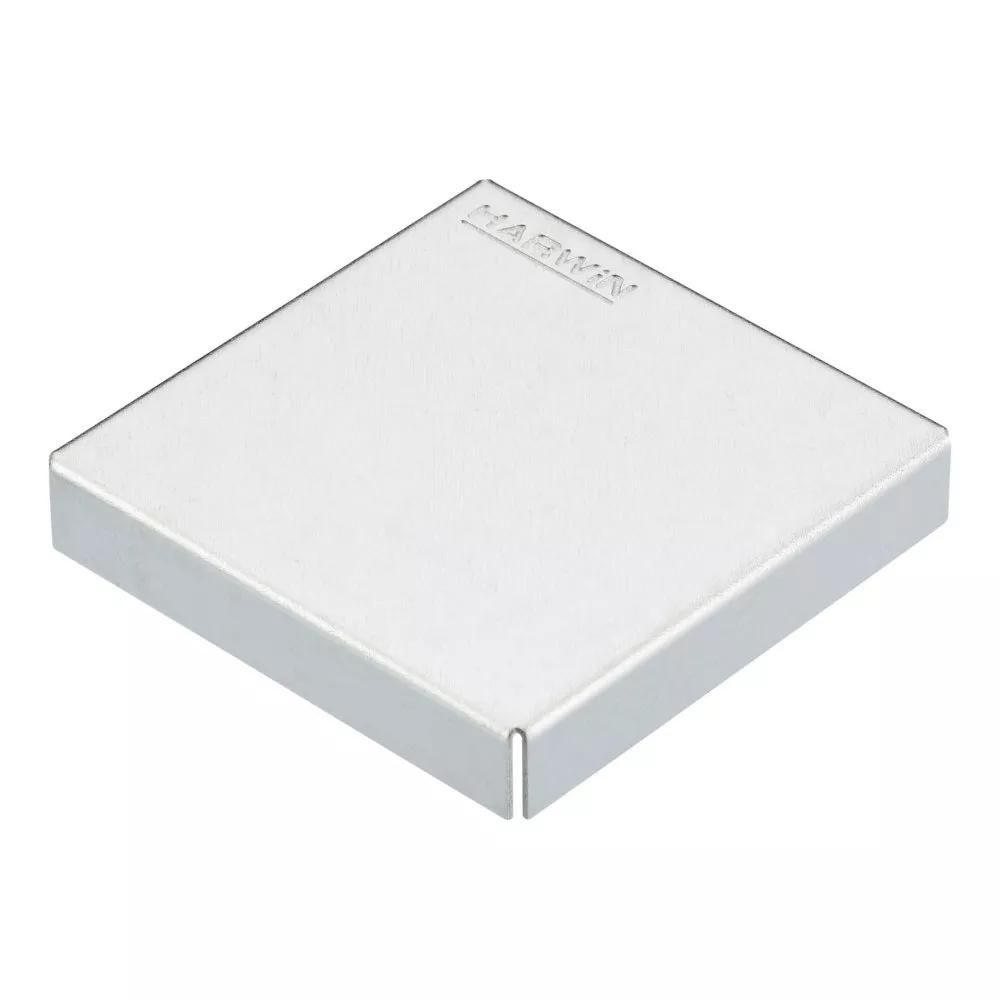

30x30mm RFI Shield Can, 0.3mm thickness

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • 30mm x 30mm, 5mm high, 0.3mm shield thickness.
  • Recommended for use with S1711-46R or S2711-46R Surface Mount Shield Clips.
  • Easy to use and rework – no additional soldering operations required.

Technical Details

Specification

Contact Gender:

Accessory

Connection Type:

With SMT Shield Clips

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

3.765g

Overall Dimensions (L x W x D) in mm:

30.30 x 30.30 x 5.30
