S0921-46R

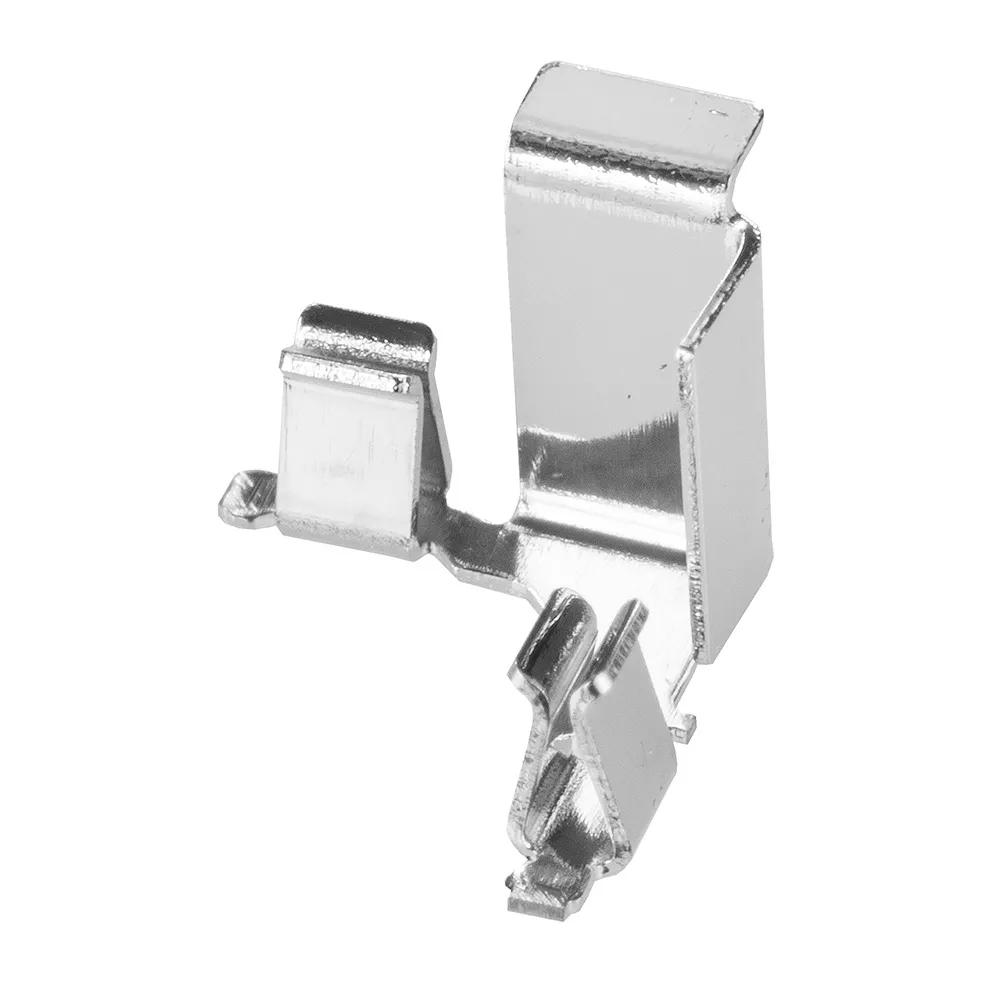

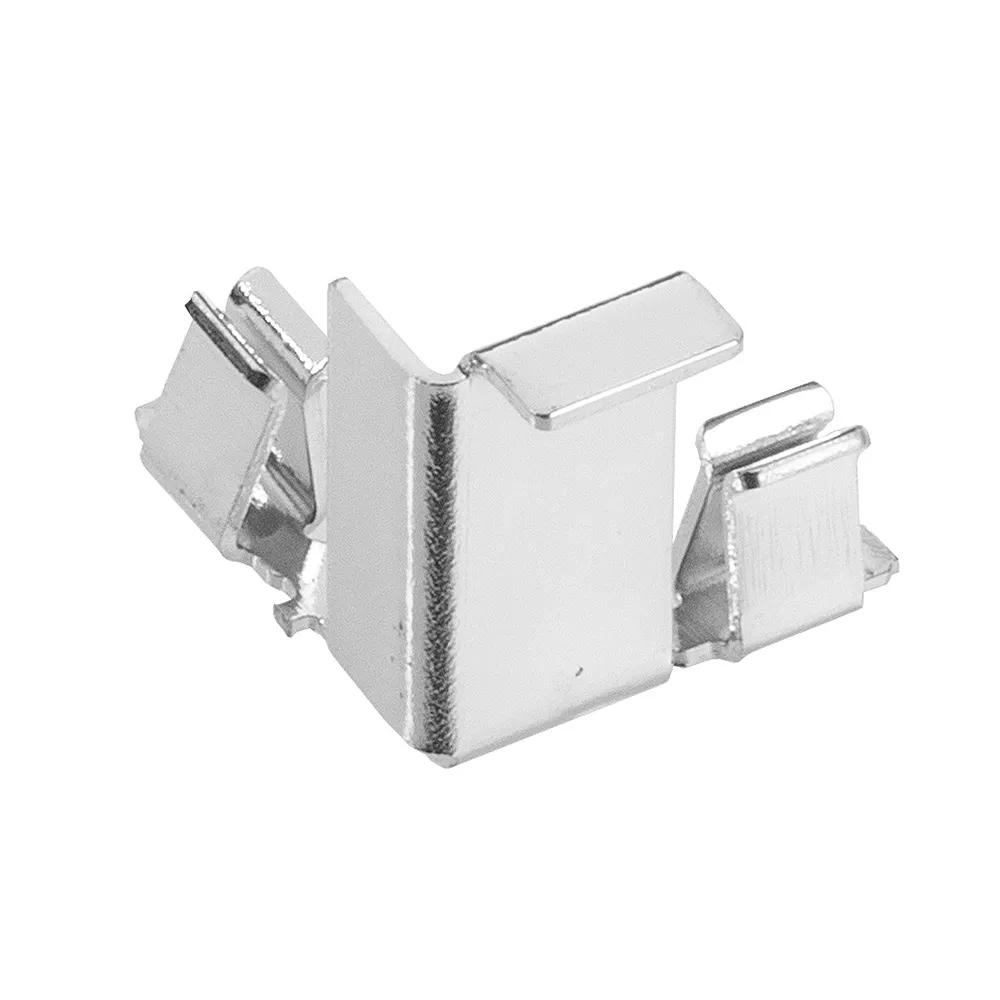

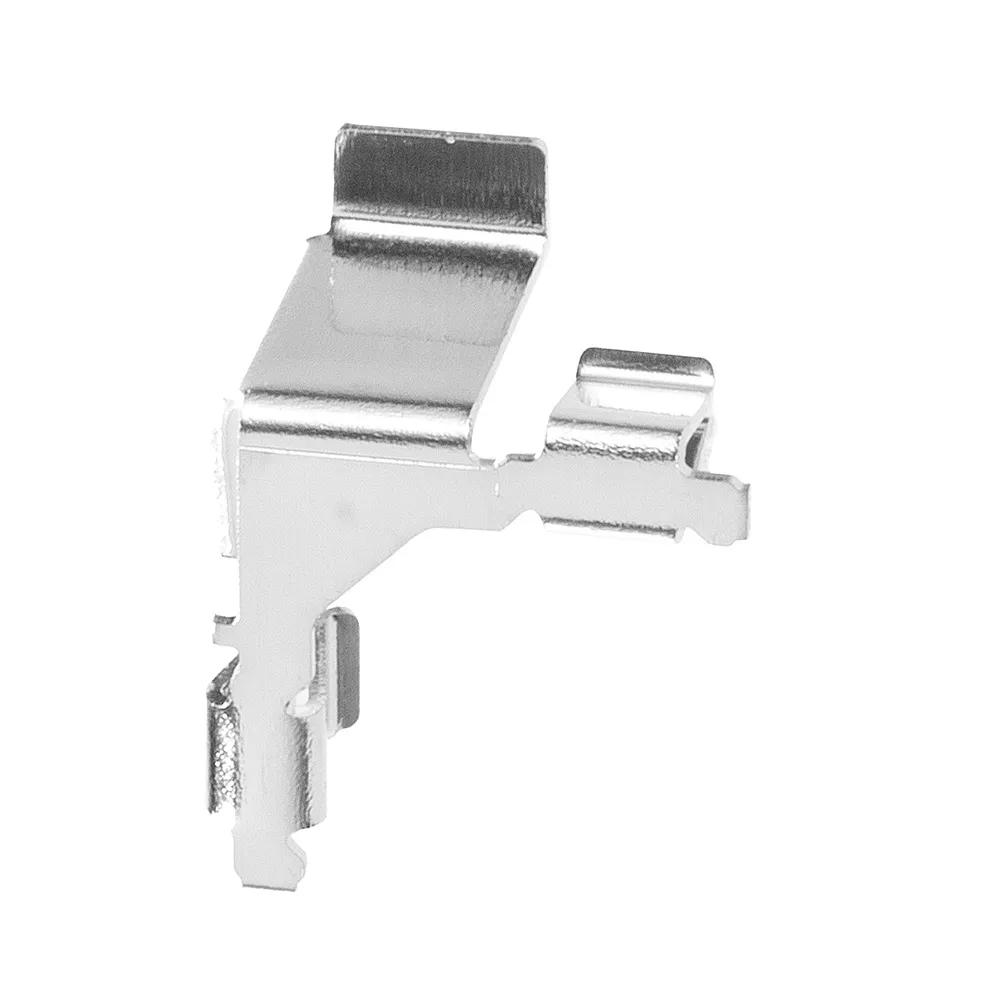

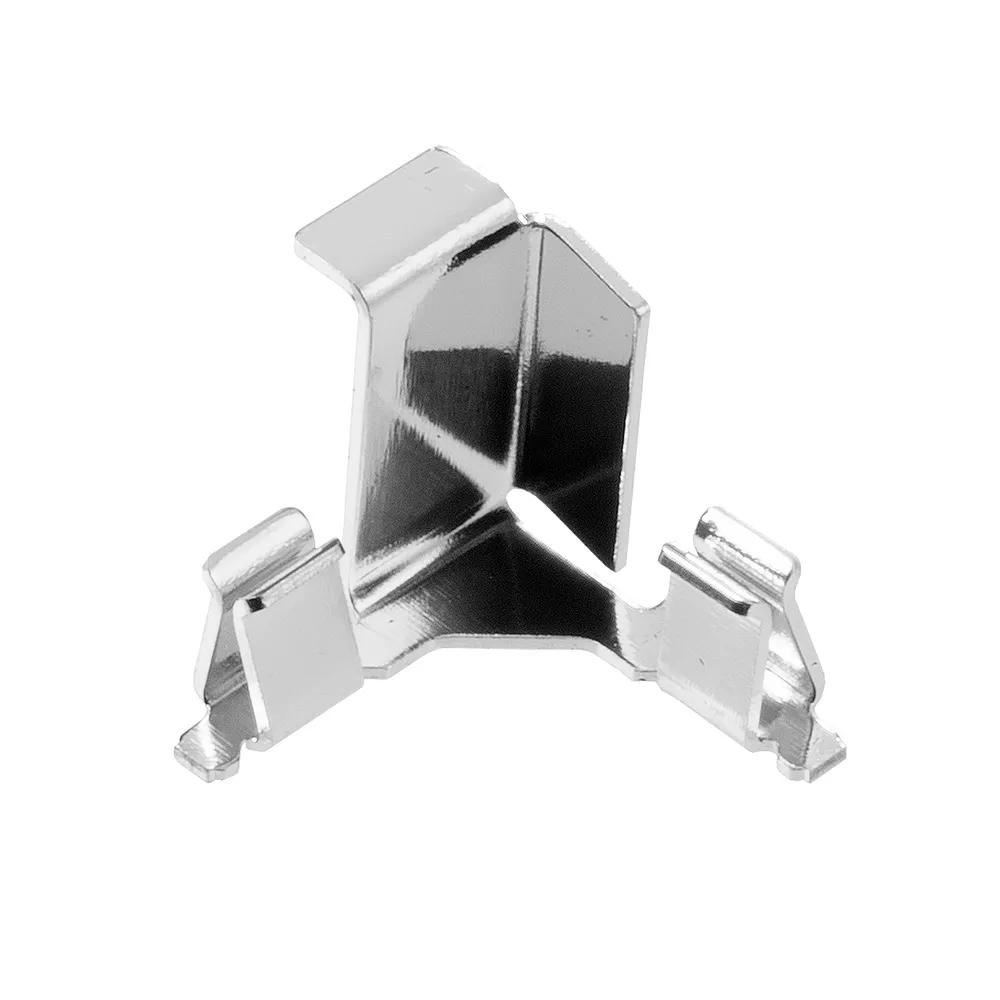

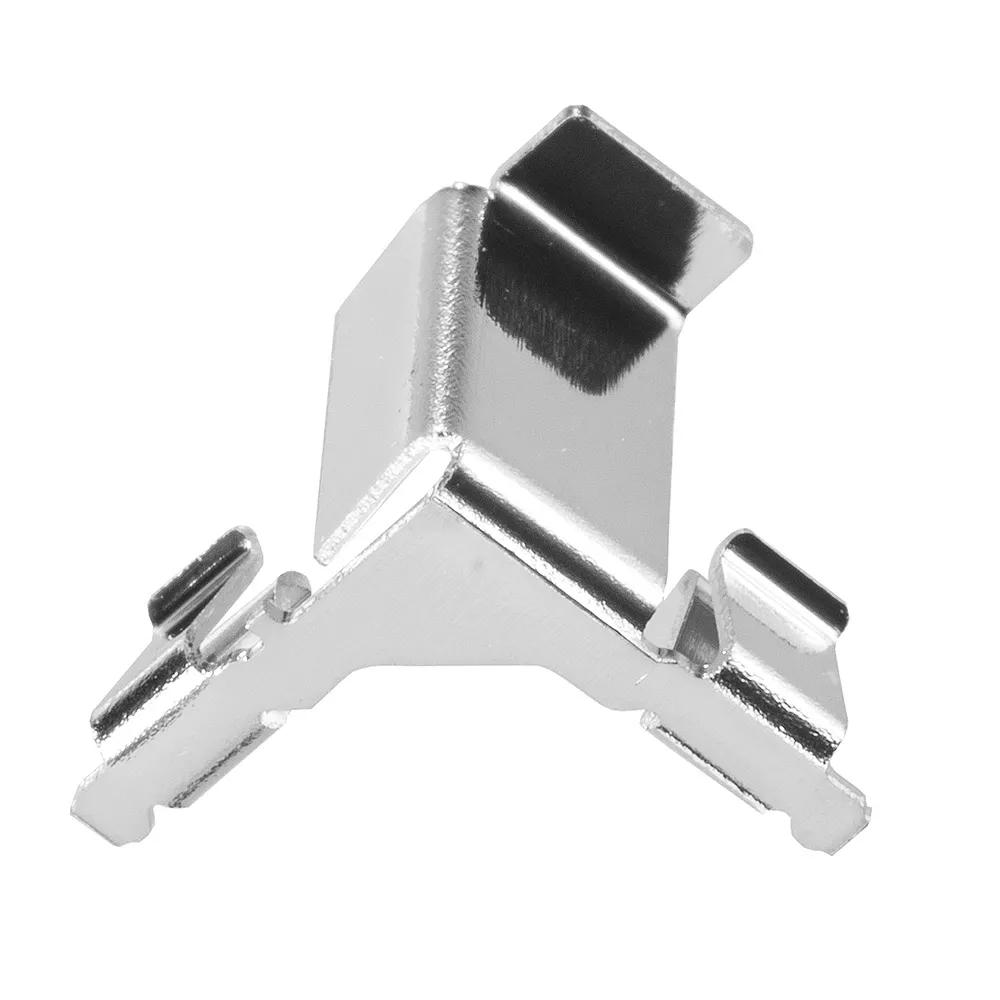

SMT RFI Shield Clip, Corner with Shield (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Corner type (5.65mm long, 5.45mm high), for shield thickness 0.3-0.4mm.
  • Additional corner shield feature. Packaged in Tape & Reel for automated placement.
  • Recommended for use with S01-30200500, S01-30300500 or S01-50250500 Shield Cans.

Technical Details

Specification

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-55°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Cupro-Nickel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.089g

Overall Dimensions (L x W x D) in mm:

5.65 x 5.65 x 5.45

Height of Connector above PCB:

5.45mm

Availability

Distributor Location Quantity
Anglia
Europe
Status50
Digi-Key
Global
Status2838
Farnell
Europe
Status2200
Harwin
Europe
Status1200
Mouser Electronics Inc
Global
Status2818
Newark
USA
Status2200
TTI Europe
Europe
Status1800

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this helpful?

63% found this helpful
