EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

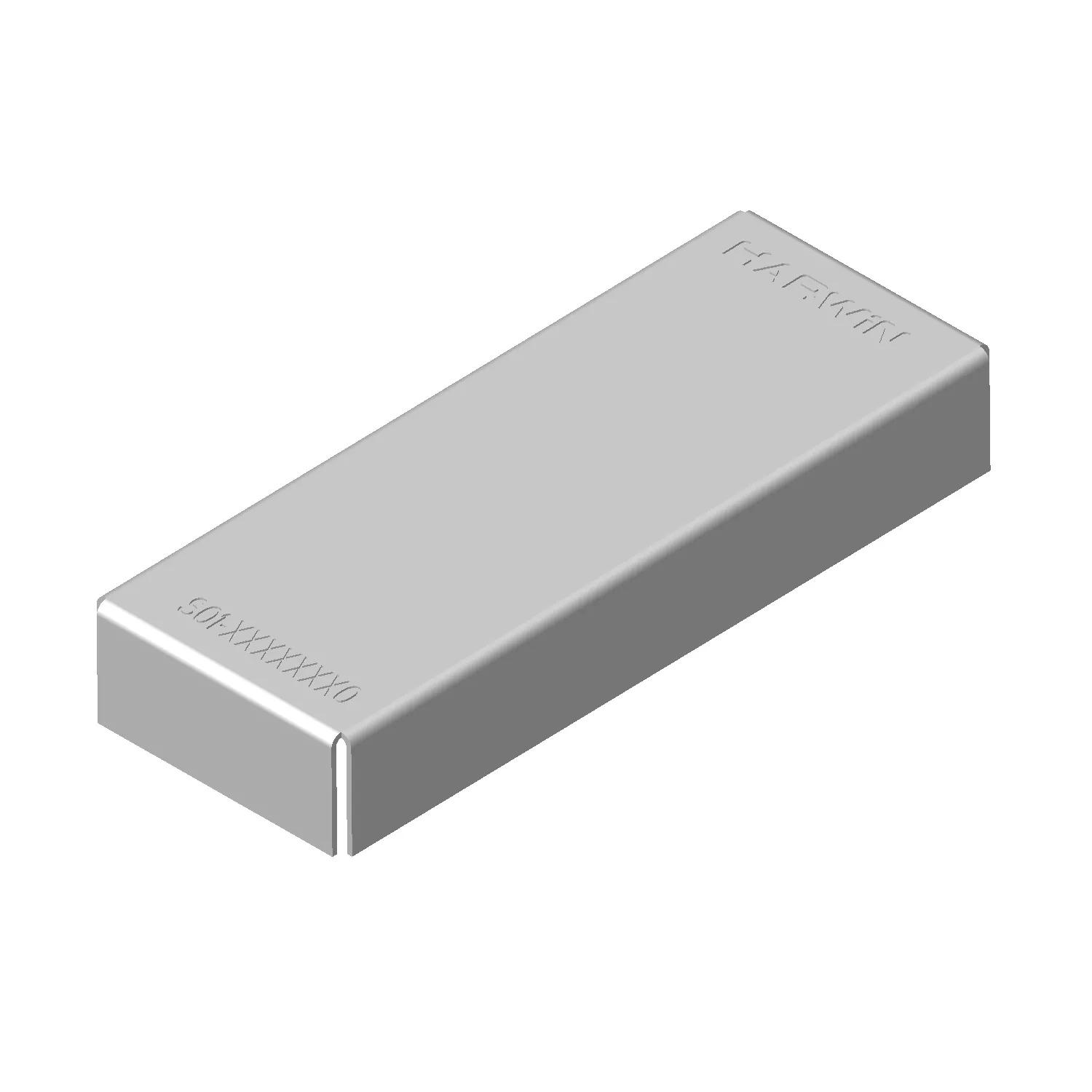

40mm x 15mm, 6mm high, 0.3mm shield thickness.
Recommended for use with S1711-46R, S2711-46R, S0971-46R or S0921-46R Surface Mount Shield Clips.
Easy to use and rework - no additional soldering operations required.
View Technical Details & Downloads
Checking stock availability...
Check Availability
Related Products
Further Details
Jump To:
Product Characteristics
Materials
Dimensions
Product Information
Technical Documentation
Environmental Compliance
Test Reports
Technical Details
Product Characteristics
Country of Origin:
GB
RoHS Status:
RoHS Compliant (2015/863/EU) with no Exemption required
Materials
Finish / Plating on Contact Surface:
Unplated
Base Material of Contact:
Nickel Silver
Packaging Style:
Bulk/Loose
Dimensions
Weight:
3.224g
Dimensions:
40.30 x 15.30 x 6.30
Downloads
SMT Shield Clips - graph of complete range of compatible can thicknesses and insertion force
Product Datasheet - SHIELDING: EMC Shielding range (EZi)
Product Training Module - EMC/RFI Shield Clips and Shield Cans
Technical Drawing / Datasheet - S01-XXXXXXX0.pdf
Outgassing data for Harwin products (plastics)
RoHS - S01-40150600
Material composition for S01-40150600 product
REACH - Harwin statement including all current SVHCs & Annex XIV & XVII
Environmental Legislation Statement - includes all material legislations
Extended Mineral Reporting Template (EMRT) - Company Summary Statement
Conflict Minerals Reporting Template (CMRT) - Company Summary Statement
