S01-50250500

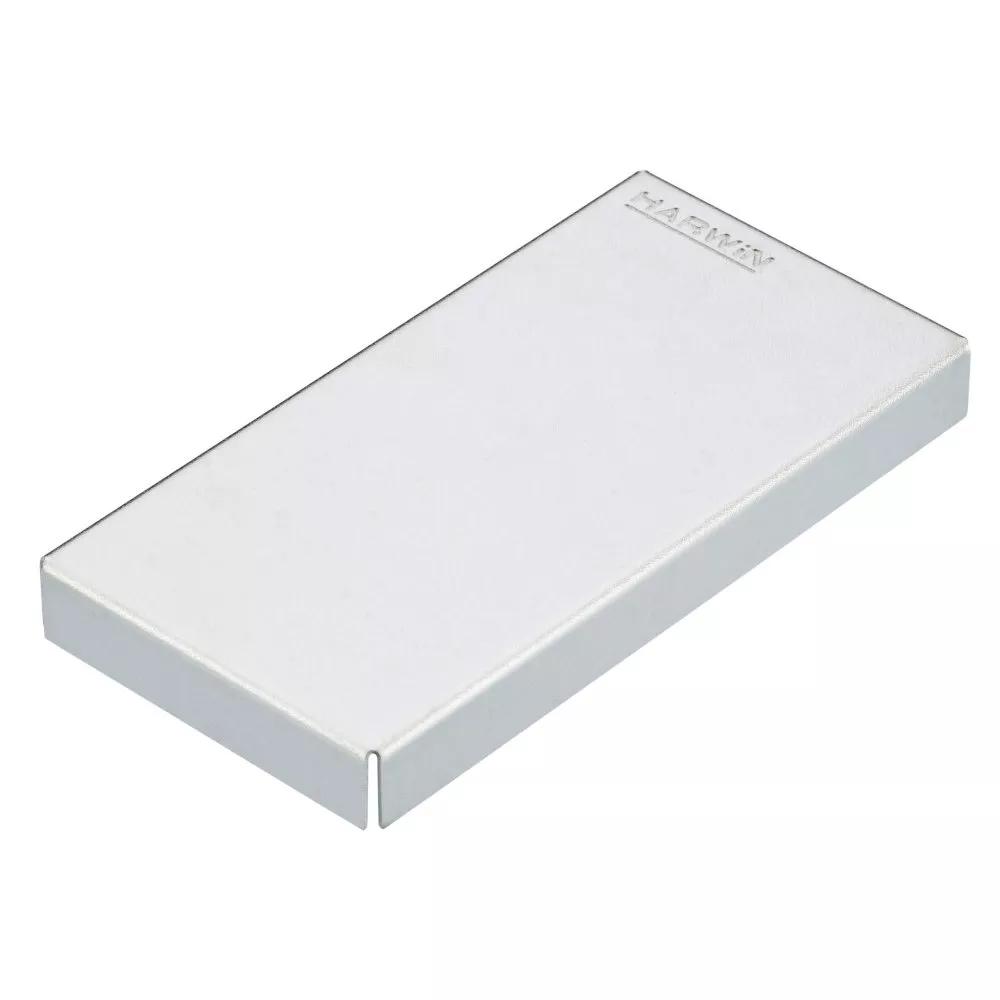

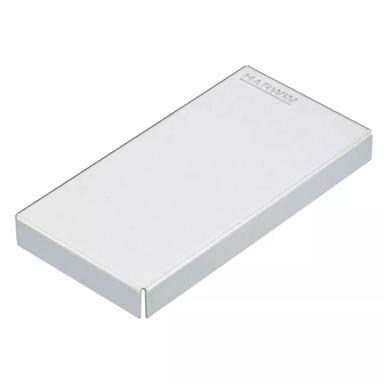

50x25mm RFI Shield Can, 0.3mm thickness

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • 50mm x 25mm, 5mm high, 0.3mm shield thickness.
  • Recommended for use with S1711-46R or S2711-46R Surface Mount Shield Clips.
  • Easy to use and rework – no additional soldering operations required.
Add to Favorites

Technical Details

Specification

Contact Gender:

Accessory

Connection Type:

With SMT Shield Clips

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

5.048g

Overall Dimensions (L x W x D) in mm:

50.30 x 25.30 x 5.30

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status2
Digi-Key
Global
Status623
Farnell
Europe
Status178
Harwin
Global
Status2400
Mouser Electronics Inc
Global
Status564
Newark
USA
Status138
TTI Europe
Europe
Status300

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Are these shield cans solderable, in an application where clips are not used?

These cans were not intended to be soldered, and as such have not been tested for solderability – they do not have a finish on them that would help with the soldering process, like as a tin finish. The material is a nickel/silver alloy, unplated. We can only recommend that you carry out your own testing to see if they can be soldered within your application.
