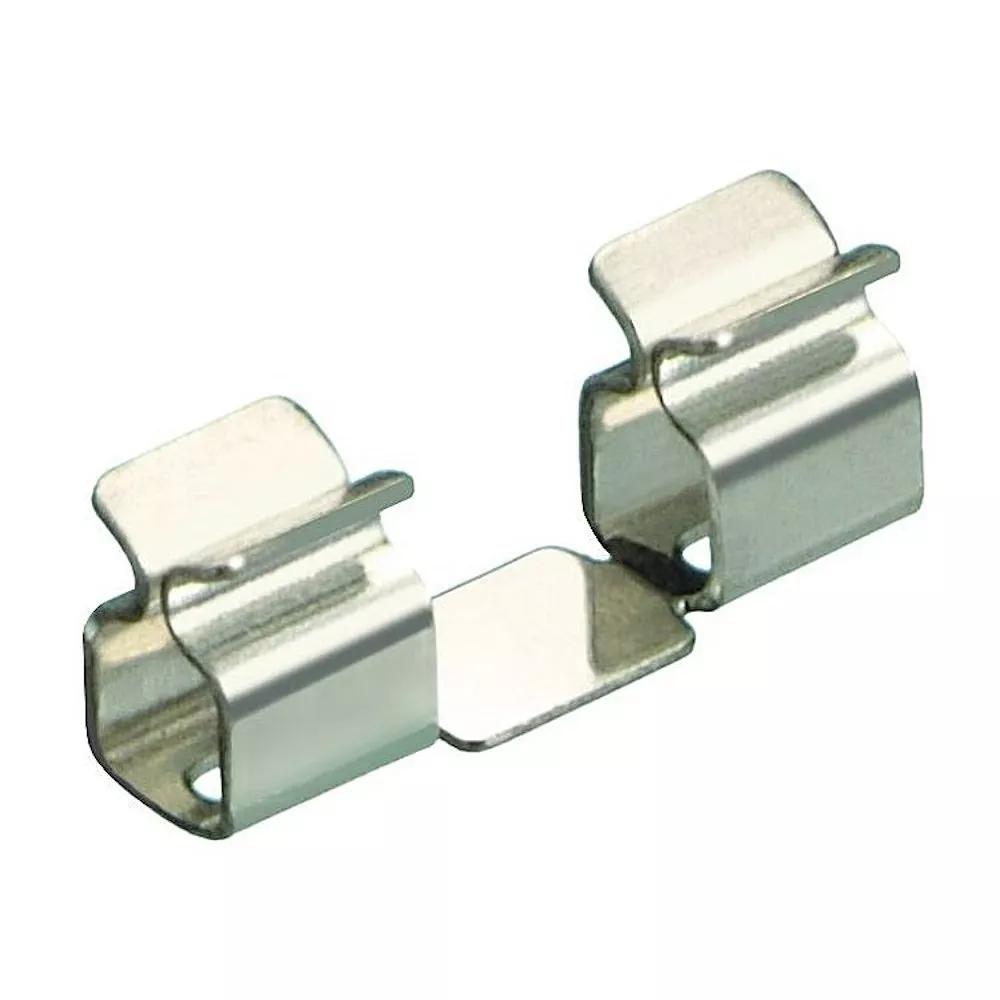

S2711-46R

SMT RFI Shield Clip, Midi (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • Midi size (8.8mm long, 3.8mm high), for 0.17-0.3mm shield thickness. Cupro-Nickel alloy as an alternative to Beryllium Copper. Tin finish on contact area and termination.
  • Packaged in Tape & Reel for automated placement.
  • Recommended for use with S01-30200500, S01-30300500 or S01-50250500 Shield Cans.
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Cupro-Nickel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.106g

Overall Dimensions (L x W x D) in mm:

8.79 x 2.28 x 3.55 max

Height of Connector above PCB:

3.50mm

Availability

335,031 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 119700
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 93792
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 55100
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 29588
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 26600
Distributor Anglia
Location Europe
Quantity (Updated Daily) 3373
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1900
Distributor Newark
Location USA
Quantity (Updated Daily) 1900
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1539
Distributor Newark
Location USA
Quantity (Updated Daily) 1539

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S2711-46R.pdf

ZIP

S2711-46R CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S2711 series

INSTRUCTION SHEETS

PDF

Product Training Module - EMC/RFI Shield Clips and Shield Cans

OTHER DOWNLOADS

PDF

3D PDF file - S2711-46R_3D.pdf

PDF

Catalog page - RFI Shield Clips (Maxi, Midi, Mini)

PDF

Catalog page - RFI Shield Clips Summary, Shield Can Specifications

PDF

Catalog page - EMC Shielding Introduction

PDF

Product Summary - EMC Shielding, SMT Clips and Cans
