Industry Compatible Connectors

Harwin’s Industry Standard PCB Connectors conform to current conventions for Pin Header and Socket systems. This range brings all the confidence associated with Harwin products:

  • Confidence in Supply – These ranges are stocked throughout the Harwin supply network, and are a core product from Harwin.
  • Confidence in Quality – Harwin are world-renowned for their standard of product, compared to other industry leaders.
  • Confidence in Service – Harwin offers full technical support, with a fast turnaround of samples.

Range Features:

  • Selection of industry-standard connector pitches - from 1mm up to 2.54mm
  • Twin-beam connections for female sockets
  • Tape and Reel packaging available for all Surface Mount connectors, for automated assembly systems
  • Cable options at all pitch sizes except 1mm
  • Jumper sockets for programming capabilities at 2.54mm, 2mm and 1.27mm pitch
  • Customizable Pin Header Variants available in 2.54mm, 2mm and 1.27mm pitch
  • NEW High-performance 1.27mm pitch Archer Kontrol - designed for demanding industrial applications
  • Stocked in depth and competitively priced throughout the Harwin Authorized Distributor network

Industry Standard Connectors - Archer 1.27mm pitch

The new Cable Assembly Service is available for this range as a value-added service - contact us for more information.

What is a PCB Connector?

Printed Circuit Board connectors are connection systems mounted on PCBs. Typically PCB Connectors are used to transfer signals or power from one PCB to another, or to or from the PCB from another source in the equipment build. They provide an easy method of Design for Manufacture, as the PCBs are not hard-wired to each other and can be assembled later in a production process.

PCB Connector orientations

The term PCB Connector refers to a basic multipin connection system, typically in a rectangular layout. A mating pair of PCB Connectors will either be for board-to-board or cable-to-board (wire-to-board). The board-to-board layouts can give a range of PCB connection orientations, all based on 90 degree increments:

  • Parallel or mezzanine – both connectors are vertical orientation;
  • 90 Degree, Right Angle, Motherboard to Daughterboard – one connector is vertical, one horizontal;
  • 180 Degree, Coplanar, Edge-to-Edge – both connectors are horizontal orientation.

Other names for PCB Connectors

PCB Connectors can be known as PCB Interconnect product. Specific terms are also used for the two sides of the connection. Male PCB Connectors are often referred to as Pin Headers, as they are simply rows of pins. Female PCB Connectors can be called Sockets, Receptacles, or even (somewhat confusingly) Header Receptacles.

Use the selection boxes above to find these Product Options.

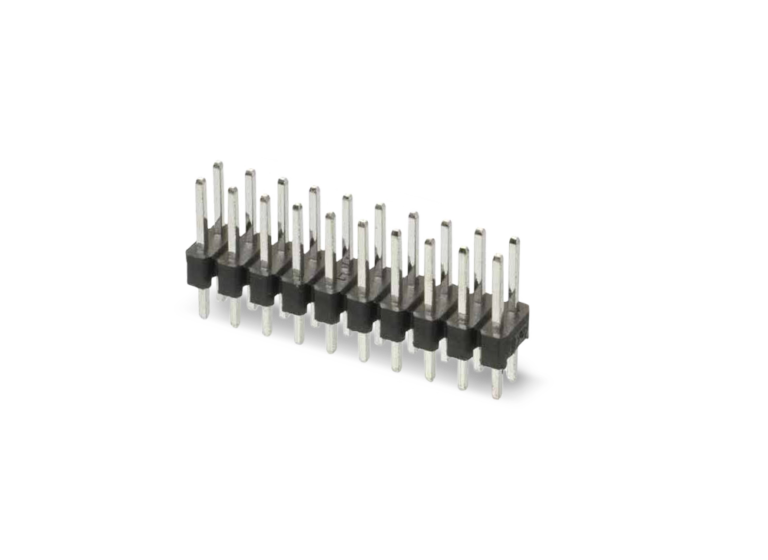

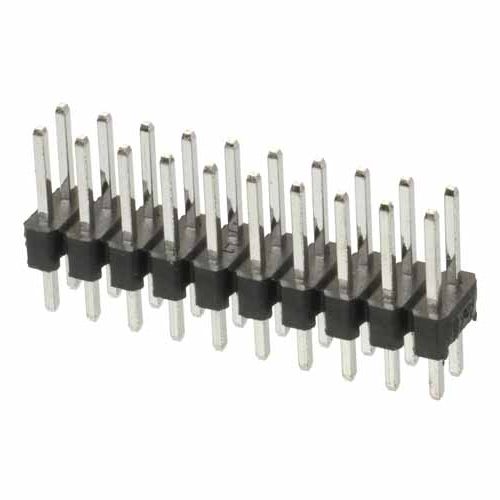

2.54mm (0.1") Pitch Connectors - M20 Series

with 0.64mm square male pins

Female
  • Vertical PC Tail/Throughboard
  • Horizontal PC Tail/Throughboard
  • Vertical Surface Mount
  • Horizontal Surface Mount
  • Cable Contacts
  • Cable Housings
Male
  • Vertical PC Tail/Throughboard
  • Horizontal PC Tail/Throughboard
  • Vertical Surface Mount
  • Horizontal Surface Mount
  • Pin Header Variants (customizable pin lengths)
Other
  • Jumper Sockets
  • Polarising Pegs
  • PC/104 Connectors

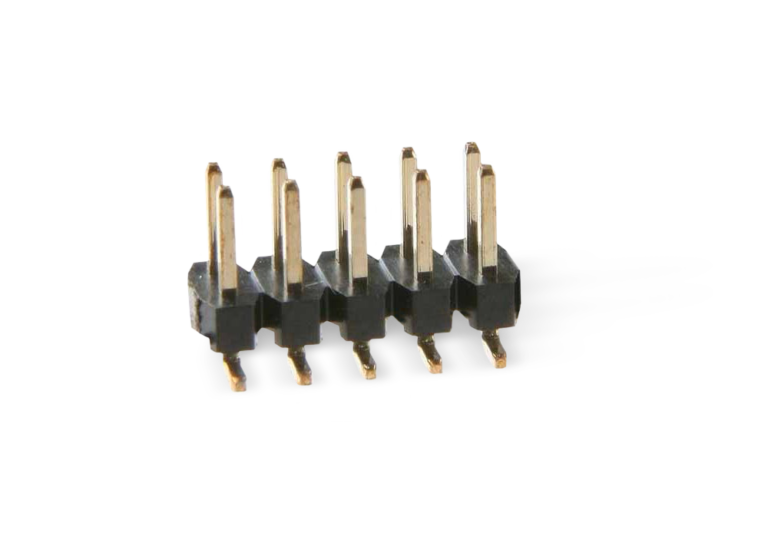

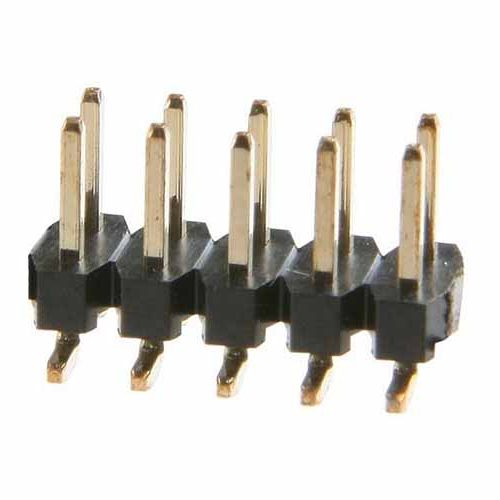

2.00mm (0.079") Pitch Connectors - M22 Series

with 0.5mm square male pins

Female
  • Vertical PC Tail/Throughboard
  • Vertical Surface Mount
  • Horizontal Surface Mount
  • Cable Contacts
  • Cable Housings
Male
  • Vertical PC Tail/Throughboard
  • Horizontal PC Tail/Throughboard
  • Vertical Surface Mount
  • Horizontal Surface Mount
  • Pin Header Variants (customizable pin lengths)
Other
  • Jumper Sockets
  • Polarising Pegs
  • PC/104 Plus Connectors

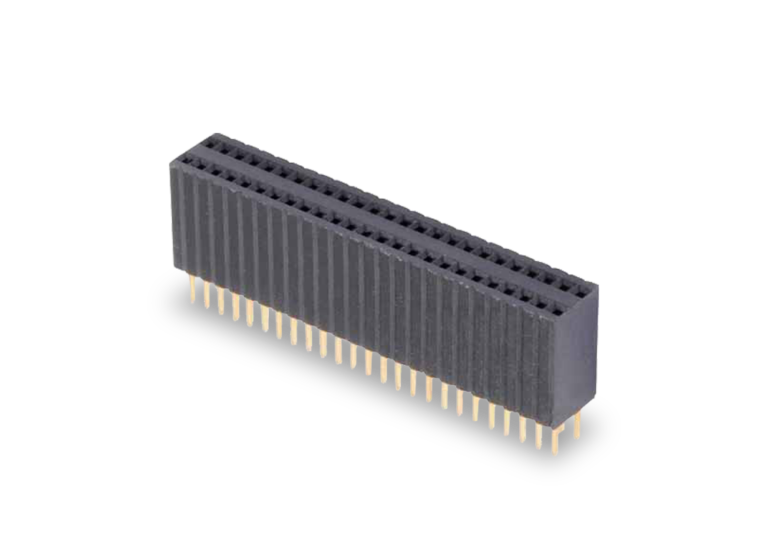

1.27mm (0.05") Pitch Connectors - Archer

Archer Kontrol

M55 Series

1.27 x 1.27mm grid

Female
  • Vertical Surface Mount
  • Horizontal Surface Mount
Male
  • Vertical Surface Mount
  • Horizontal Surface Mount


M50 Series

1.27 x 1.27mm grid

0.40mm sq. male pins

Female
  • Vertical PC Tail/Throughboard
  • Vertical Surface Mount
  • IDC Cable Connectors
Male
  • Vertical PC Tail/Throughboard
  • Horizontal PC Tail/Throughboard
  • Vertical Surface Mount
  • IDC Cable Connectors
  • Latching Connectors
  • Pin Header Variants (customizable pin lengths)
Other
  • Jumper Sockets
  • IDC Cable Assemblies (female-to-female, male-to-female)

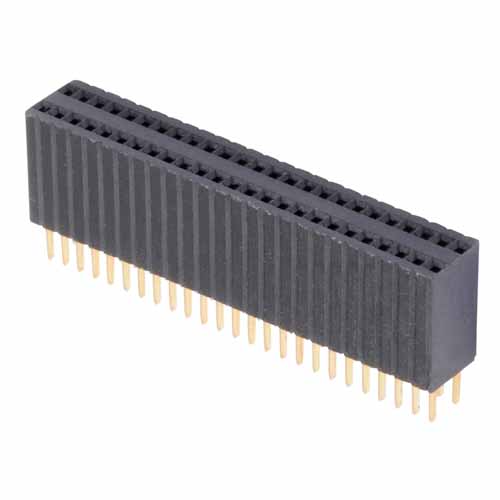

M52 Series

1.27 x 2.54mm grid

0.46mm sq. male pins

Female
  • Vertical PC Tail/Throughboard
  • Vertical Surface Mount
Male
  • Vertical PC Tail/Throughboard
  • Vertical Surface Mount
  • Pin Header Variants (customizable pin lengths)

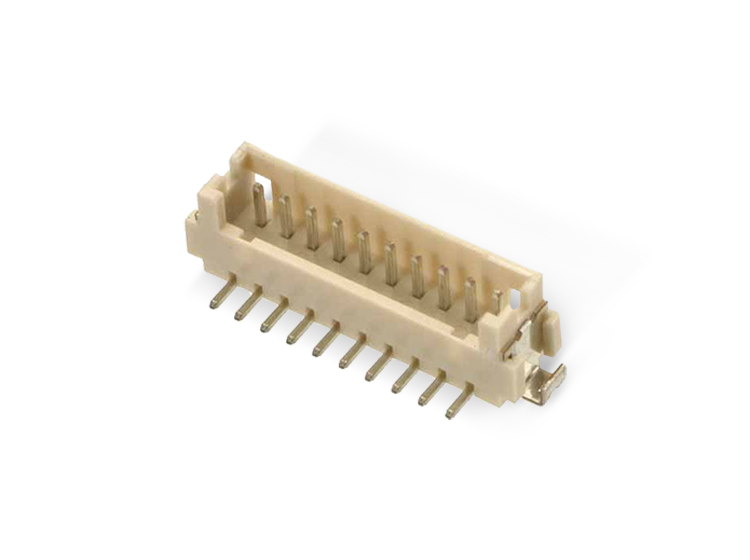

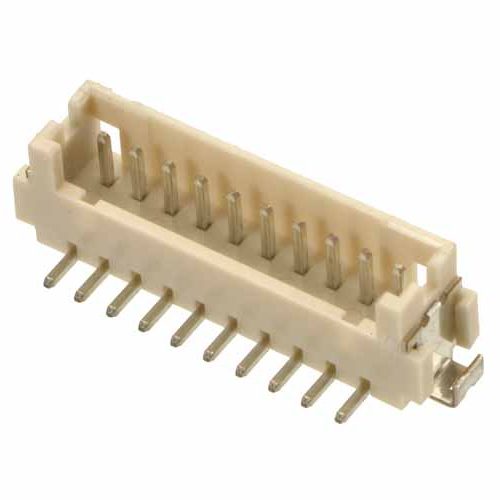

1.25mm (0.049") Pitch Connectors - M30 Series

with 0.35mm square male pins

Female
  • Cable Contacts
  • Cable Housings
Male
  • Vertical PC Tail/Throughboard
  • Vertical Surface Mount
Other
  • Pre-Cabled Contacts at set lengths

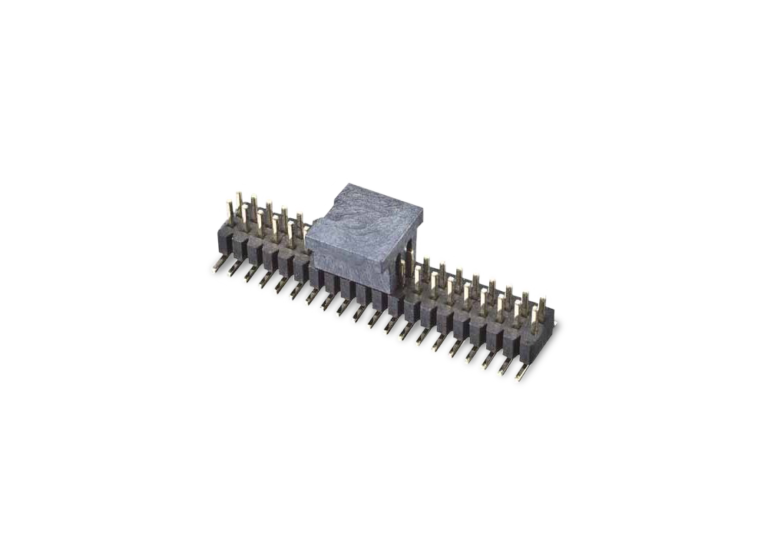

1.00mm (0.039") Pitch Connectors - M40 Series

Female
  • Vertical Surface Mount
  • Pin Header style (for 0.3mm square male pins) and Fine Pitch style (single beam contact)
  • Cable Contacts
  • Cable Housings
  • Pre-cabled Contacts (individual contacts with a single wire assembled)
Male
  • Vertical Surface Mount
  • Pin Header style (0.3mm square pins), Fine Pitch style (single beam contact), and Cable-to-Board mating connectors



The following information is highlights from the Industry Standard performance characteristics. For the complete Component Specification for a particular range, download the relevant document from the Literature tab.



2.54mm (0.1") Pitch Connectors - M20 Series

Materials Female Contacts Phosphor Bronze, Gold or Tin (over Nickel) finish
Male Contacts Copper Alloy, Gold or Tin (over Nickel) finish
Housings Standard or High Temperature Plastic, rated to UL94V-0
Electrical Current 3A per contact
Maximum Voltage 800V AC, 500V DC
Contact Resistance 30mΩ max
Insulation Resistance 1,000MΩ min
Environmental Operating Temperature -40°C to +105°C
Mechanical Durability (Gold finish) 300 mating cycles
Durability (Tin finish) 50 mating cycles
Insertion force 2N max per contact
Withdrawal Force 0.3N min per contact



2.00mm (0.079") Pitch Connectors - M22 Series

Materials Female Contacts Phosphor Bronze, Gold or Tin (over Nickel) finish
Male Contacts Copper Alloy, Gold or Tin (over Nickel) finish
Housings Standard or High Temperature Plastic, rated to UL94V-0
Electrical Current 1A or 2A per contact
Maximum Voltage 500V AC
Contact Resistance 30mΩ max
Insulation Resistance 500MΩ min
Environmental Operating Temperature -40°C to +105°C (-25°C to +85°C for cable connectors)
Mechanical Durability 300 mating cycles
Durability (cable connectors) 25 mating cycles
Insertion force 2N max per contact (2.9N max for cable connectors)
Withdrawal Force 0.2N min per contact



1.27mm (0.05") Pitch Connectors - Archer Kontrol (M55 Series)

Materials Contacts Phosphor Bronze, Selective Gold + Tin (over Nickel) finish
Housings High Temperature Plastic, rated to UL94V-0
Electrical Current 1.2A per contact
Maximum Voltage 1,000V
Contact Resistance 25mΩ max
Insulation Resistance 10GΩ min
Environmental Operating Temperature -55°C to +125°C
Mechanical Durability 500 mating cycles



1.27mm (0.05") Pitch Connectors - Archer M50 and M52 Series

Materials Contacts Copper Alloy, Gold or Tin (over Nickel) finish
Housings High Temperature Plastic, rated to UL94V-0
Electrical Current 1A per contact (0.5A per contact for Male IDC connector)
Maximum Voltage 300Vto 1,000V (see individual connector)
Contact Resistance 30mΩ max
Insulation Resistance 500MΩ min (5MΩ min for IDC ribbon cable)
Environmental Operating Temperature -40°C to +105°C (varies for IDC cable connectors)
Mechanical Durability 25 to 600 mating cycles (see individual connector)



1.25mm (0.049") Pitch Connectors - M30 Series

Materials Female Contacts Phosphor Bronze, Tin (over Nickel) finish
Male Contacts Brass, Tin (over Nickel) finish
Housings Nylon (Polyamide) 6T or 66, rated to UL94V-0
Electrical Current 1A per contact
Maximum Voltage 500V AC/DC
Contact Resistance 30mΩ max
Insulation Resistance 500MΩ min
Environmental Operating Temperature -25°C to +85°C
Mechanical Durability 50 mating cycles
Insertion force 4.9N max per contact
Withdrawal Force 0.5N min per contact



1.00mm (0.039") Pitch Connectors - M40 Series

Materials Female Contacts Phosphor Bronze, Gold or Tin (over Nickel) finish
Male Contacts Copper Alloy, Gold or Tin (over Nickel) finish
SMT Housings High Temperature Plastic, rated to UL94V-0
Cable Housings Polyamide (Nylon) 66, rated to UL94V-0
Electrical Current 0.5A or 1A per contact
Maximum Voltage 250V AC or 500V AC
Contact Resistance 50mΩ max
Insulation Resistance 500MΩ min
Environmental Operating Temperature Range dependent - consult individual products
Mechanical Durability (Gold finish) 300 mating cycles
Durability (Tin finish) 30 mating cycles



Catalog section for the range - Connectors - Product Catalog

2.54mm (0.1") Pitch Connectors - M20 Series

Component Specification
Catalog pages
Product Training Module
Outgassing figures Outgassing data list



2.00mm (0.079") Pitch Connectors - M22 Series

Component Specification
Catalog pages
Product Training Module
Outgassing figures Outgassing data list



1.27mm (0.05") Pitch Connectors - Archer

Component Specification
Catalog pages
Product Training Module
Outgassing figures Outgassing data list



1.25mm (0.049") Pitch Connectors - M30 Series

Component Specification C025XX - M30 Series Connectors
Catalog pages Fine Pitch - Product Catalog
Product Training Module Fine Pitch Connectors Overview
Outgassing figures Outgassing data list



1.00mm (0.039") Pitch Connectors - M40 Series

Component Specification C026XX - M40 Series Connectors
Catalog pages Fine Pitch - Product Catalog
Product Training Module Fine Pitch Connectors Overview
Outgassing figures Outgassing data list
