S01-30200500

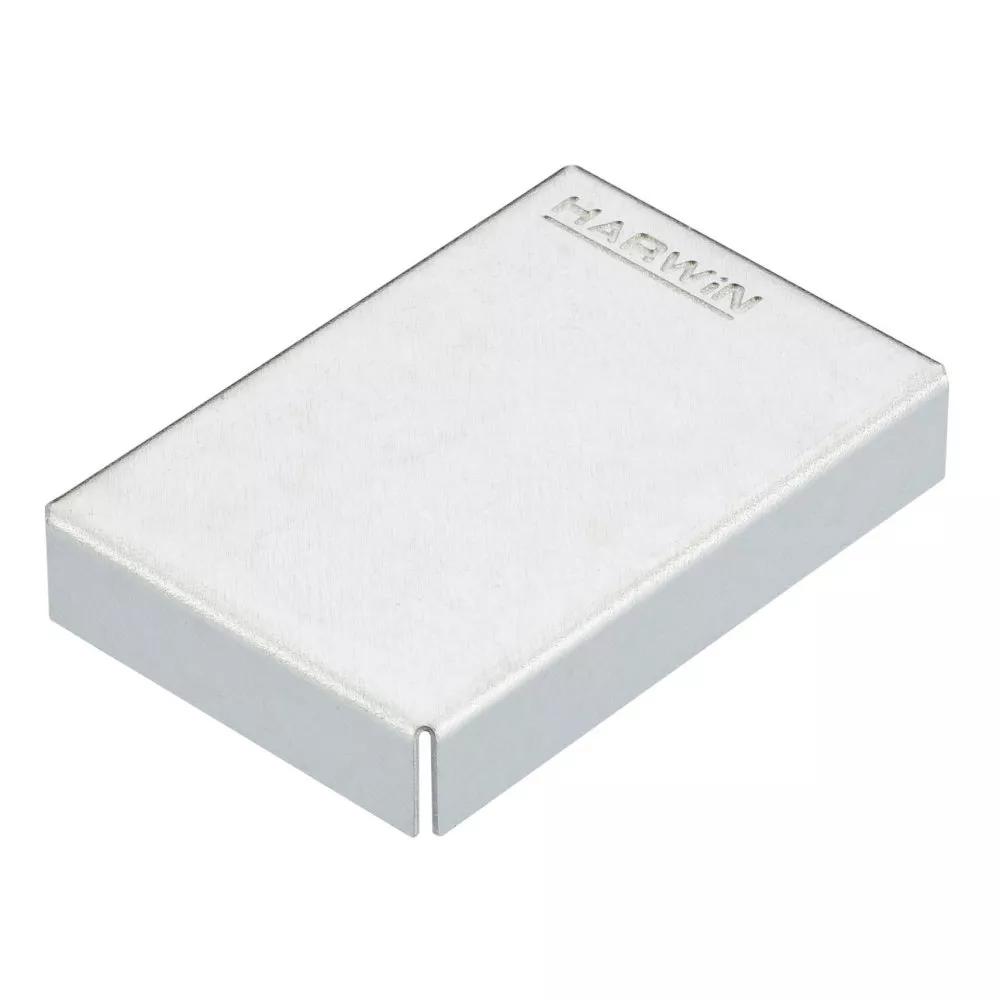

30x20mm RFI Shield Can, 0.3mm thickness

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

  • 30mm x 20mm, 5mm high, 0.3mm shield thickness.
  • Recommended for use with S1711-46R or S2711-46R Surface Mount Shield Clips.
  • Easy to use and rework – no additional soldering operations required.
Add to Favorites

Technical Details

Specification

Connection Type:

With SMT Shield Clips

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

2.736g

Overall Dimensions (L x W x D) in mm:

30.30 x 20.30 x 5.30

Availability

5,431 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1396
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1277
Distributor Newark
Location USA
Quantity (Updated Daily) 1177
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 780
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 691
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 100
Distributor Anglia
Location Europe
Quantity (Updated Daily) 10

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Are these shield cans solderable, in an application where clips are not used?

These cans were not intended to be soldered, and as such have not been tested for solderability – they do not have a finish on them that would help with the soldering process, like as a tin finish. The material is a nickel/silver alloy, unplated. We can only recommend that you carry out your own testing to see if they can be soldered within your application.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S01-XXXXXXX0.pdf

ZIP

S01-30200500 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for S01-30200500 product

INSTRUCTION SHEETS

PDF

Product Training Module - EMC/RFI Shield Clips and Shield Cans

OTHER DOWNLOADS

PDF

3D PDF file - S01-30200500_3D.pdf

PDF

Catalog page - RFI Shield Cans

PDF

Catalog page - RFI Shield Clips Summary, Shield Can Specifications

PDF

Catalog page - EMC Shielding Introduction

PDF

Product Summary - EMC Shielding, SMT Clips and Cans
