P25-0423

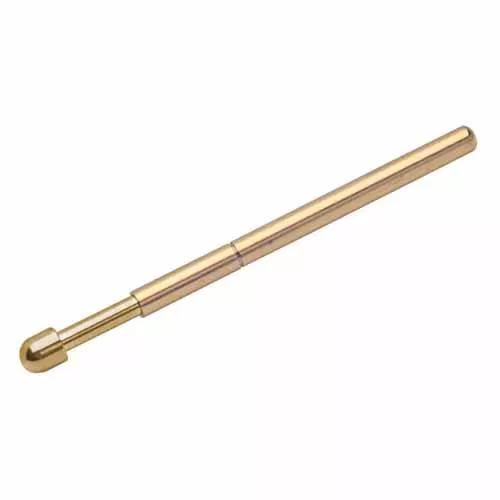

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.8mm Spherical Radius Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-022, S25-212 or S25-512.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.194g

Overall Dimensions (L x W x D) in mm:

24.70 x Ø1.80

Availability

6,249 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3170
Distributor Newark
Location USA
Quantity (Updated Daily) 1290
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 589
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 504
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 500
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 196

Questions & Answers Ask a Question

Is there a recommended insertion tool that I can use with S25-022 and P25-0423?

We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the S25-022 sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.

S25-022 and P25-0423 – Which item contains the spring?

The Probe is the P25-0423 part – this is the item with the internal spring. The Sleeve is S25-022 – it’s basically a hollow tube used to mount the probe to the PCB or test bed.

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
