S25-512

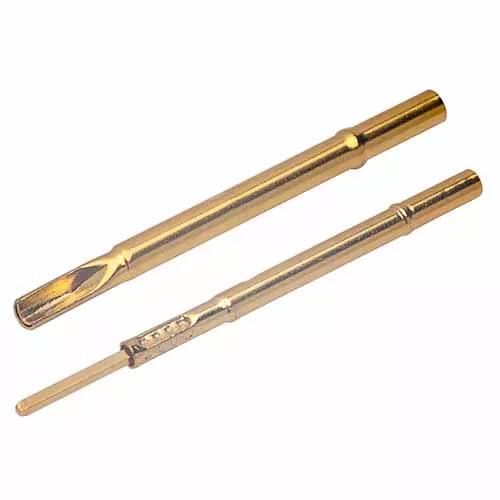

ATE Spring Probe Sleeve for Two-Part Probe, 2.54mm Centres

ATE Spring Probe Receptacle, Test Probe Sleeve

Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Cable Conductor Size:

30AWG

Current Rating:

Dependent on assembled probe

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.156g

Overall Dimensions (L x W x D) in mm:

23.70 x Ø1.83

Availability

5,511 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2851
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1248
Distributor Anglia
Location Europe
Quantity (Updated Daily) 500
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 500
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 404
Distributor Newark
Location USA
Quantity (Updated Daily) 8

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - S25-XX2.pdf

ZIP

S25-512 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for S25-512 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)

PDF

IS-41 - ATE Spring Probes Instruction Sheet

OTHER DOWNLOADS

PDF

ATE Test Probes - graph of complete range of heights and compression
