P25-5223

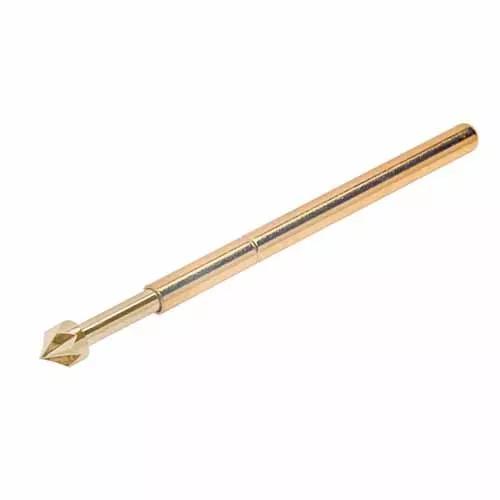

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.8mm Star Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-022, S25-212 or S25-512.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.185g

Overall Dimensions (L x W x D) in mm:

24.70 x Ø1.80

Availability

8,667 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2592
Distributor Farnell
Location Europe
Quantity (Updated Daily) 1676
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1496
Distributor Newark
Location USA
Quantity (Updated Daily) 923
Distributor Anglia
Location Europe
Quantity (Updated Daily) 500
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 500
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 500
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 475
Distributor Genalog
Location Europe
Quantity (Updated Daily) 5

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c
