S25-212

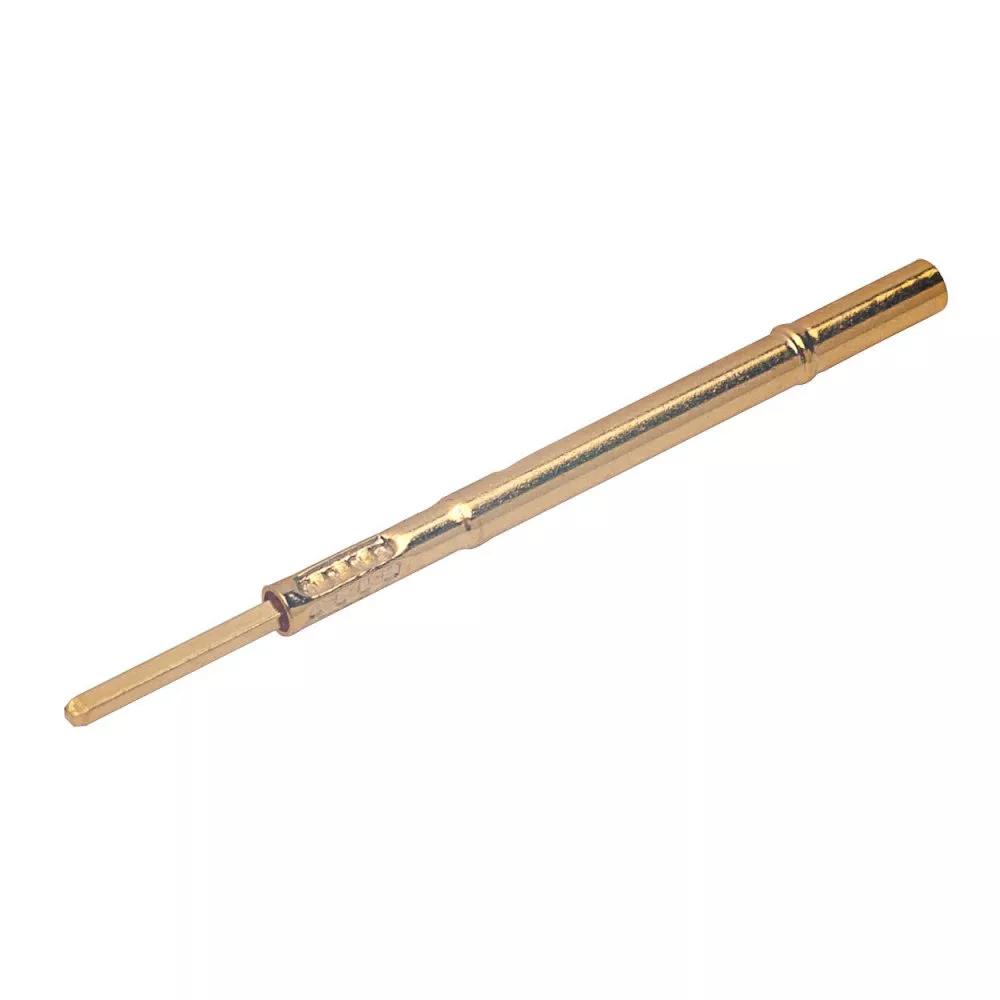

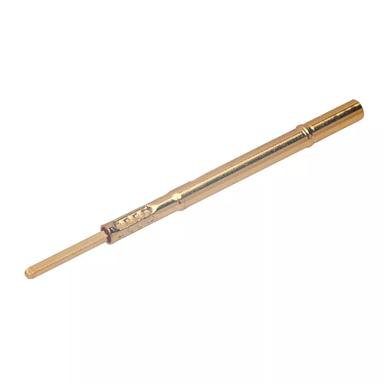

ATE Spring Probe Sleeve for Two-Part Probe, 2.54mm Centres

ATE Spring Probe Receptacle, Test Probe Sleeve

Add to Favorites

Loading…   Check availability

2 similar products View products

Traceparts account required

Product Description

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

Dependent on assembled probe

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Materials

Finish / Plating on Termination:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.2g

Overall Dimensions (L x W x D) in mm:

30.70 x Ø1.83

Frequently Asked Questions Ask a Question

Is there a recommended insertion tool that I can use with the ATE probes and sleeves?

We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS

How can we help you?

If you would like to talk to someone about Harwin’s product, technical knowledge or documentation, contact one of our Experts for assistance.


Contact us
