P25-1223

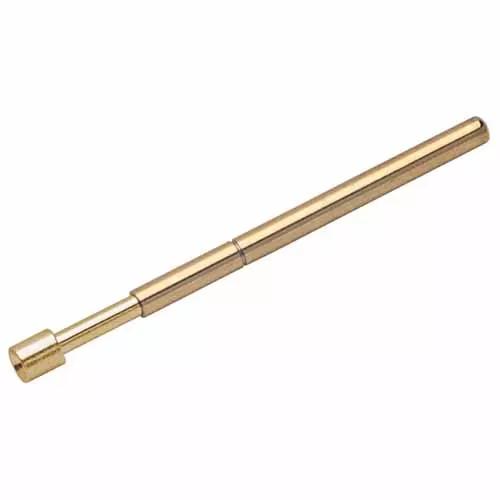

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.8mm Concave Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-022, S25-212 or S25-512.
Availability Download
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.162g

Overall Dimensions (L x W x D) in mm:

24.70 x Ø1.80
