P25-4023

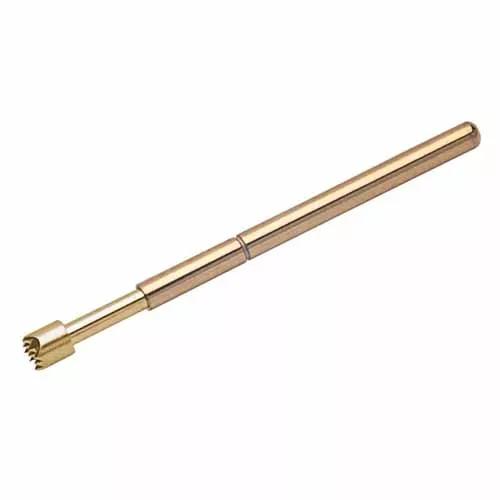

ATE Two-Part Spring Probe, 2.50mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 2.54mm (0.1″) minimum pitch, Ø1.8mm Serrated Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S25-022, S25-212 or S25-512.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.193g

Overall Dimensions (L x W x D) in mm:

24.70 x Ø1.80

Availability

3,372 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2007
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 602
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 500
Distributor Newark
Location USA
Quantity (Updated Daily) 145
Distributor Farnell
Location Europe
Quantity (Updated Daily) 118

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - P25-XX23.pdf

ZIP

P25-4023 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations
