Home > Z125-900
Active

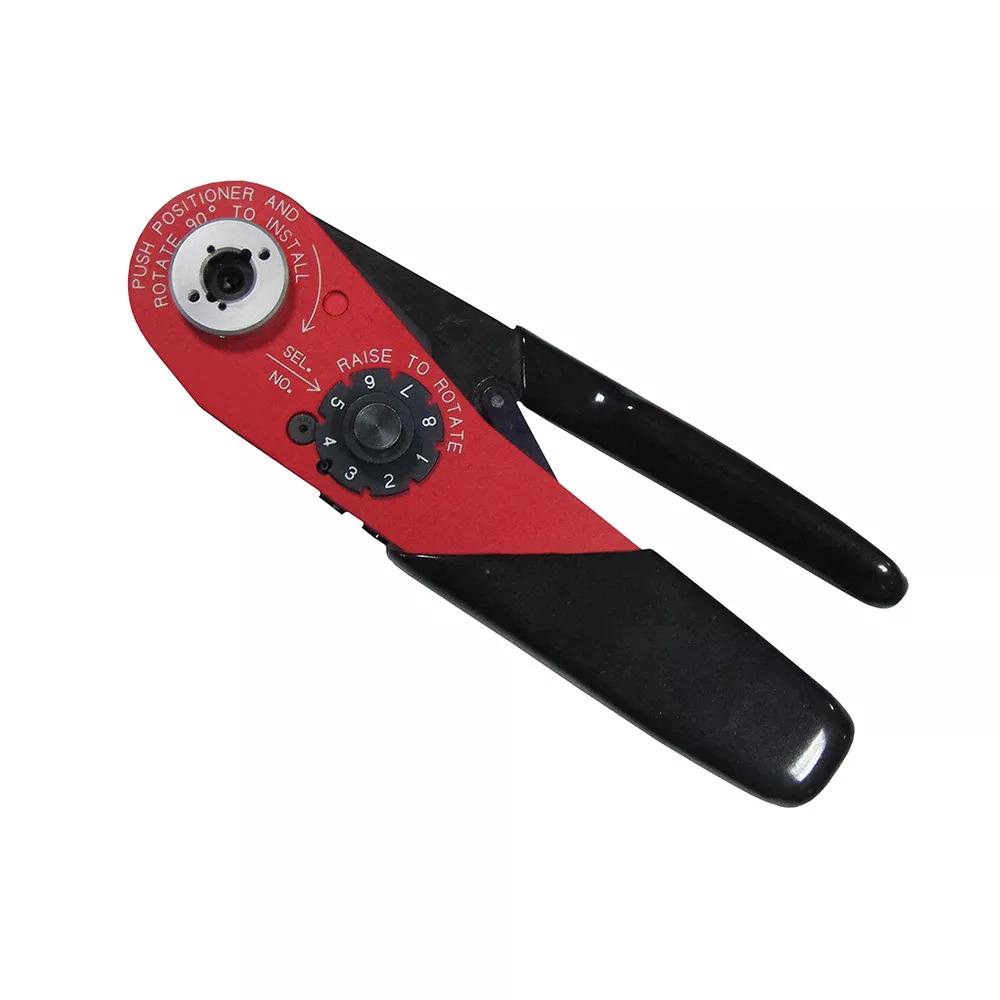

Z125-900

Hand Crimp Tool

1.25mm Pitch High-Reliability Connector - Gecko

  • For Gecko Male & Female signal crimp contacts.
  • Use with Positioner Z125-901.
  • See instruction sheet and video for advice on use.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Tooling

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

336.4g

Overall Dimensions (L x W x D) in mm:

190.00 x 65.00 x 35.00 (in box)

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status39
Farnell
Europe
Status10
Harwin
Europe
Status21
Mouser Electronics Inc
Global
Status21
Newark
USA
Status4
TTI Europe
Europe
Status1

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - Z125-900.pdf

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

ENVIRONMENTAL COMPLIANCE

PDF

Not applicable to RoHS (2015/863/EU)

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko Tooling

PDF

Catalog page - Gecko Introduction
