G125-0020005

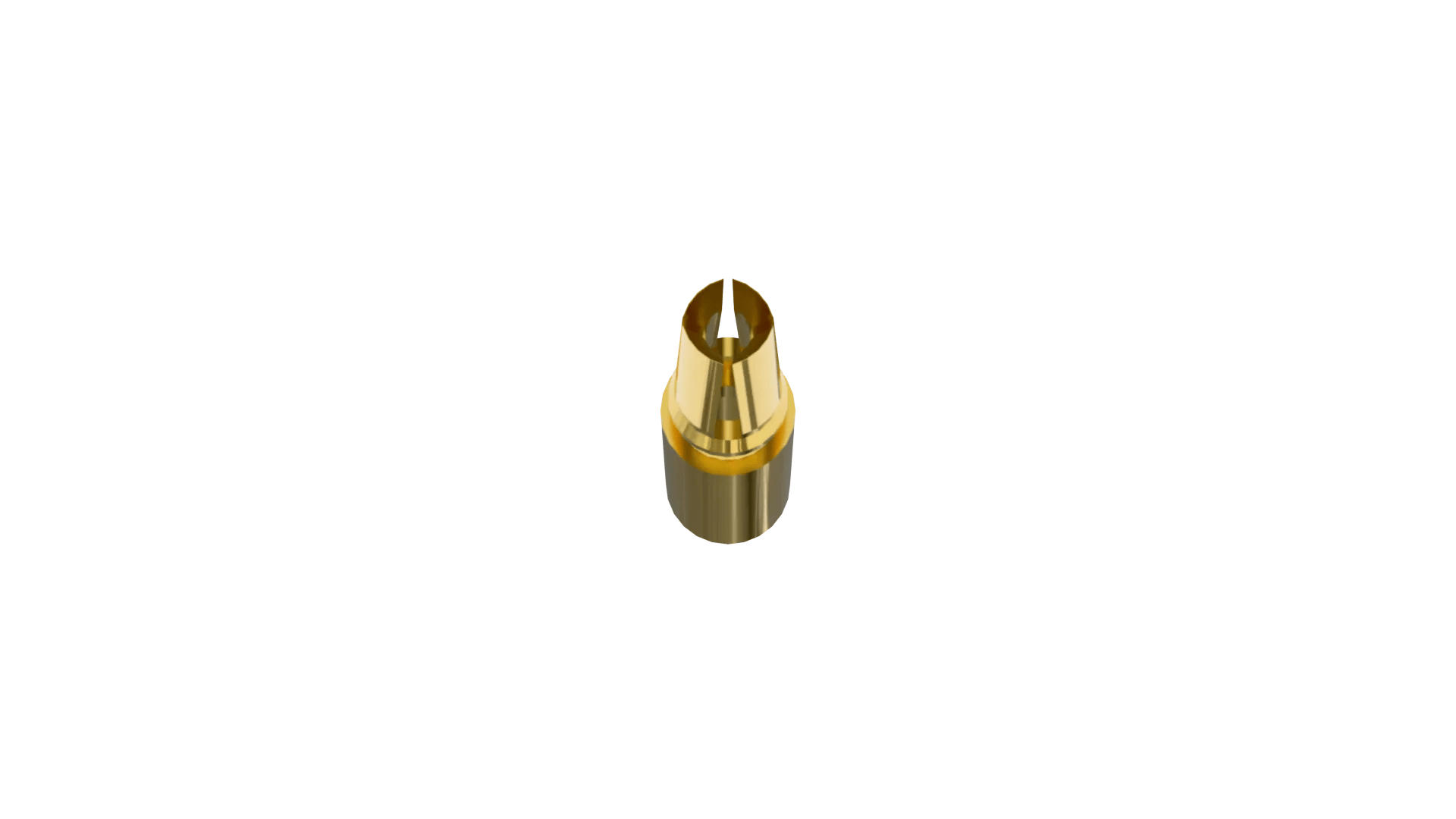

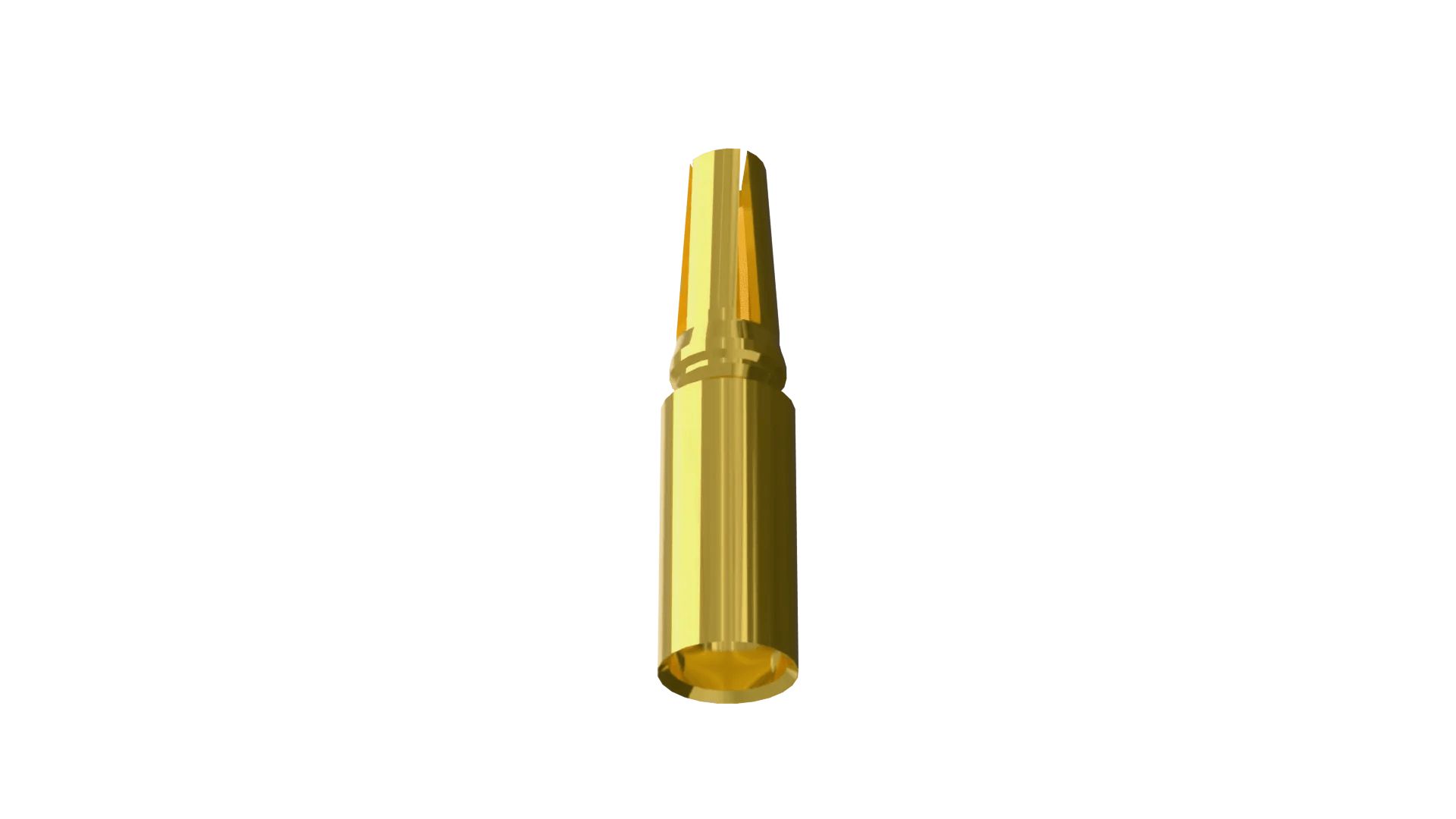

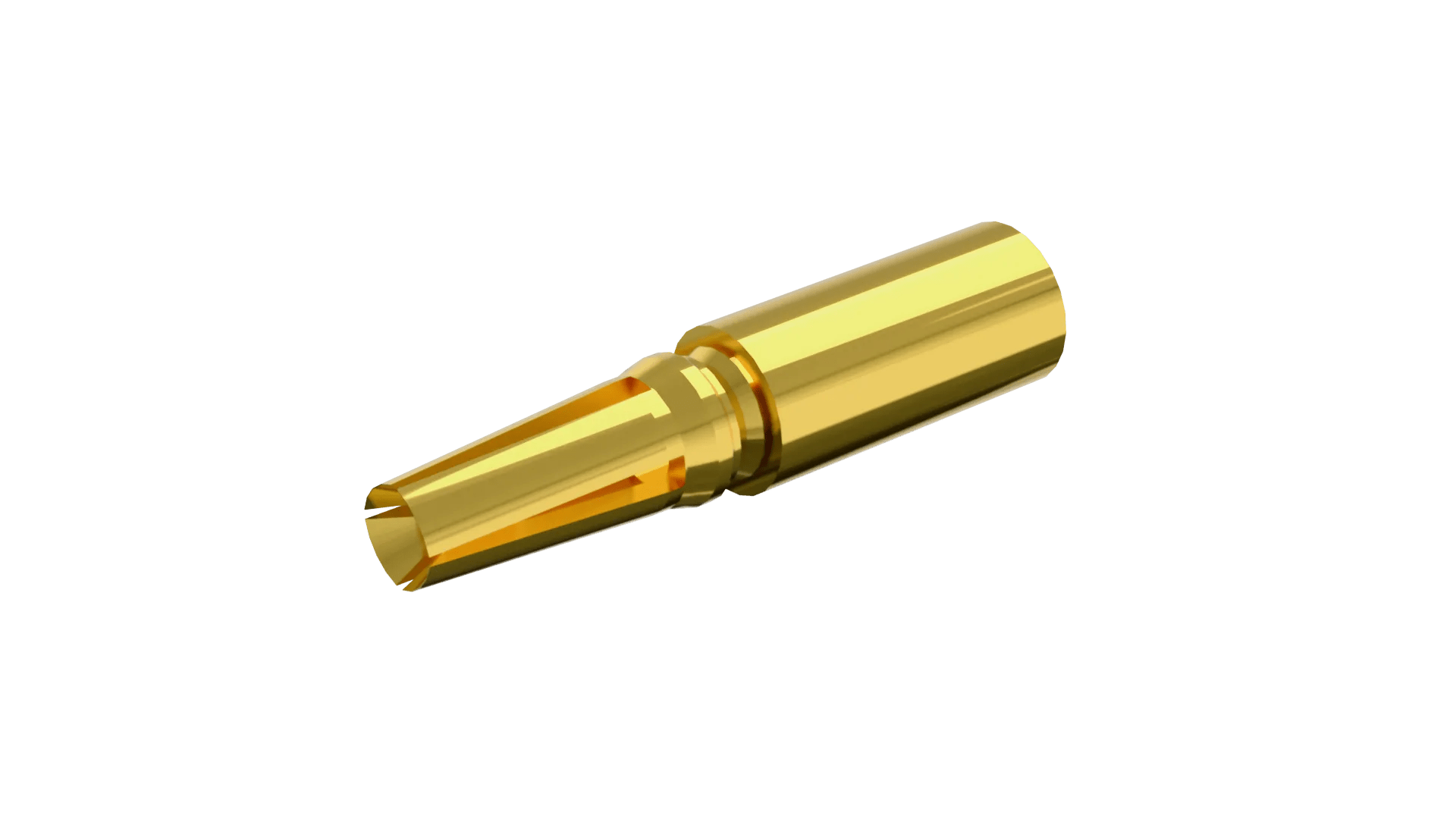

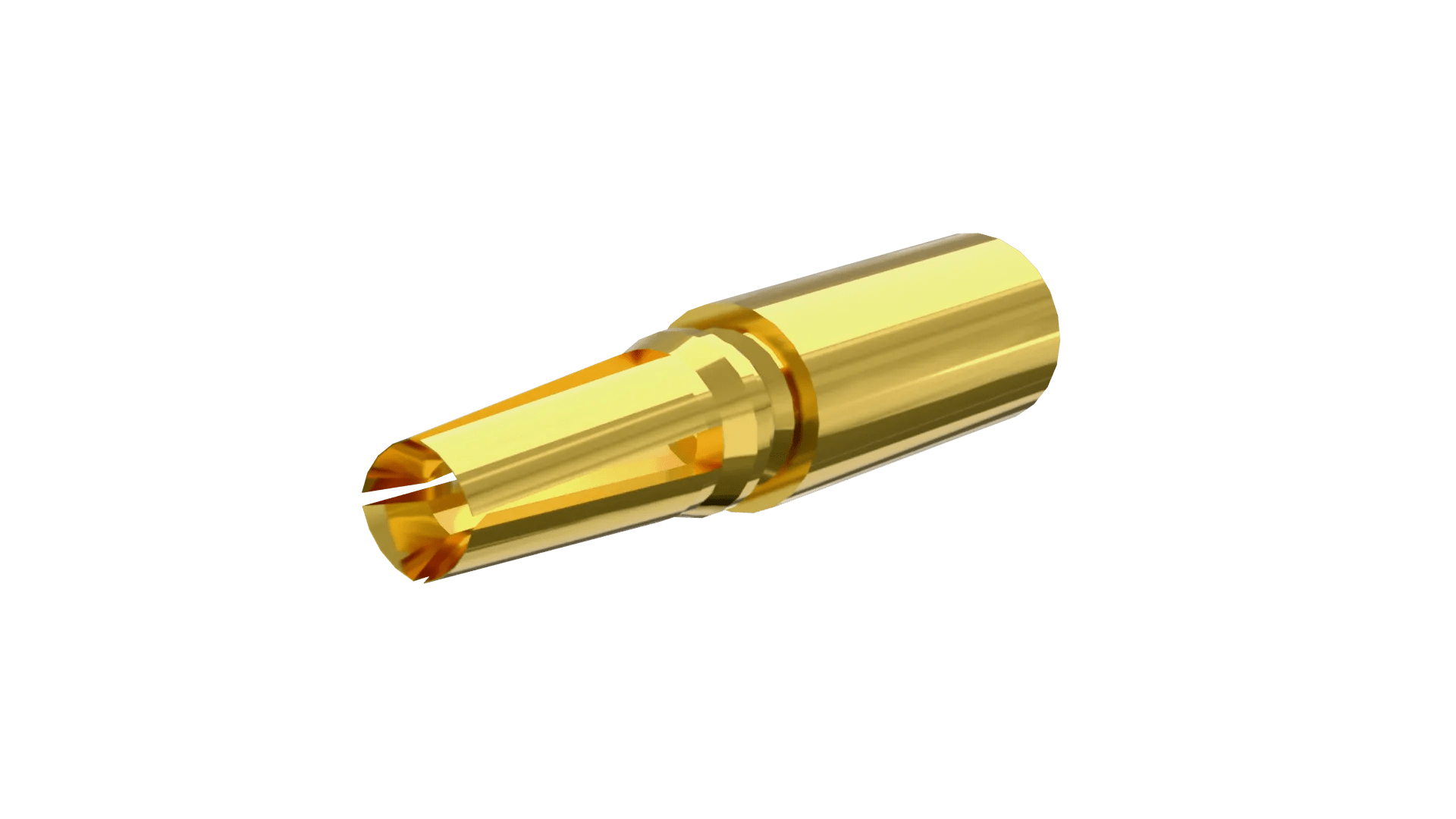

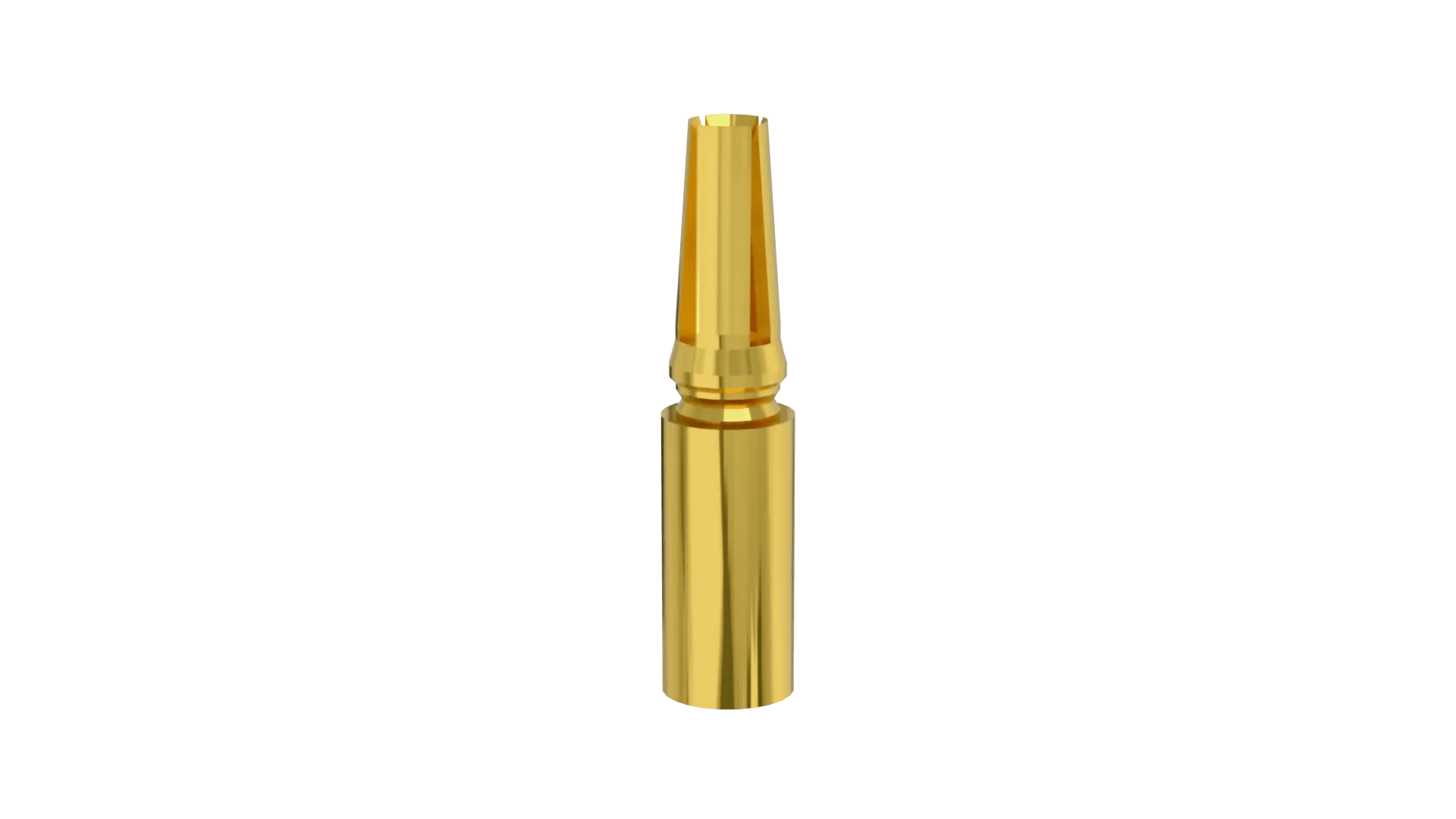

Female 28-32AWG Crimp Contact, loose

1.25mm Pitch High-Reliability Connector - Gecko

  • Individual female crimp contact, Extra Small Bore – suitable for 28 to 32 AWG cable.
  • Use with either Gecko Screw-Lok crimp housings (G125-224 series) or Gecko with Latches crimp housings (G125-204 series).
  • Packaged loose, in bulk. Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

28-32AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.014g

Overall Dimensions (L x W x D) in mm:

4.45 x Ø1.03
