Z125-901

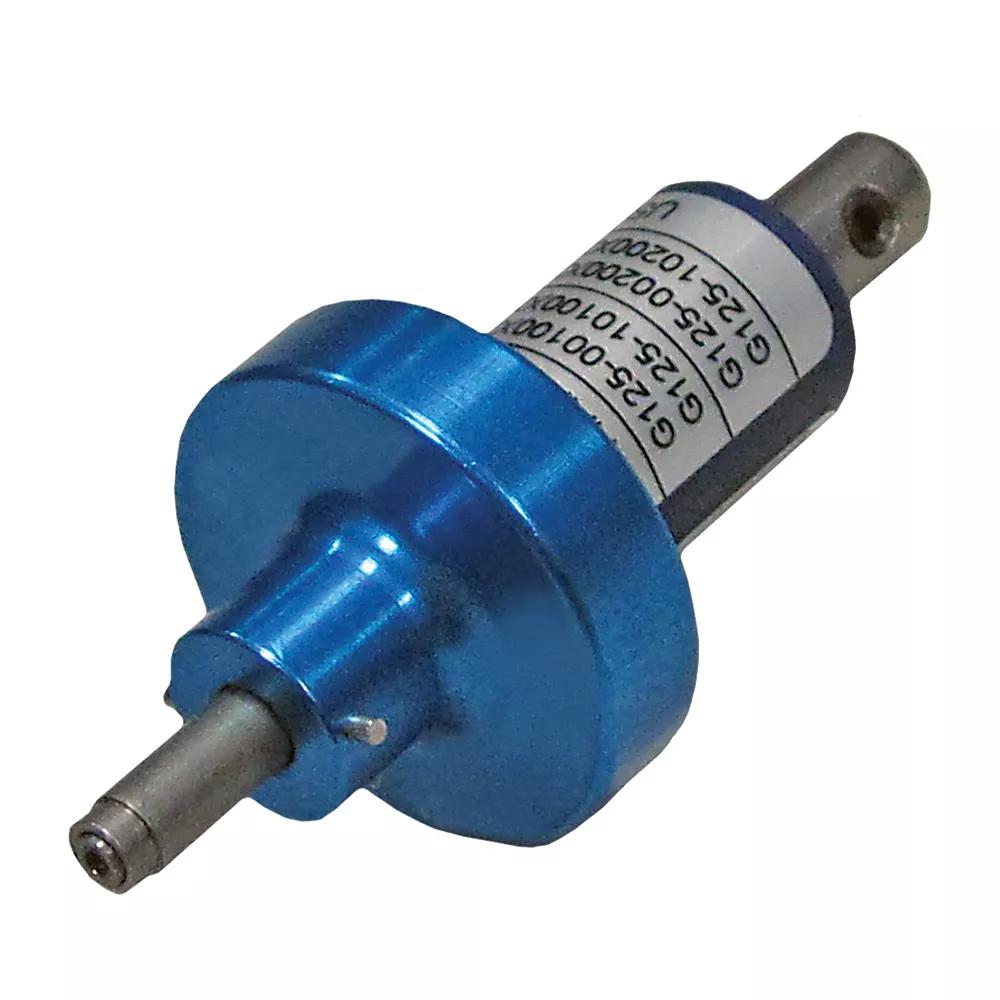

Positioner / Insert for Hand Crimp Tool

1.25mm Pitch High-Reliability Connector - Gecko

For crimping Gecko Male & Female signal contacts to applicable cables.
Use with Hand Crimp Tool Z125-900.
See instruction sheet and video for advice on use.

Availability

Z125-901 - Positioner / Insert for Hand Crimp Tool

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

1.25mm (0.049")

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

19.23g

Overall Dimensions (L x W x D) in mm:

45.00 x 45.00 x 47.00 (in box)

Availability

97 in stock

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.
