G125-0010005

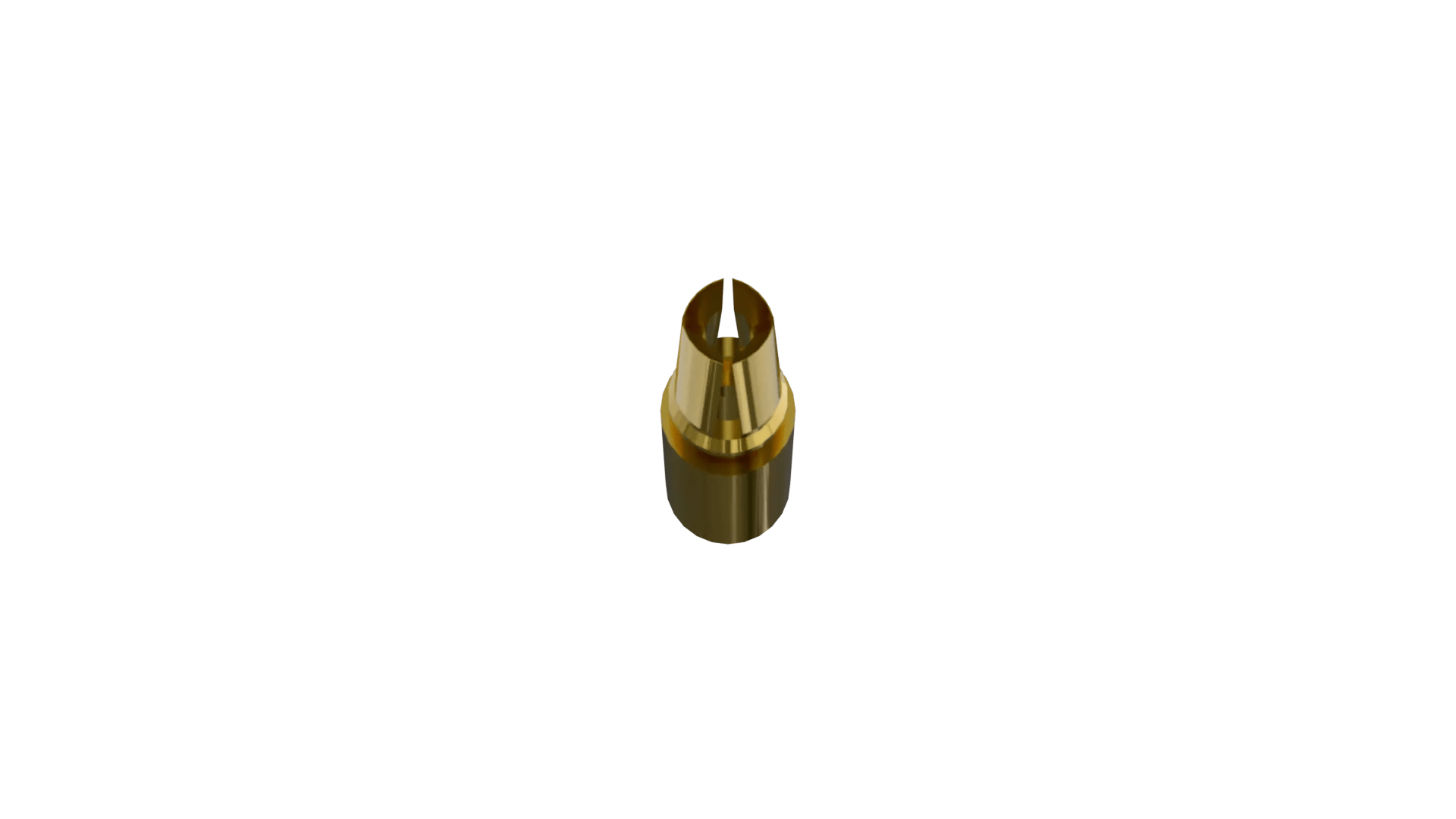

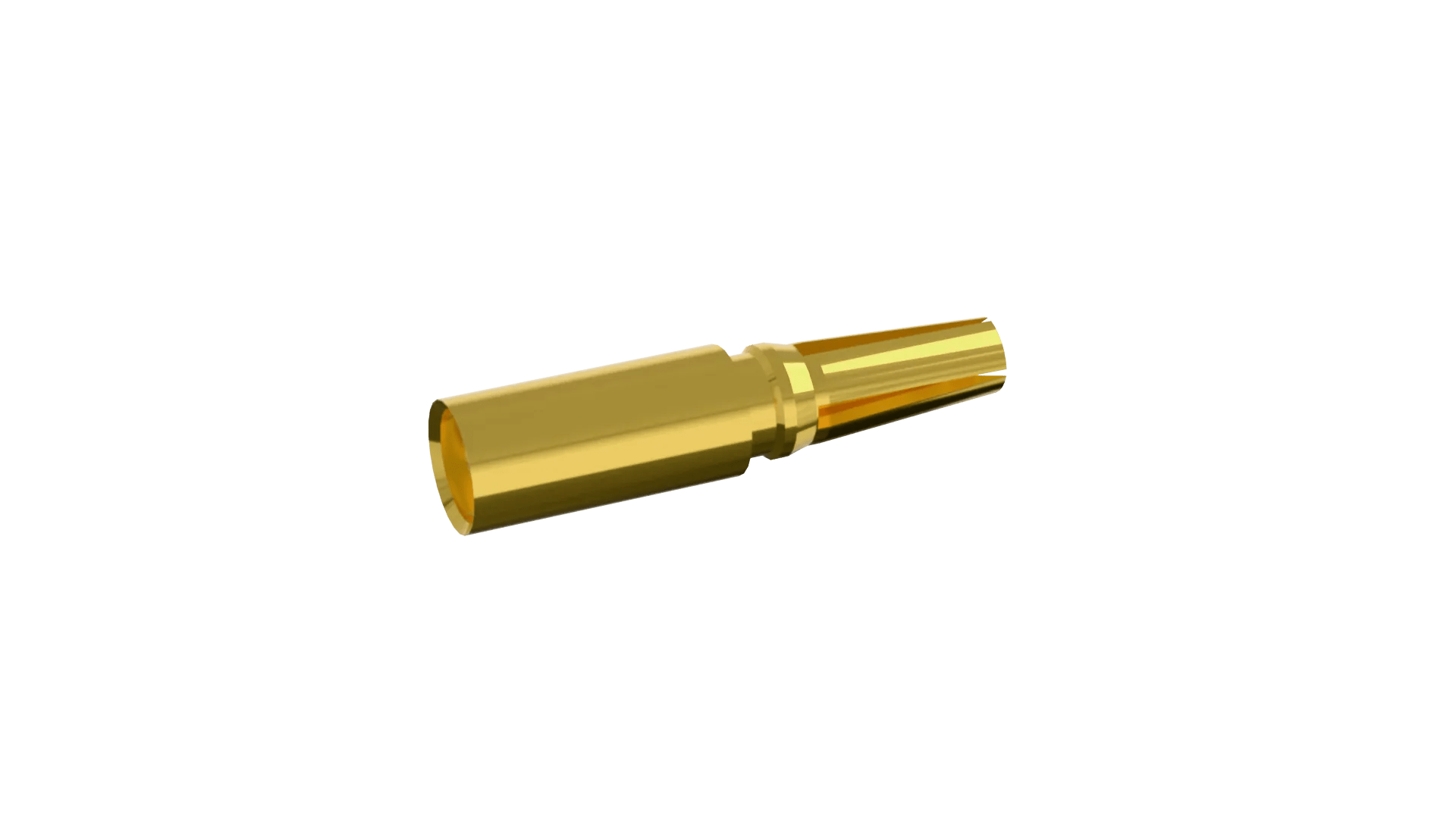

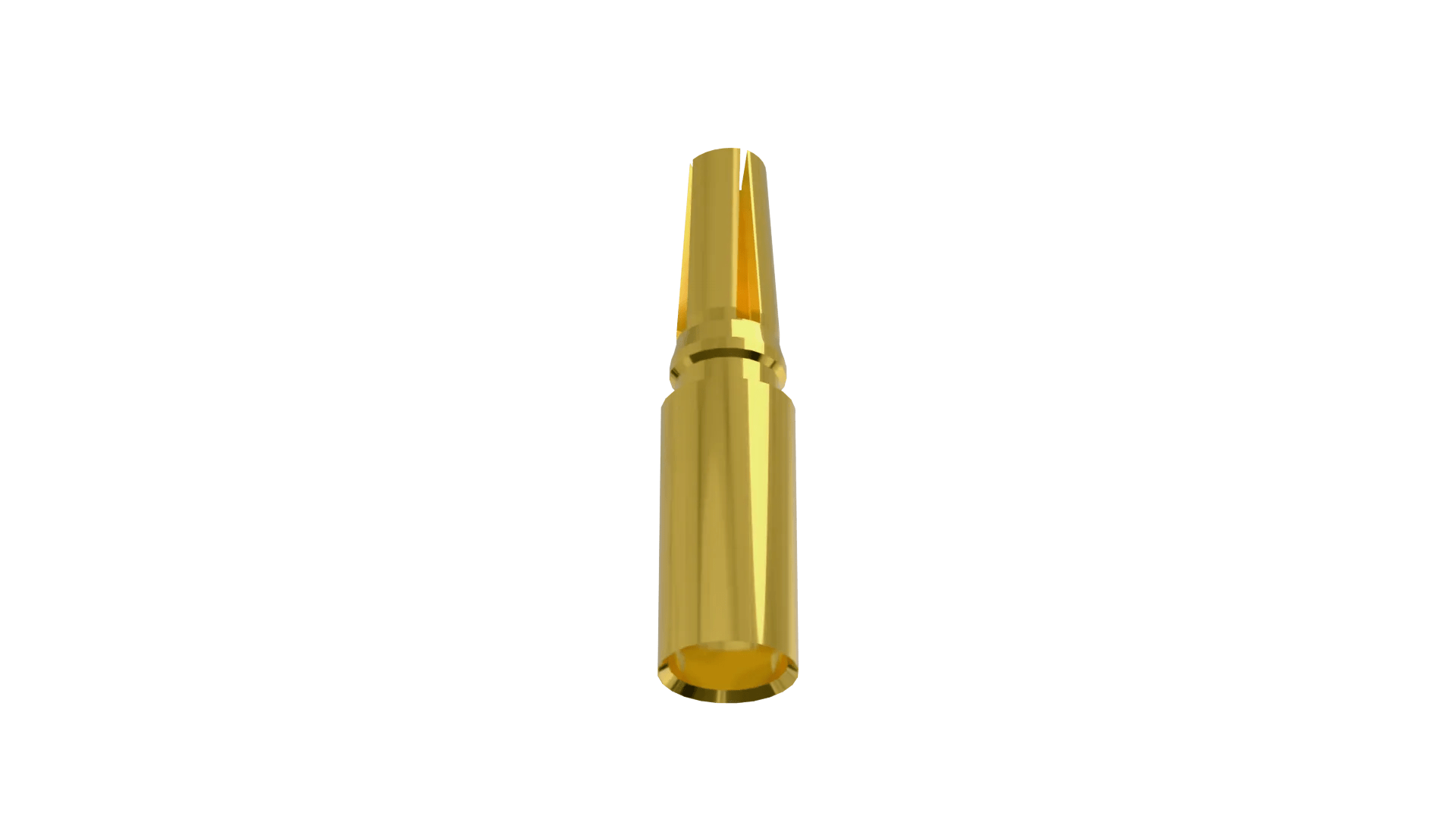

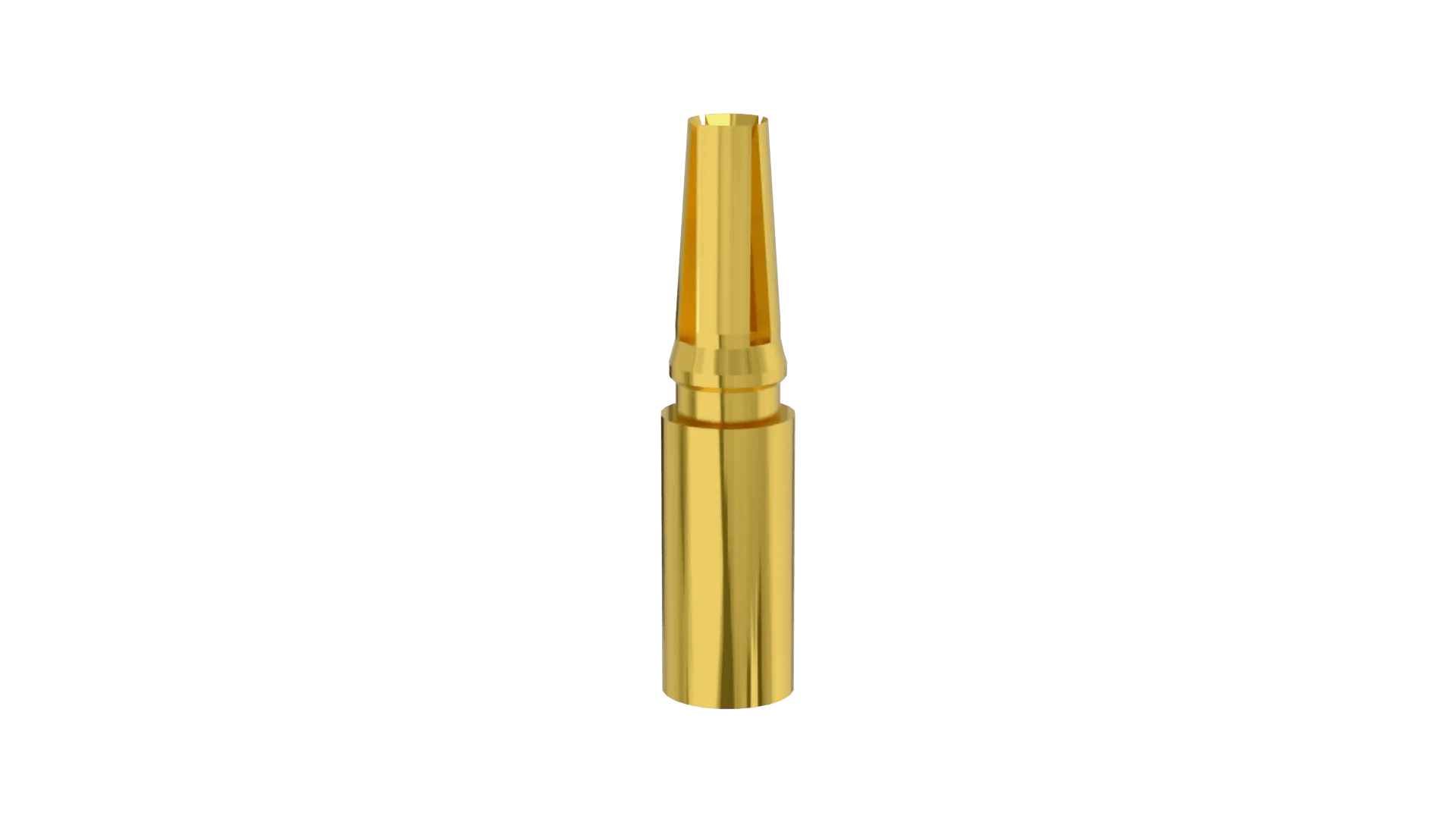

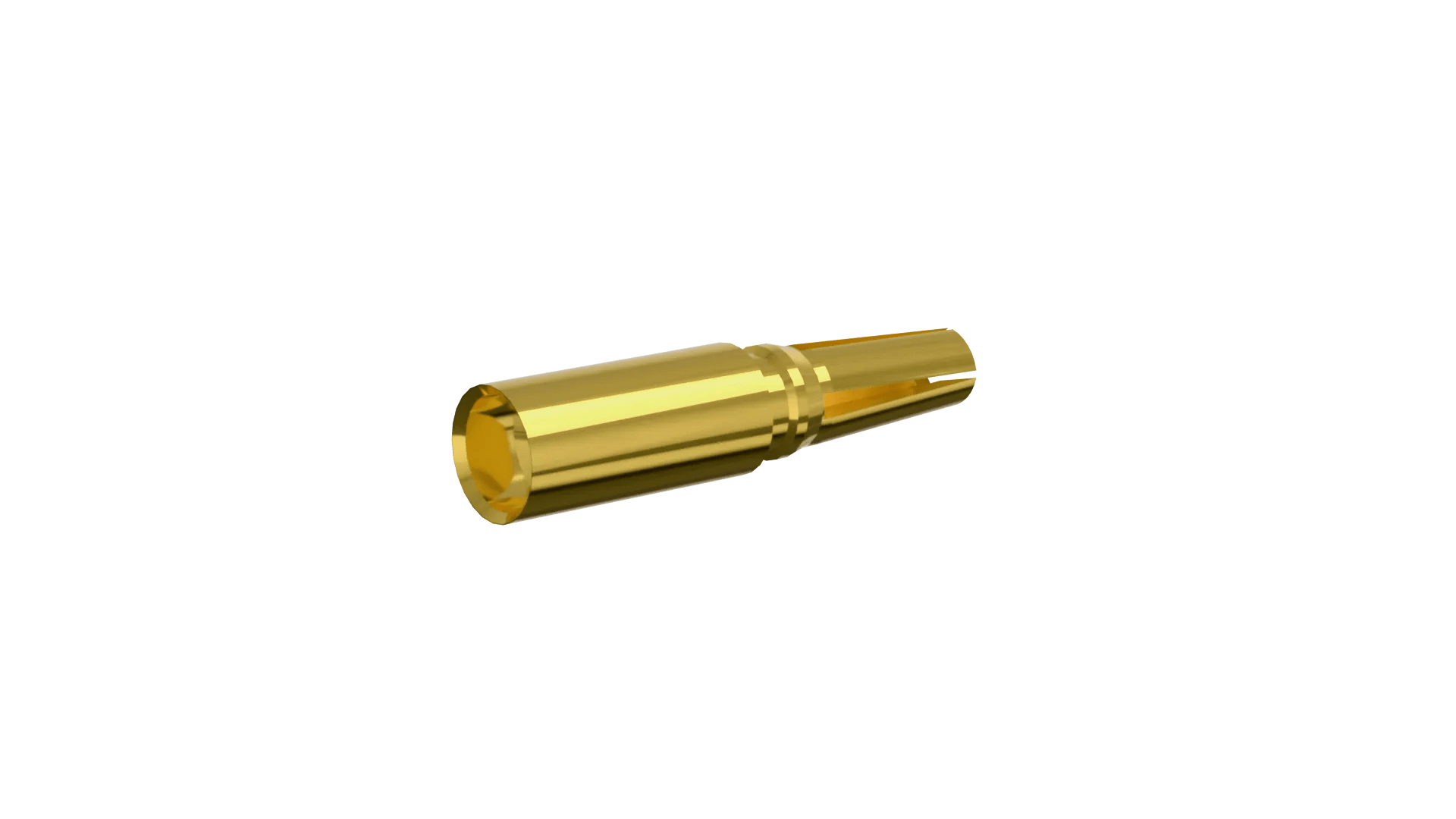

Female 26AWG Crimp Contact, loose

1.25mm Pitch High-Reliability Connector - Gecko

  • Individual female crimp contact, Small Bore – suitable for 26AWG cable.
  • Use with either Gecko Screw-Lok crimp housings (G125-224 series) or Gecko with Latches crimp housings (G125-204 series).
  • Packaged loose, in bulk. Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

26AWG

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.014g

Overall Dimensions (L x W x D) in mm:

4.45 x Ø1.03

Availability

211,065 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Anglia
Location Europe
Quantity (Updated Daily) 82619
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 43130
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 36100
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 15300
Distributor Farnell
Location Europe
Quantity (Updated Daily) 12446
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 10174
Distributor Newark
Location USA
Quantity (Updated Daily) 7601
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 1820
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 1300
Distributor Genalog
Location Europe
Quantity (Updated Daily) 575

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-001-002.pdf

ZIP

G125-0010005 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

PDF

Material composition for Gecko G125-001, G125-002 series

INSTRUCTION SHEETS

PDF

Product Training Module - Introduction to the Gecko connectors, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - G125-0010005_3D.pdf

PDF

Catalog page - Gecko-MT Female Crimp Contacts

PDF

Catalog page - Gecko Screw-Lok Female Crimp Contacts

PDF

Catalog page - Gecko with Latches Female Crimp Contacts

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Gecko-MT High-Reliability Connectors

PDF

Product Summary - Gecko-SL High-Reliability Connectors
