Home > S0951-46R
Active Product

S0951-46R

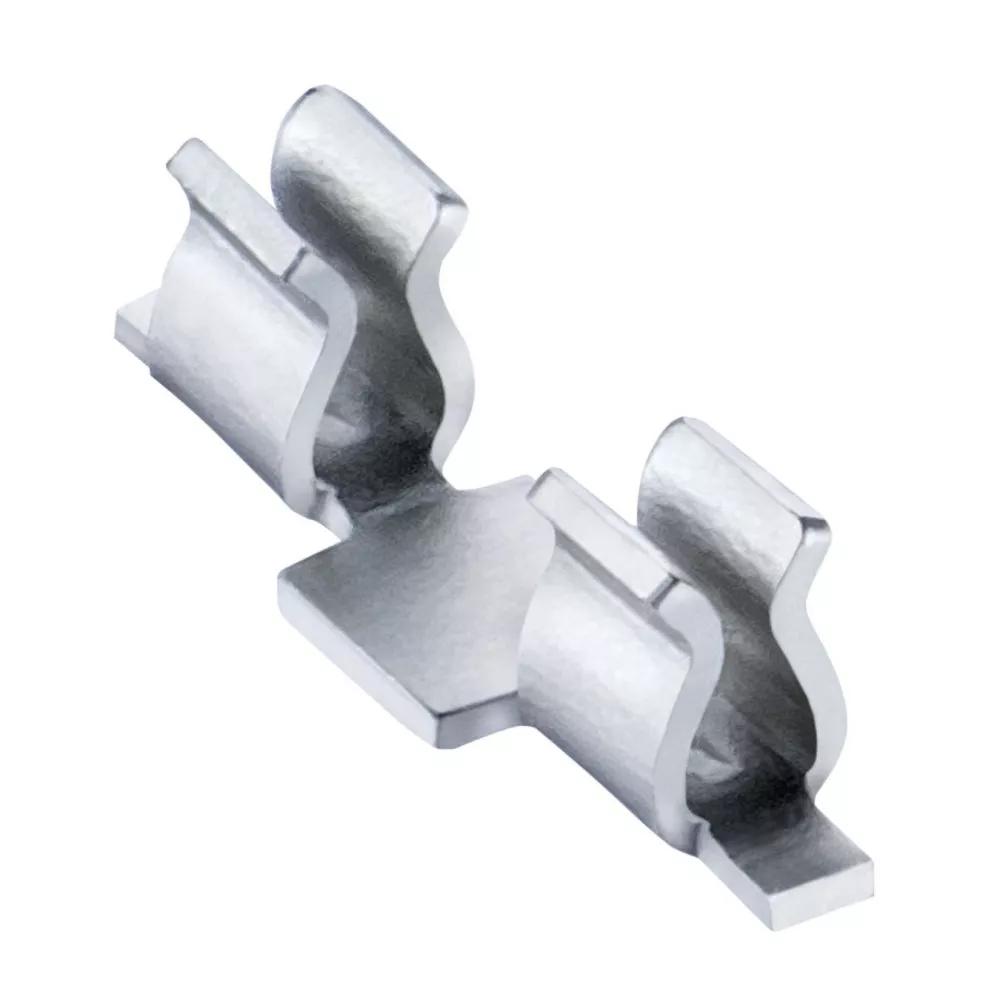

SMT RFI Shield Clip, Micro (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

Add to Favorites

462,272 in stock   Check availability

9 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Micro size (3.9mm long, 1.28mm high), for shield thickness 0.2mm. Tin finish on contact area and termination.
  • Packaged in Tape & Reel for automated placement.
  • Recommended for use with S02-20150300, S02-25200300 or S02-30200250 Shield Cans.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +85°C

Soldering Data:

Max Solder Temperature: 250°C for 5 seconds

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Stainless Steel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.008g

Overall Dimensions (L x W x D) in mm:

3.90 x 1.10 x 1.28

Height of Connector above PCB:

1.28mm

Frequently Asked Questions Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
