S02-30200250

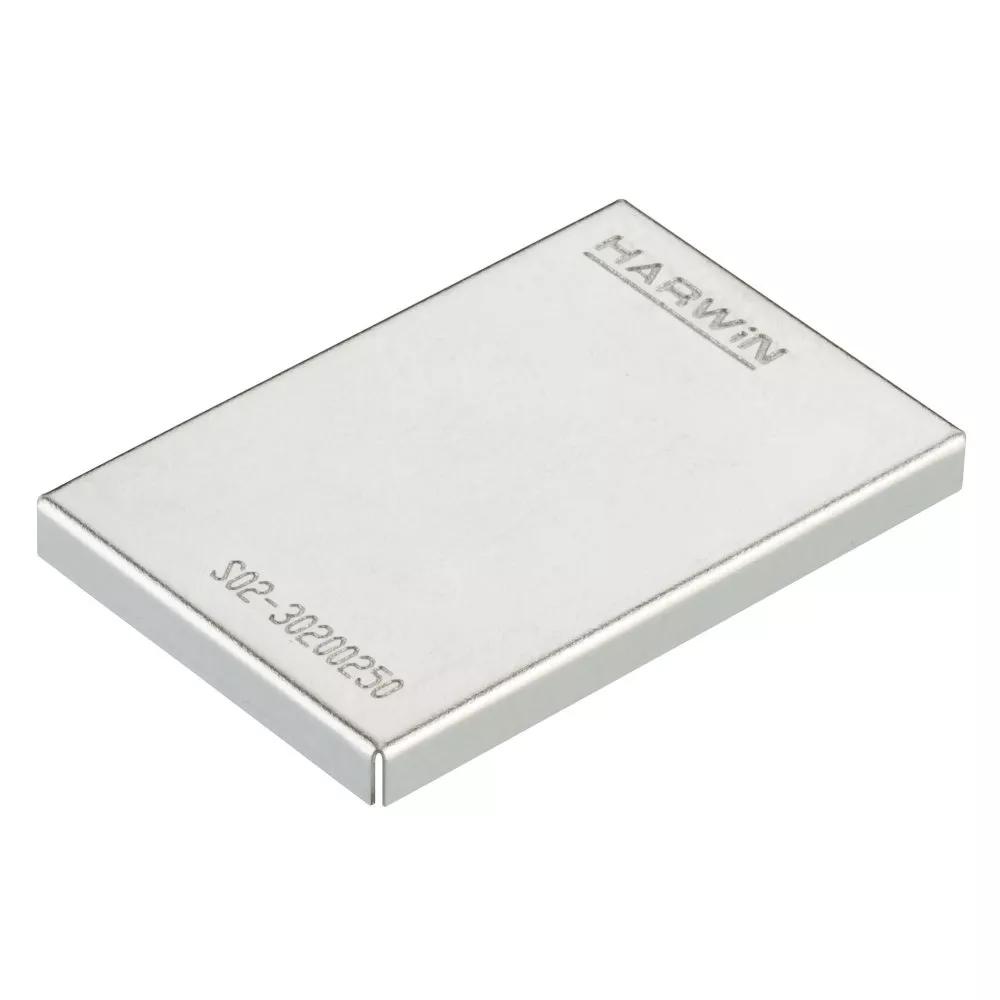

30x20mm RFI Shield Can, 0.2mm thickness

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

Add to Favorites

Technical Details

Specification

Contact Gender:

Accessory

Connection Type:

With SMT Shield Clips

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

1.455g

Overall Dimensions (L x W x D) in mm:

30.20 x 20.20 x 2.70

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status5
Digi-Key
Global
Status426
Farnell
Europe
Status329
Mouser Electronics Inc
Global
Status618
Newark
USA
Status100
TTI Europe
Europe
Status1200
TTI Inc
USA
Status421

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Are these shield cans solderable, in an application where clips are not used?

These cans were not intended to be soldered, and as such have not been tested for solderability – they do not have a finish on them that would help with the soldering process, like as a tin finish. The material is a nickel/silver alloy, unplated. We can only recommend that you carry out your own testing to see if they can be soldered within your application.
