S02-25200300

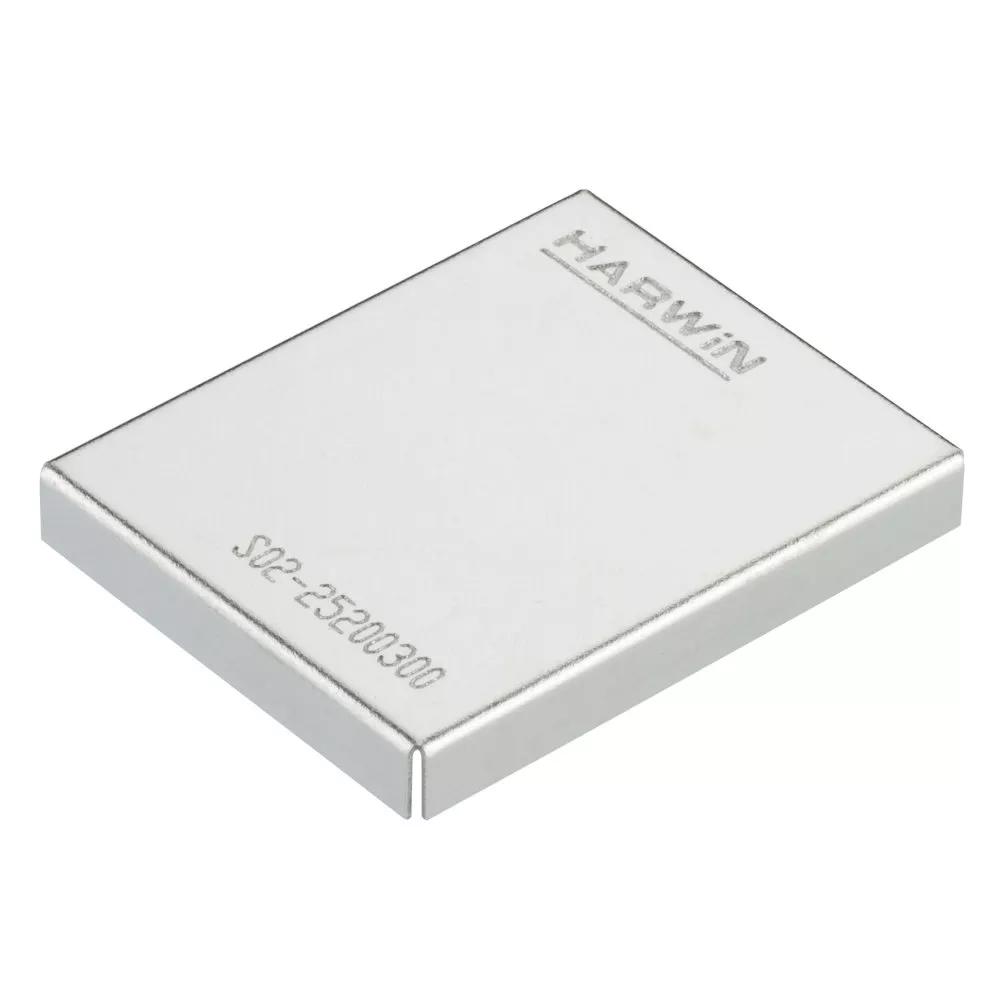

25x20mm RFI Shield Can, 0.2mm thickness

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

Add to Favorites

Technical Details

Specification

Connection Type:

With SMT Shield Clips

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Finish / Plating on Contact Surface:

Unplated

Base Material of Contact:

Nickel Silver

Packaging Style:

Single Pack

Dimensions

Individual Part Weight:

1.314g

Overall Dimensions (L x W x D) in mm:

25.20 x 20.20 x 3.20

Availability

17,692 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 3636
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1166
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 300
Distributor Farnell
Location Europe
Quantity (Updated Daily) 257
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 230
Distributor Newark
Location USA
Quantity (Updated Daily) 103

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 12000

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Are these shield cans solderable, in an application where clips are not used?

These cans were not intended to be soldered, and as such have not been tested for solderability – they do not have a finish on them that would help with the soldering process, like as a tin finish. The material is a nickel/silver alloy, unplated. We can only recommend that you carry out your own testing to see if they can be soldered within your application.
