S1001-46R

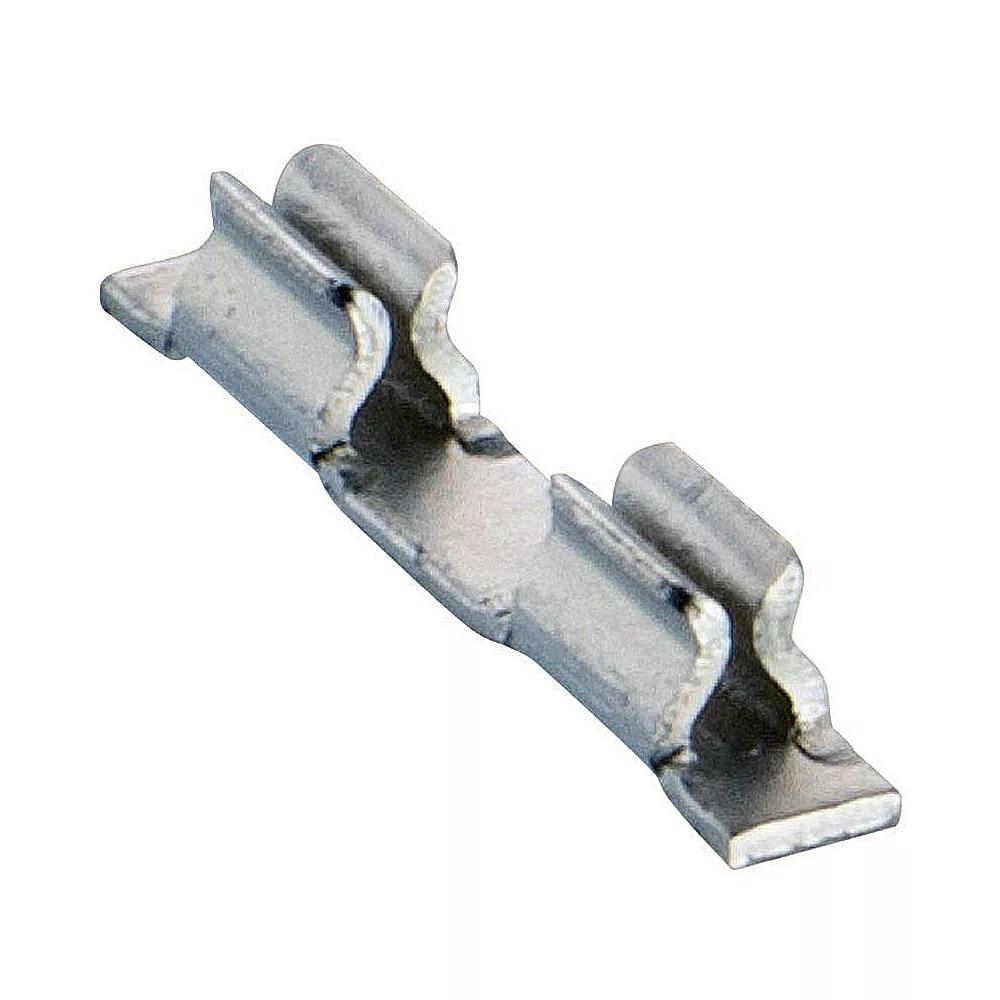

SMT RFI Shield Clip, Micro (T+R)

EMC Shielding (EMI/RFI Shielding, Board Level Shielding)

Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +150°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Entry Style:

Top Entry

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Stainless Steel

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.007g

Overall Dimensions (L x W x D) in mm:

4.50 x 0.70 x 0.80

Height of Connector above PCB:

0.80mm

Availability

191,529 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 67862
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 40000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 25802
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 20000
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 20000
Distributor Anglia
Location Europe
Quantity (Updated Daily) 17865

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Can you please clarify the temperature range data of “Operating: -25 to +150°C, Storage: -40 to +85°C” – especially the difference on the lower values, and how a temperature between these two would affect a product when soldered to a PCB and gripping a shield?

Operating temperature is valid when the component is unpacked and SMT mounted on the PCB, and in operation in the field. Storage temperature covers the product supplied in the original, unopened packaging, not in any operation and also considering the properties of the carrier pocket materials.

The Operating Temperature range given is the result of testing this particular component. We can confirm that have product using the same material but a different shape, tested to “Low Temperature Test: -40℃, 96 hrs and Thermal Shock Test: -40⁰C to +85⁰C, 2hrs & 15 cycles. As there is little difference between the two components we believe there would be no adverse effects if S1001-46R is subjected to temperatures between -25°C and -40°C in operation.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
