P19-1121

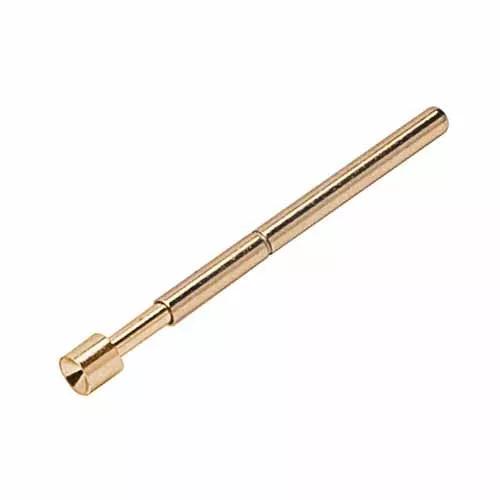

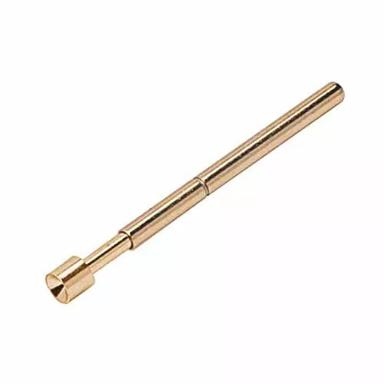

ATE Two-Part Spring Probe, 1.90mm Centres

ATE Spring Probe, Spring Contact, Test Probe

Add to Favorites

2,915 in stock   Check availability

1 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Two Part Spring Probe, 1.90mm minimum pitch, Ø1.5mm Concave Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S19-501.

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.047g

Overall Dimensions (L x W x D) in mm:

17.04 x Ø1.50

Frequently Asked Questions Ask a Question

Is there a recommended insertion tool that I can use with the ATE probes and sleeves?

We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.

Was this answer useful?

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Was this answer useful?

Could you please let me know if there is a sleeve for the P19-xx21 probes, with a wirewrap tail?

Sorry, but we only have the one style of sleeve for this probe, S19-501. This sleeve is suitable for assembling a wire by solder or crimp, although it might be possible for you to source square pins of a suitable length from another manufacturer and crimp these into the end of the sleeve.

Was this answer useful?
