P19-0121

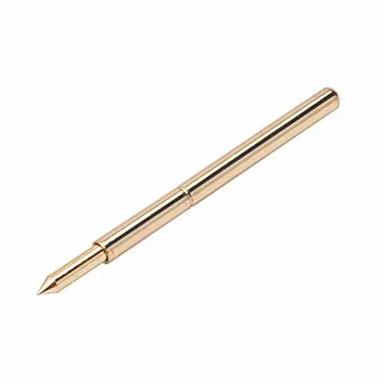

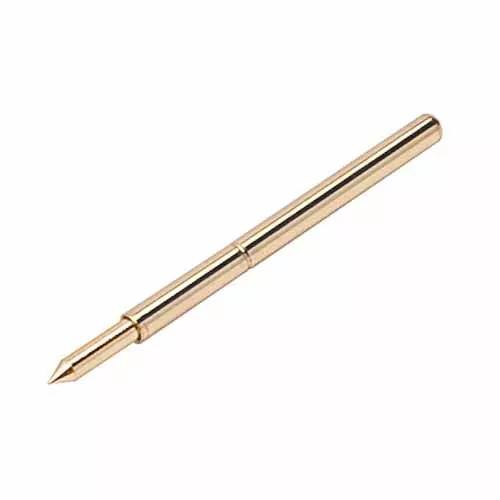

ATE Two-Part Spring Probe, 1.90mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 1.90mm minimum pitch, Spear Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S19-501.
Availability Download
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Steel plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.04g

Overall Dimensions (L x W x D) in mm:

16.35 x Ø1.01

Availability

Popular product
Distributor Location Quantity
Digi-Key
Global
Status1966
Farnell
Europe
Status212
Mouser Electronics Inc
Global
Status1157

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

Could you please let me know if there is a sleeve for the P19-xx21 probes, with a wirewrap tail?

Sorry, but we only have the one style of sleeve for this probe, S19-501. This sleeve is suitable for assembling a wire by solder or crimp, although it might be possible for you to source square pins of a suitable length from another manufacturer and crimp these into the end of the sleeve.

Was this answer helpful?

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - P19-XX21.pdf

ZIP

P19-0121 CAD Model (ZIP file containing STP and IGES)

Download

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for P19-0121 product

INSTRUCTION SHEETS

PDF

Product Training Module - Overview of ATE Spring Probes and Miniature Spring Loaded Contacts (Pogo Pins)

PDF

IS-41 - ATE Spring Probes Instruction Sheet
