P13-1123

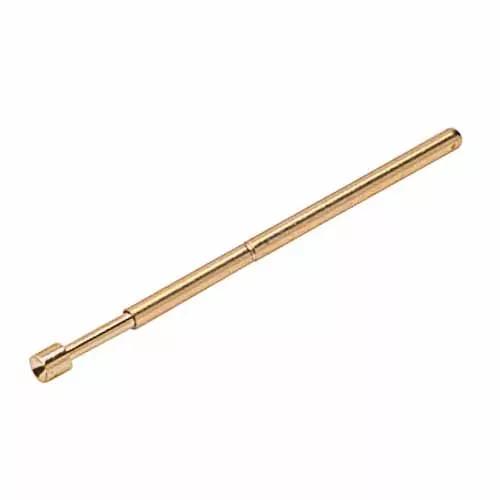

ATE Two-Part Spring Probe, 1.27mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 1.27mm (0.05″) minimum pitch, Ø0.9mm Concave Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S13-503.
Availability
Add to Favorites

Technical Details

Specification

Contact Gender:

Female/Spring Contact

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

1.5A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Phosphor Bronze shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.034g

Overall Dimensions (L x W x D) in mm:

16.55 x Ø0.90

Availability

1,768 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 611
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 500
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 461
Distributor Farnell
Location Europe
Quantity (Updated Daily) 121
Distributor Newark
Location USA
Quantity (Updated Daily) 75

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
