P19-2221

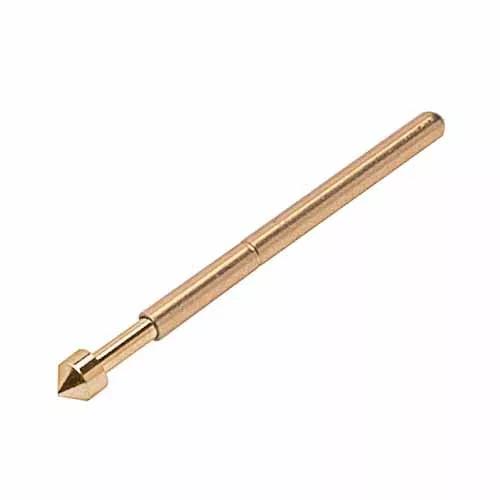

ATE Two-Part Spring Probe, 1.90mm Centres

ATE Spring Probe, Spring Contact, Test Probe

  • Two Part Spring Probe, 1.90mm minimum pitch, Ø1.5mm Convex Head.
  • Gold finish on probe head and body.
  • Use with receptacle / sleeve S19-501.
Availability
Add to Favorites

Technical Details

Specification

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Current Rating:

3A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper plunger, Brass barrel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.072g

Overall Dimensions (L x W x D) in mm:

17.04 x Ø1.50

Availability

4,131 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 1787
Distributor Avnet Abacus
Location Europe
Quantity (Updated Daily) 1000
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 537
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 500
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 118
Distributor Farnell
Location Europe
Quantity (Updated Daily) 111
Distributor Newark
Location USA
Quantity (Updated Daily) 78

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

Could you please let me know if there is a sleeve for the P19-xx21 probes, with a wirewrap tail?

Sorry, but we only have the one style of sleeve for this probe, S19-501. This sleeve is suitable for assembling a wire by solder or crimp, although it might be possible for you to source square pins of a suitable length from another manufacturer and crimp these into the end of the sleeve.
