Home > M80-2060005
Active

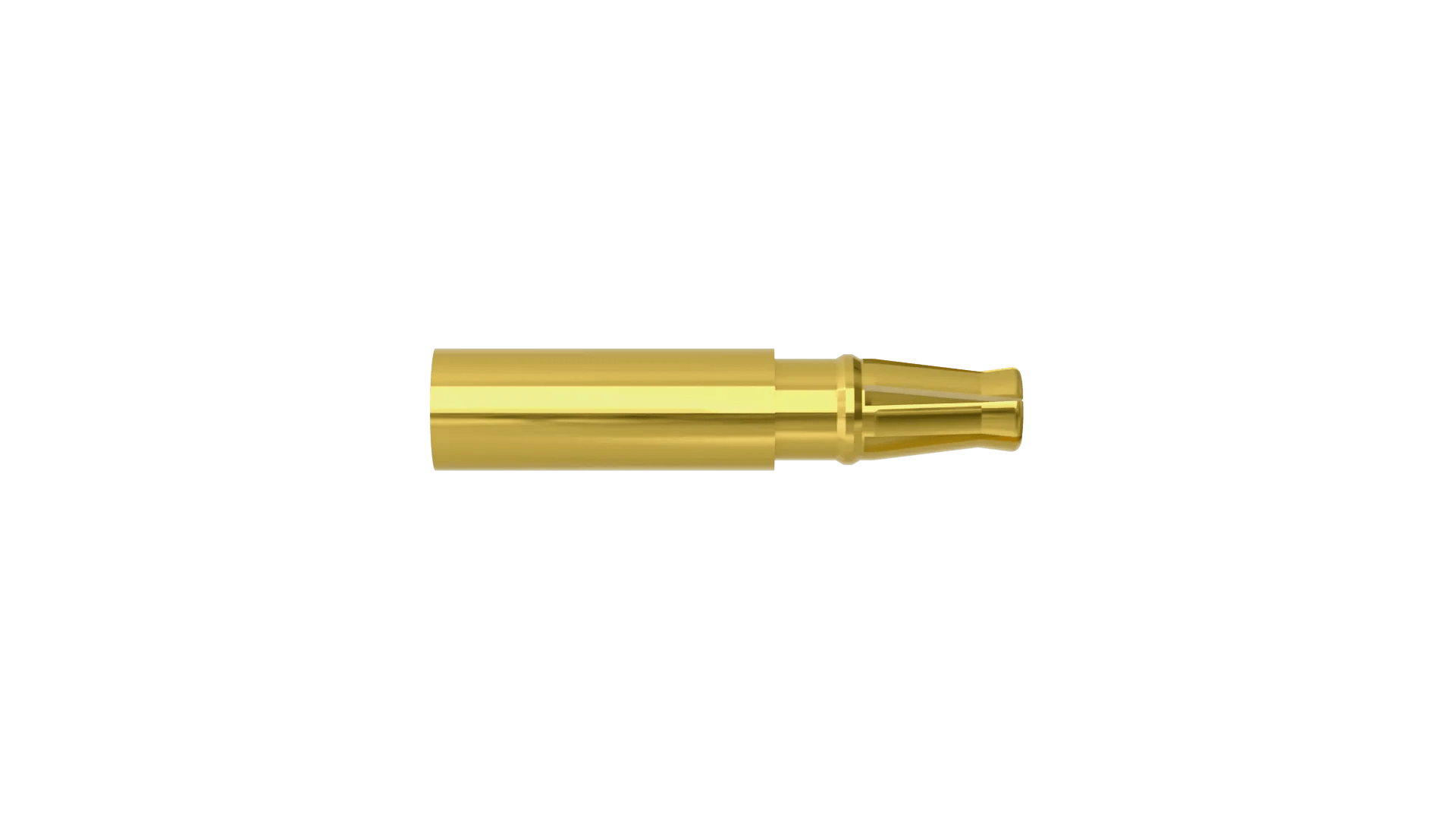

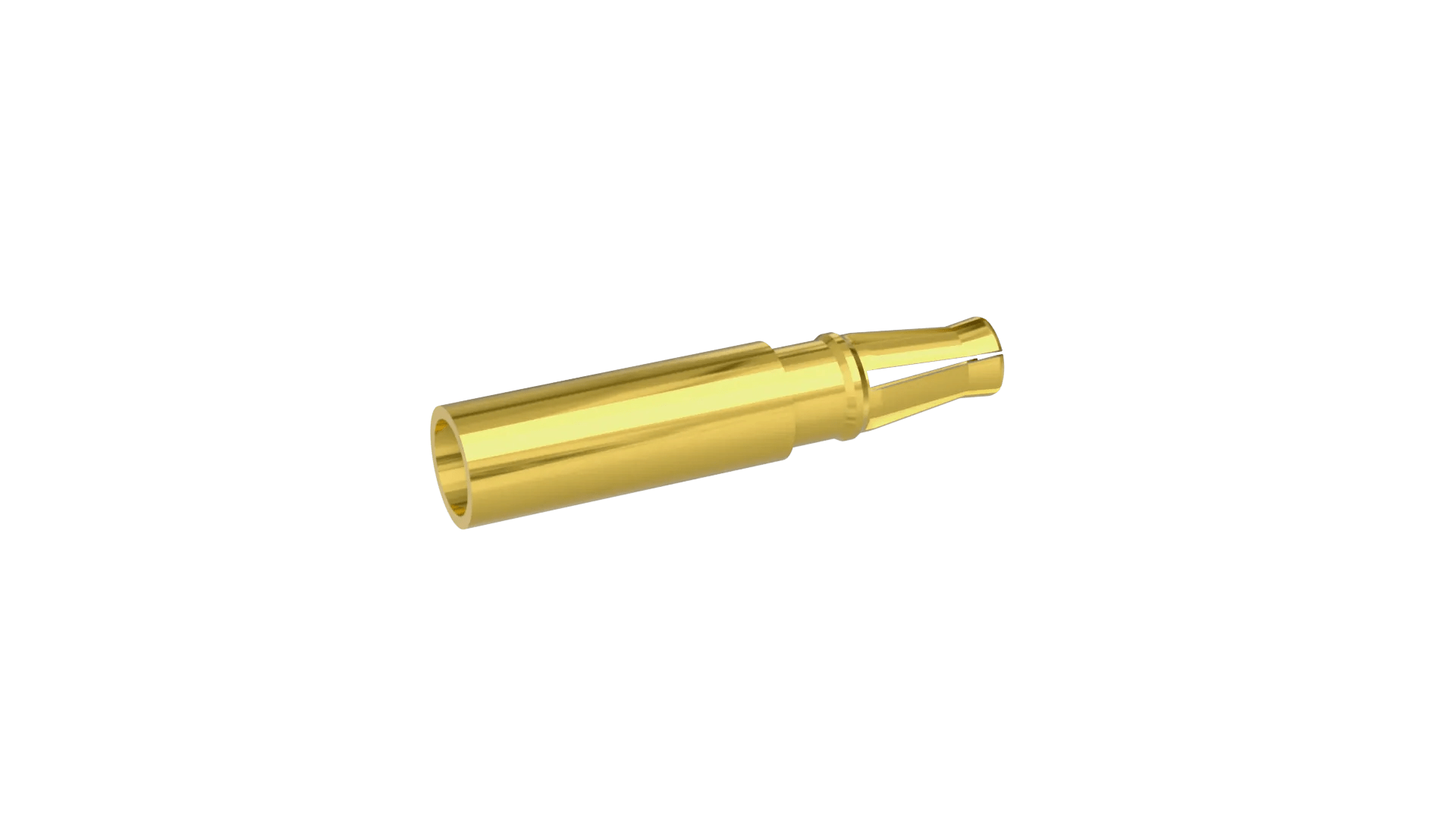

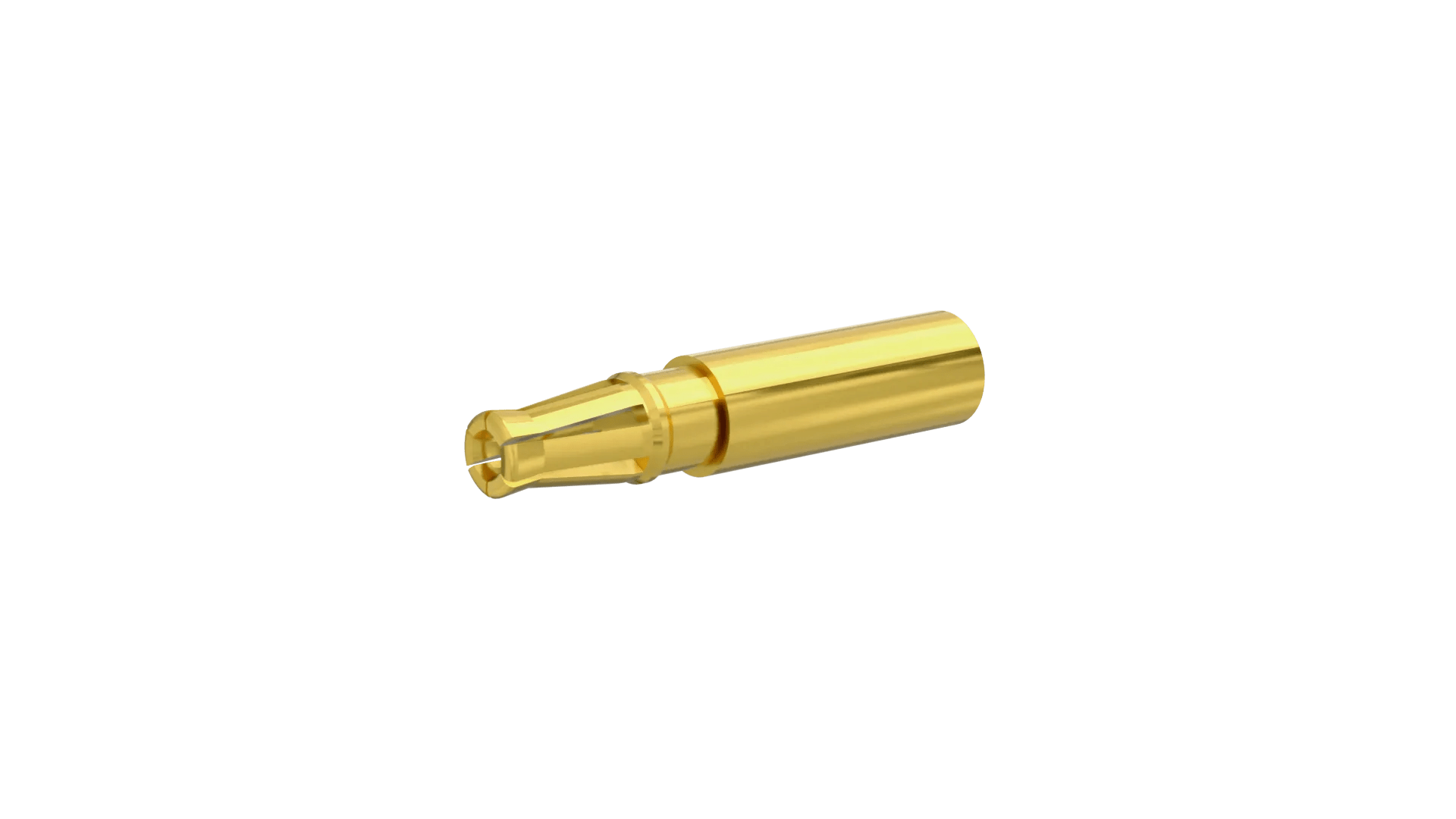

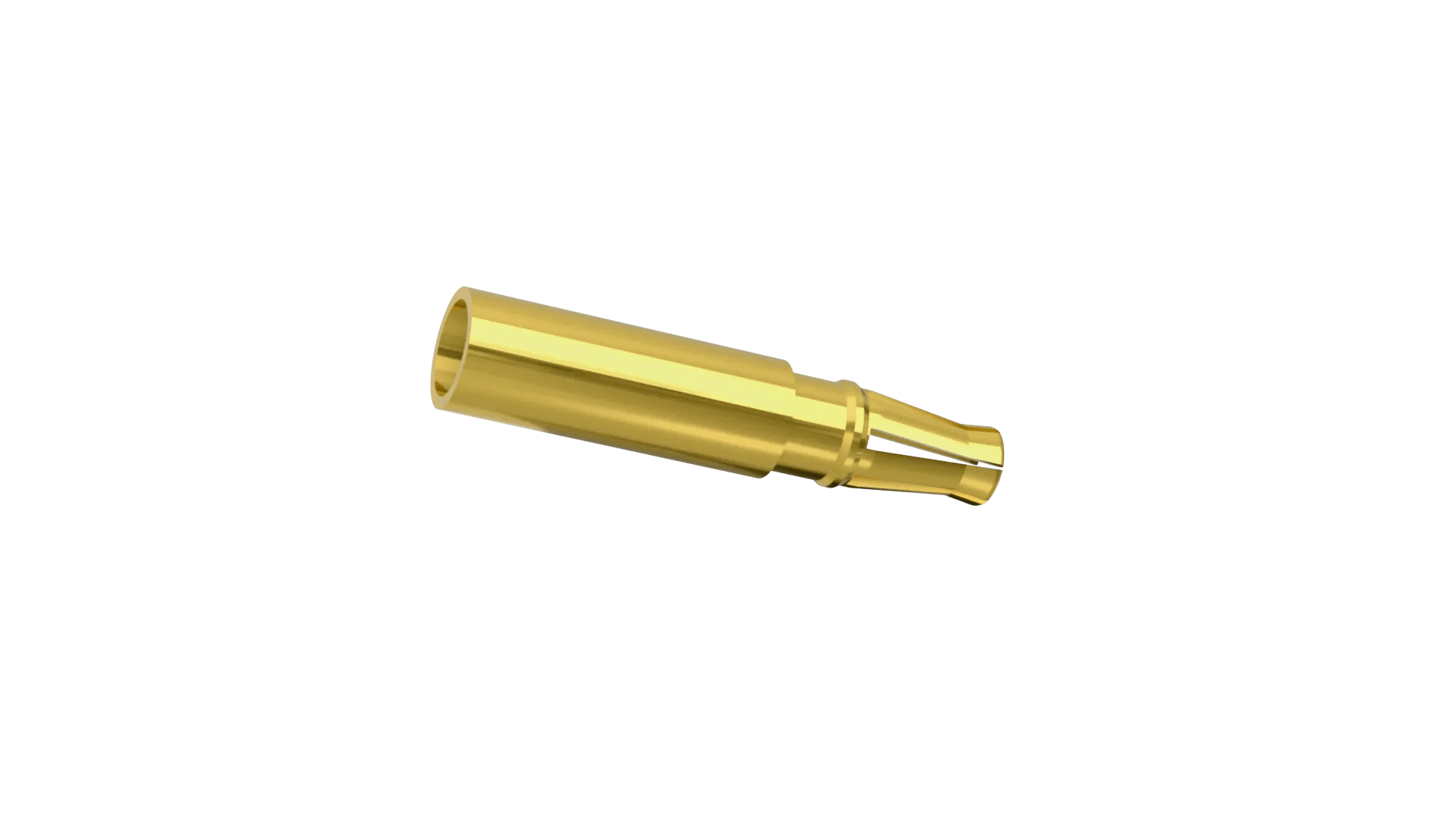

M80-2060005

Female 22AWG Cable Crimp T-Contact

2.00mm Pitch High-Reliability Connector - Datamate

  • T-Contact design, Large Bore signal contact, for 22 AWG wire (Ø1.1mm max insulation). 6 points of contact for up to 8.5A on 2mm pitch.
  • Use with one of these housings types: M80-413 (Hex slotted jackscrew), M80-414 (Hex socket jackscrew), M80-415 (Reverse fix jackscrew), M80-417 (Guide pin with panel mount), or M80-418 (101Lok).
  • Gold finish on contact area and termination.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

8.5A max individual contact, 3.5A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.048g

Overall Dimensions (L x W x D) in mm:

6.95 x Ø1.46

Availability

120,284 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 6393
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 2400
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 571
Distributor TTI Europe
Location Europe
Quantity (Updated Daily) 470
Distributor Farnell
Location Europe
Quantity (Updated Daily) 350

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 110100
