M80-325

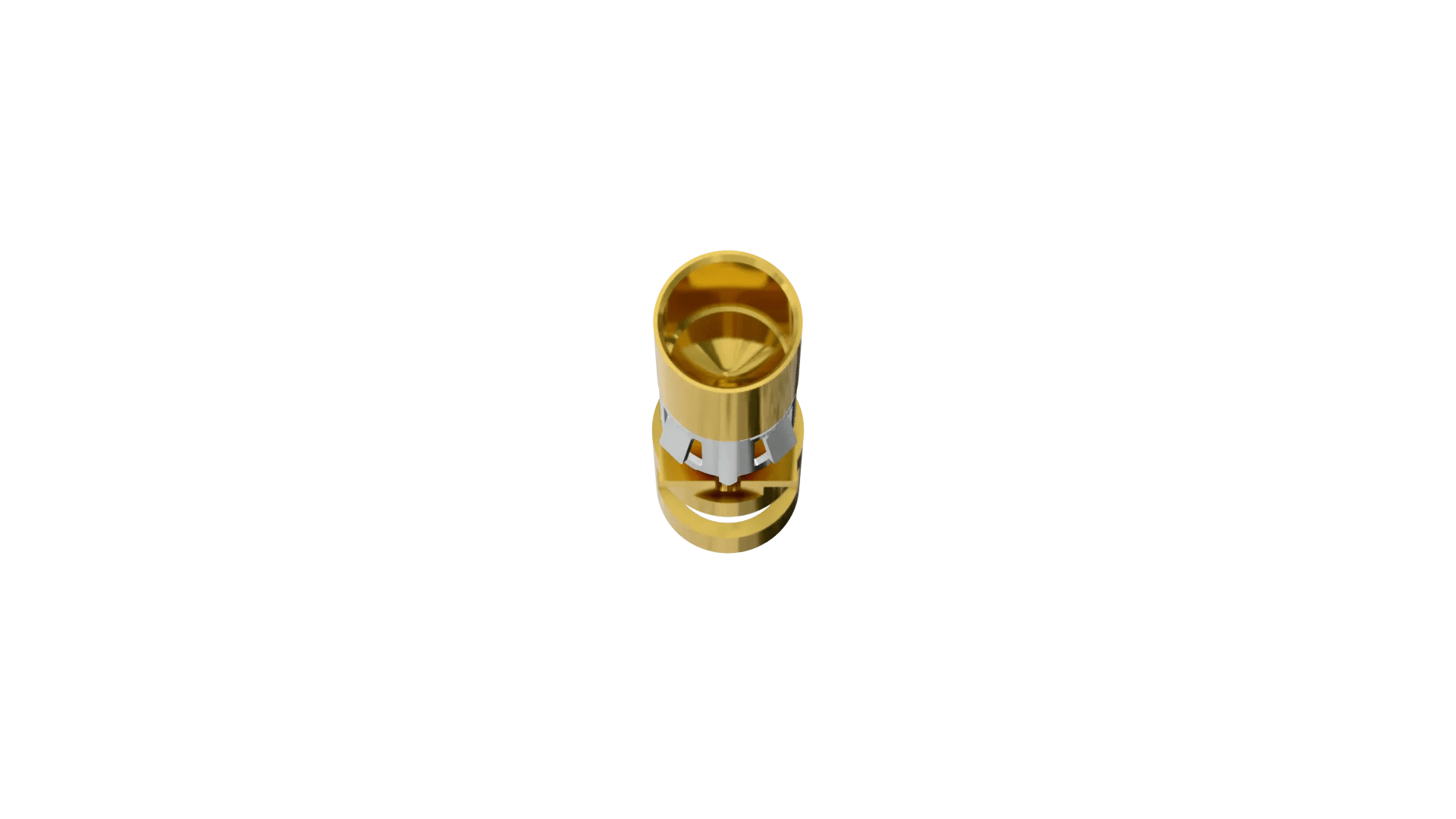

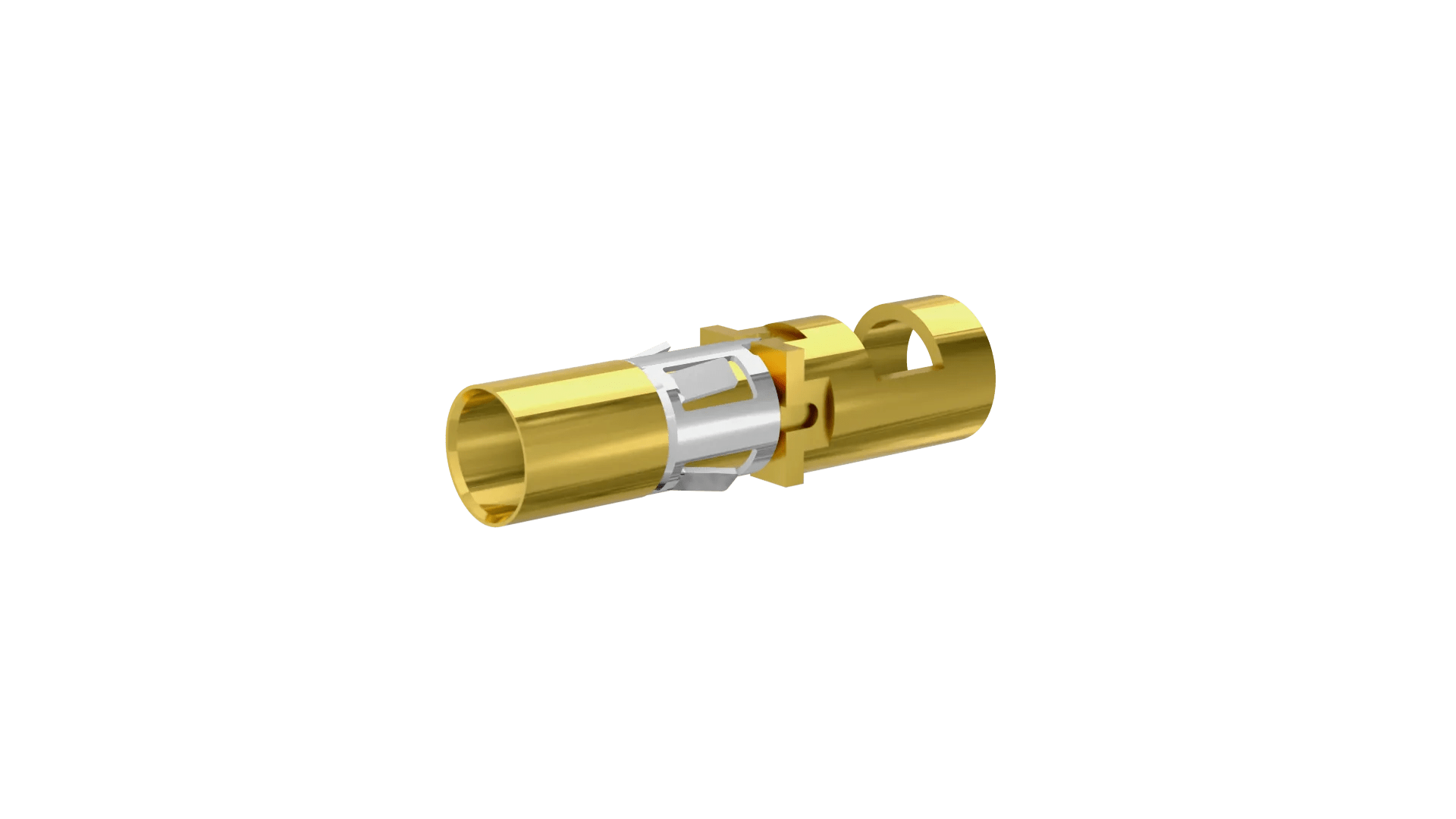

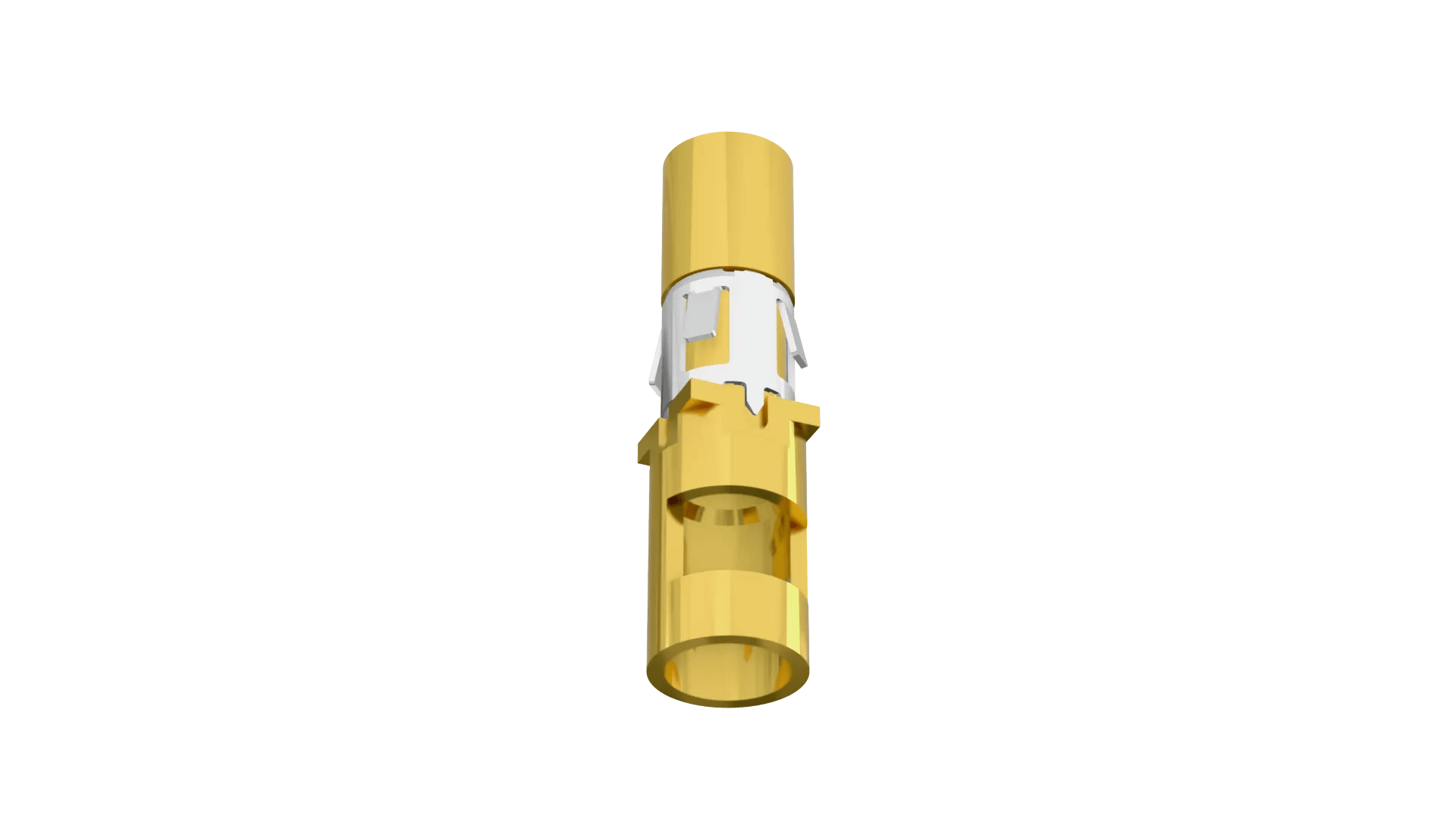

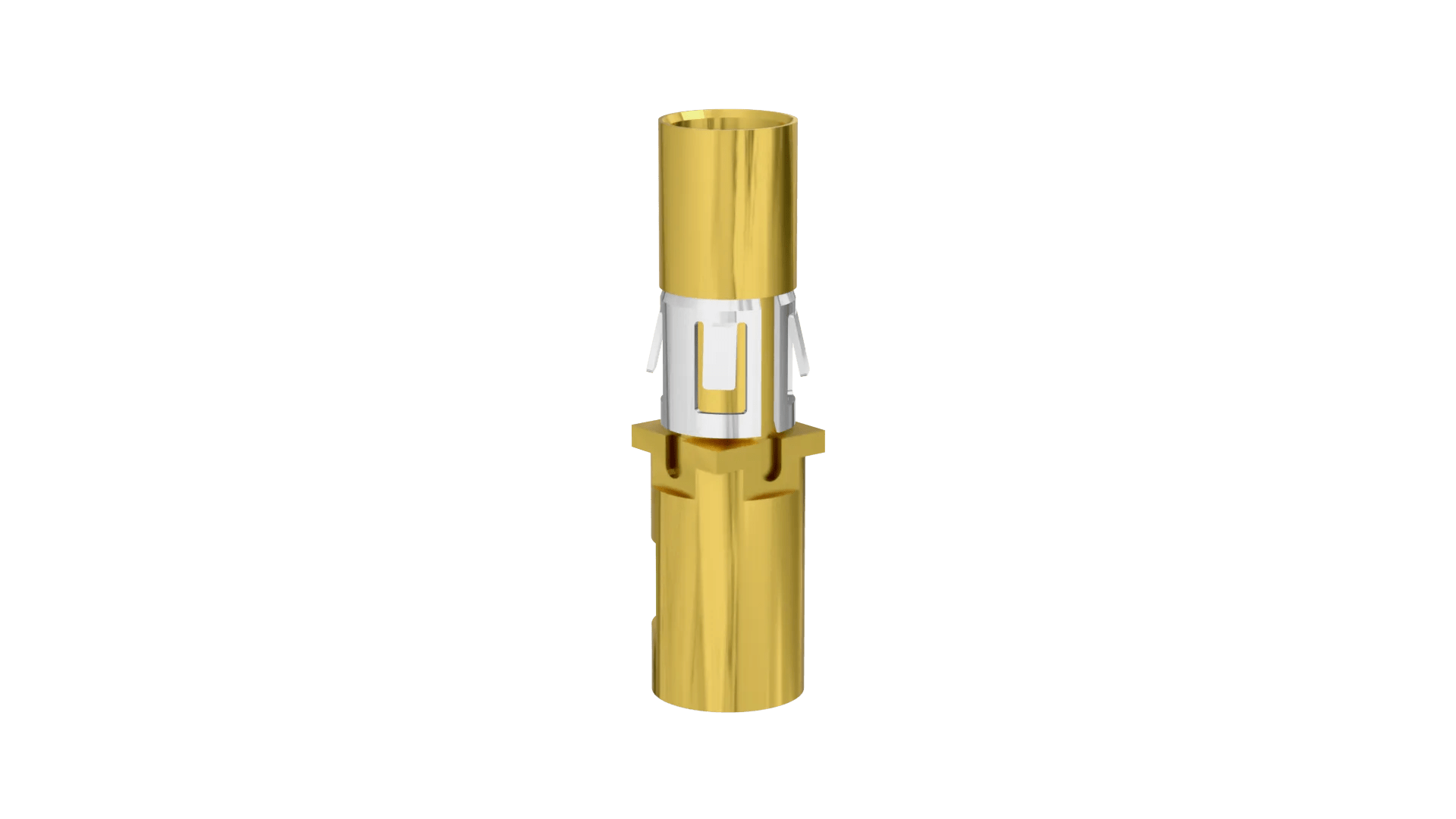

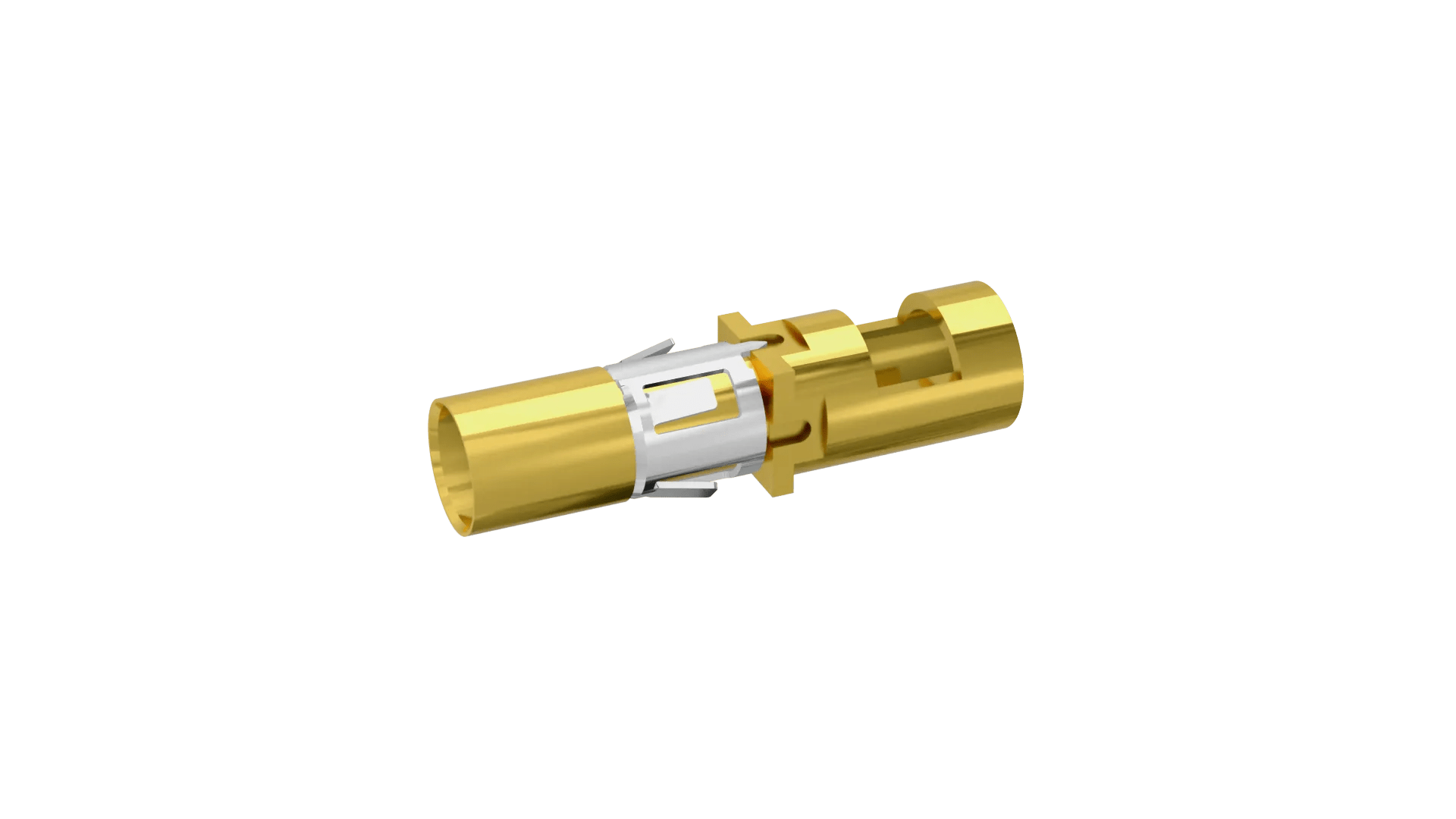

Female 12AWG Straight Solder Power Contact

4.00mm Pitch High-Reliability Connector - Datamate Power

Straight Solder, suitable for 12AWG cable.
Specified as 325 in a Mix-Tek connector part number. Use with any female Datamate Mix-Tek housing in a power/coax cavity.
Gold finish on contact area and termination.

Request Samples

Availability

M80-325 - Female 12AWG Straight Solder Power Contact

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

4.00mm (0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder)

Cable Conductor Size:

12AWG

Current Rating:

20A max per contact

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Brass

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.376g

Overall Dimensions (L x W x D) in mm:

12.70 x Ø3.38

Availability

3,161 in stock

Questions & Answers Ask a Question

What is the smallest gauge of stranded wire that can be reliably crimped into the M80-325 contact, would it work with 16AWG?

Contact M80-325 is not a crimp contact – it is intended to be soldered. It is designed to accommodate 12AWG wire gauge. Each of our power contacts for Datamate Mix-Tek is designed for a different gauge wire. M80-327 is designed to solder to 16AWG wire. Sorry, but we have not tested contact M80-325 soldered to a 16AWG cable – it might perform adequately, but you would need to carry out your own testing to confirm this.
