M80-0110001

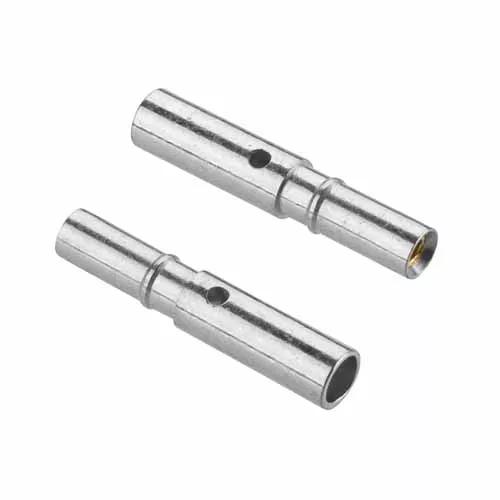

Female 22AWG Cable Crimp Contact

2.00mm Pitch High-Reliability Connector - Datamate

  • Large Bore signal contact, for 22 AWG wire (Ø1.1mm max insulation).
  • Use with all types of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
  • Gold contact clip, Tin shell.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.062g

Overall Dimensions (L x W x D) in mm:

7.45 x Ø1.46

Availability

250,081 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 20353
Distributor Farnell
Location Europe
Quantity (Updated Daily) 3520
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 2621
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2354
Distributor Iconnexion Asia Pte Ltd
Location Asia
Quantity (Updated Daily) 456
Distributor Genalog
Location Europe
Quantity (Updated Daily) 448
Distributor Newark
Location USA
Quantity (Updated Daily) 46

Stock held by Harwin: contact distributor to purchase.

Distributor Harwin
Location Global
Quantity (Updated Daily) 220283

Questions & Answers Ask a Question

Can we use crimp contact M80-01100xx with 24 AWG wire?

If you require a crimp contact for 24AWG, please use instead crimp contact M80-01300xx. There is a risk of splitting the crimp bore if you try and crimp 24 AWG wire into an M80-01100xx contact. Please note you can mix M80-011, M80-013 and M80-019 contacts in the crimp housings, they all fit in identical cavities in the housings.

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-011.pdf

ZIP

M80-0110001 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-011 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M80-0110001_3D.pdf

PDF

Catalog page - Datamate J-Tek Female Spare Crimp Contacts

PDF

Catalog page - Datamate L-Tek Female Spare Crimp Contacts

PDF

Catalog page - Datamate Mix-Tek Female Signal Contacts

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors
