Home > M80-0110005
Active Product

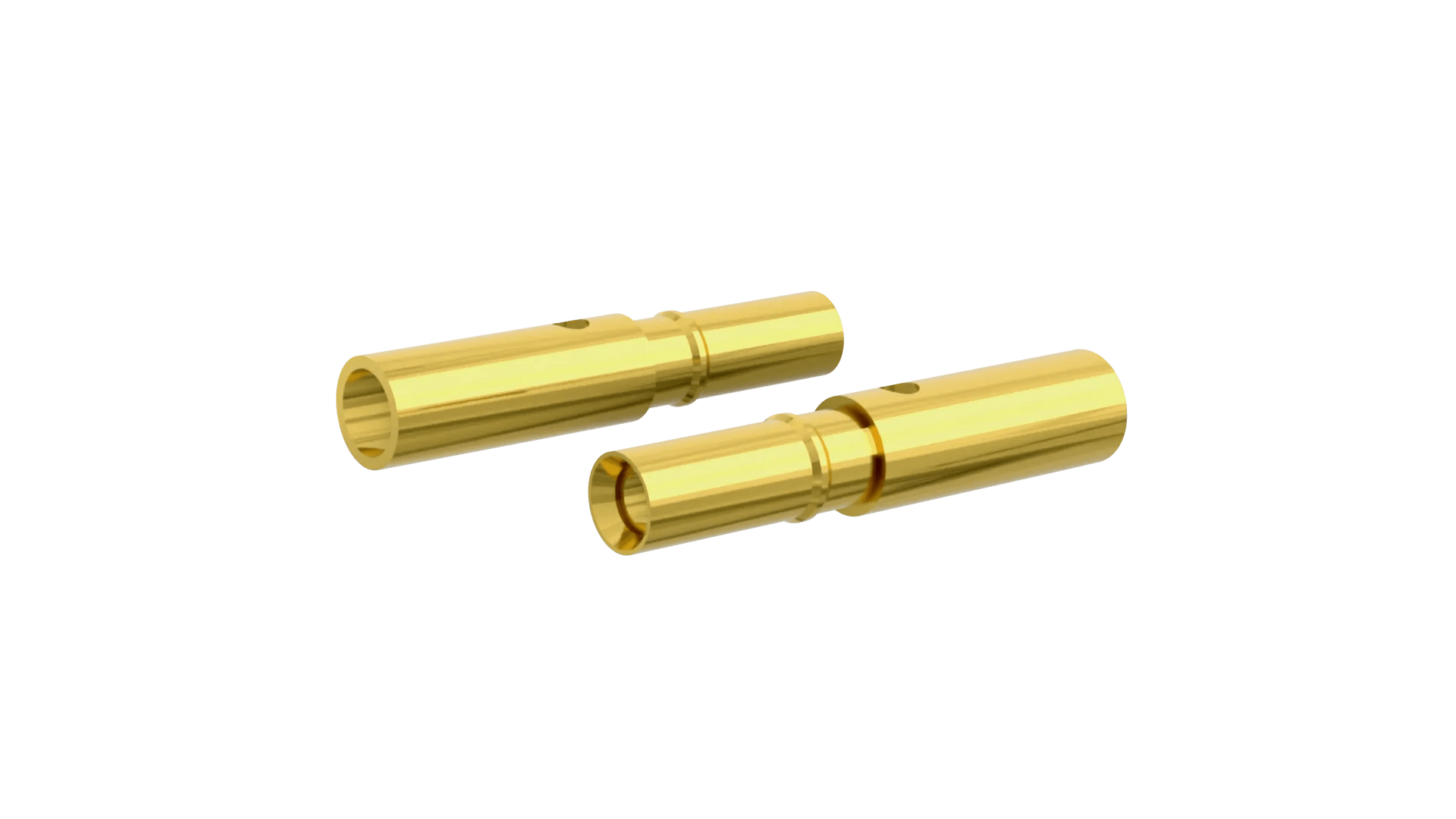

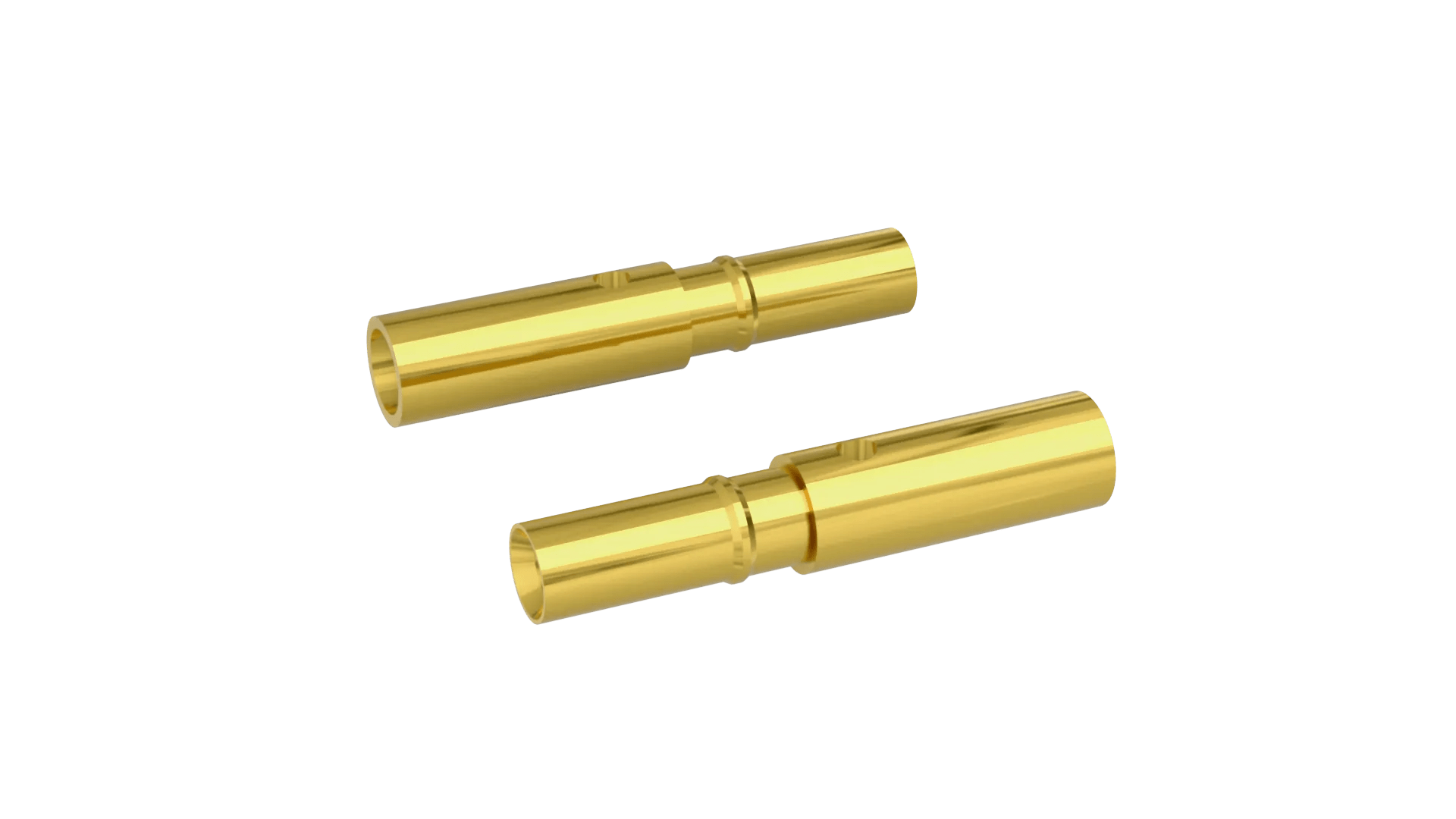

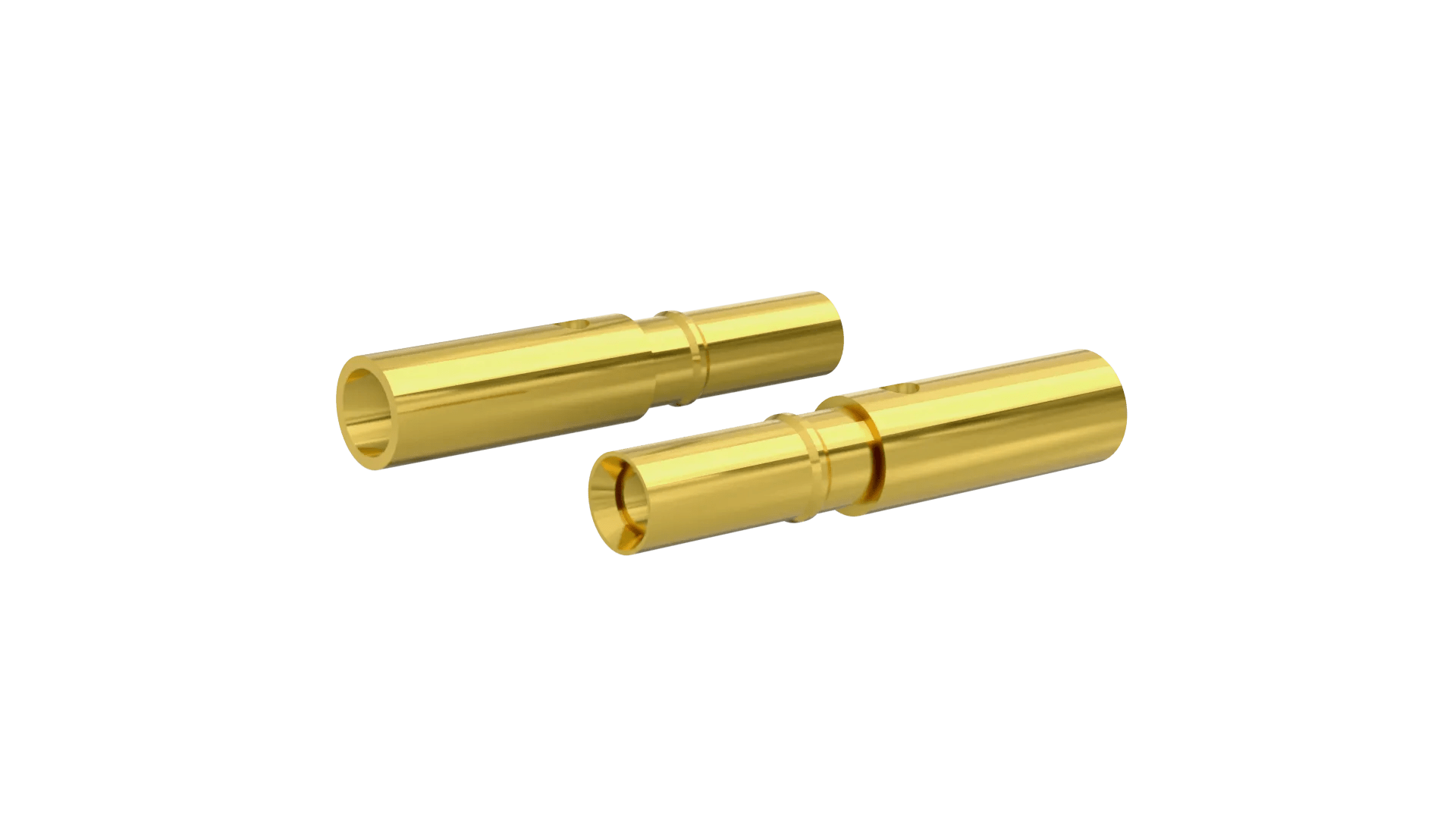

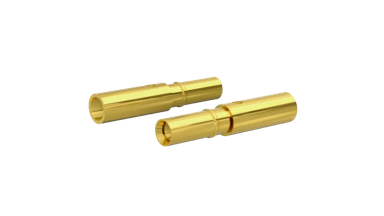

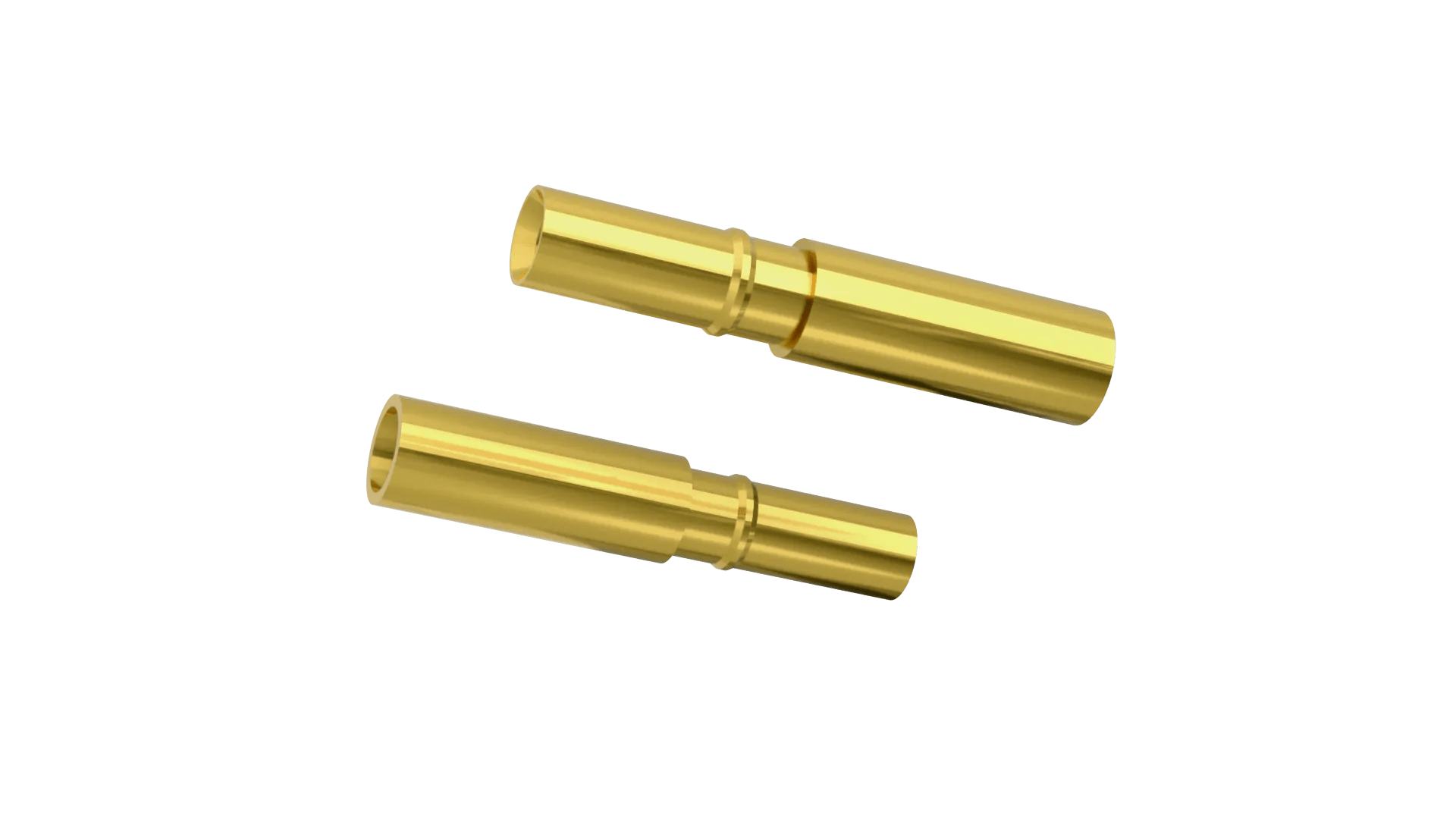

M80-0110005

Female 22AWG Cable Crimp Contact

2.00mm Pitch High-Reliability Connector - Datamate

Add to Favorites

94,452 in stock   Check availability

9 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Large Bore signal contact, for 22 AWG wire (Ø1.1mm max insulation).
  • Use with all types of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
  • Gold finish on contact area and termination.

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

22AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3.3A max individual contact, 3A max simultaneous (25°C)

Operating Temperature:

-55°C to +125°C

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.061g

Overall Dimensions (L x W x D) in mm:

7.45 x Ø1.46

Frequently Asked Questions Ask a Question

I don’t have the hand crimping tool – do you offer a service of pre-crimped connectors?

We have a wide variety of pre-cabled contacts and full assemblies. For individual contacts fitted with cable, we have options in 150mm and 300mm lengths (single and double-ended). We also have a wide range of ready-made cable asemblies. If you need something more specific to your requirements, you can try our Cable Generator service, or contact our Experts.

Was this answer useful?

Can we use crimp contact M80-01100xx with 24 AWG wire?

If you require a crimp contact for 24AWG, please use instead crimp contact M80-01300xx. There is a risk of splitting the crimp bore if you try and crimp 24 AWG wire into an M80-01100xx contact. Please note you can mix M80-011, M80-013 and M80-019 contacts in the crimp housings, they all fit in identical cavities in the housings.

Was this answer useful?

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

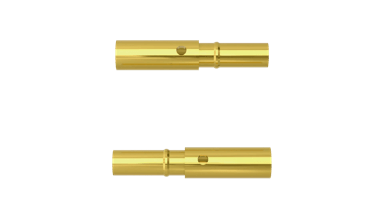

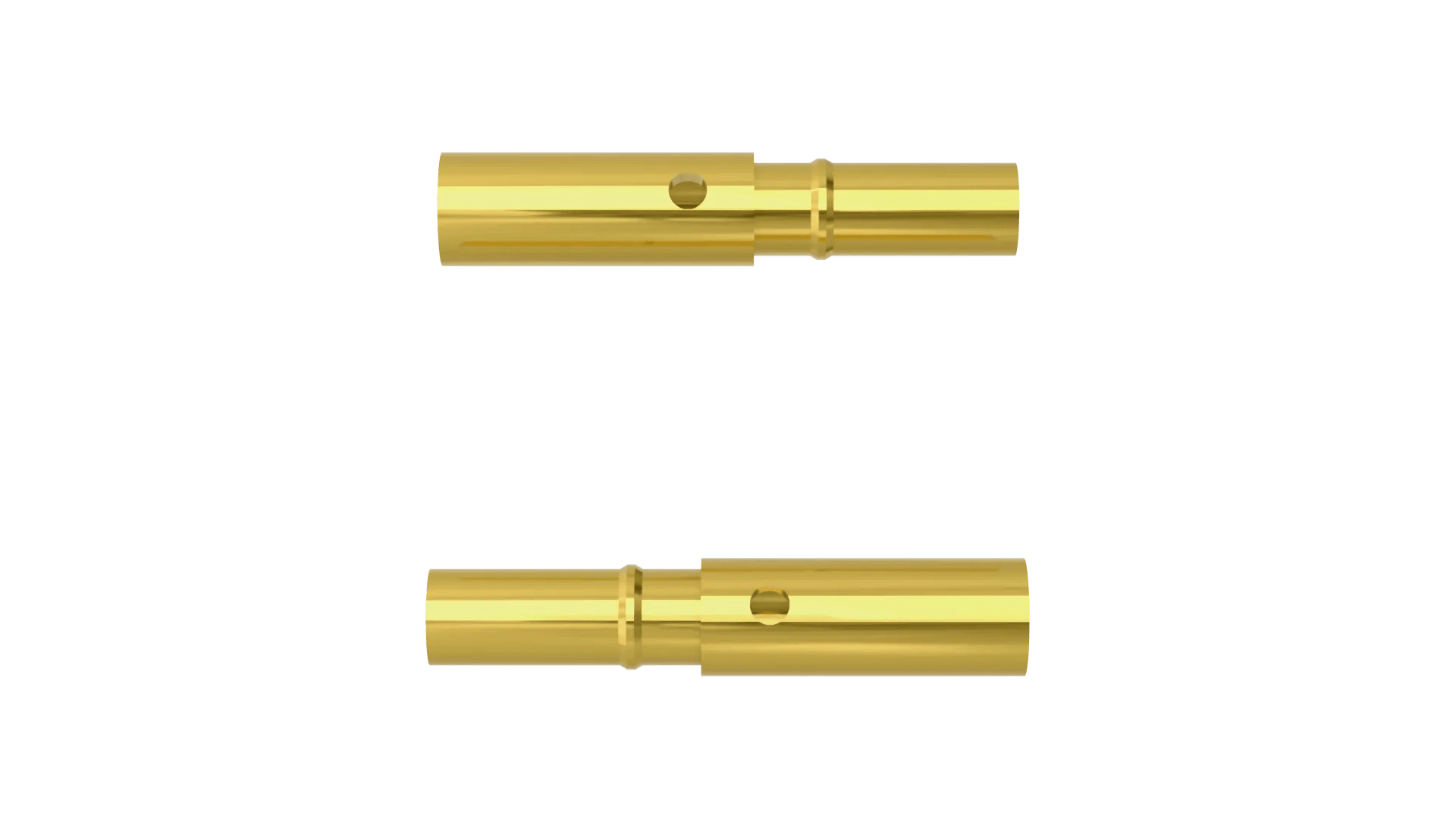

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer useful?

Downloads

TECHNICAL DOCUMENTS

TEST REPORTS

ENVIRONMENTAL COMPLIANCE

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF Download

INSTRUCTION SHEETS

OTHER DOWNLOADS
