G125-324129600

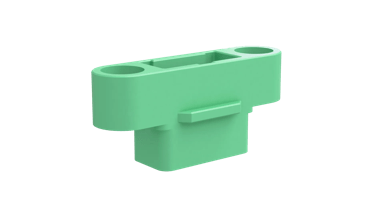

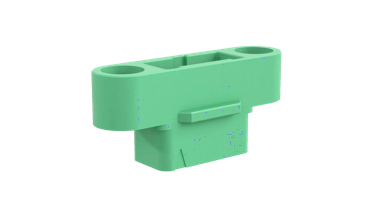

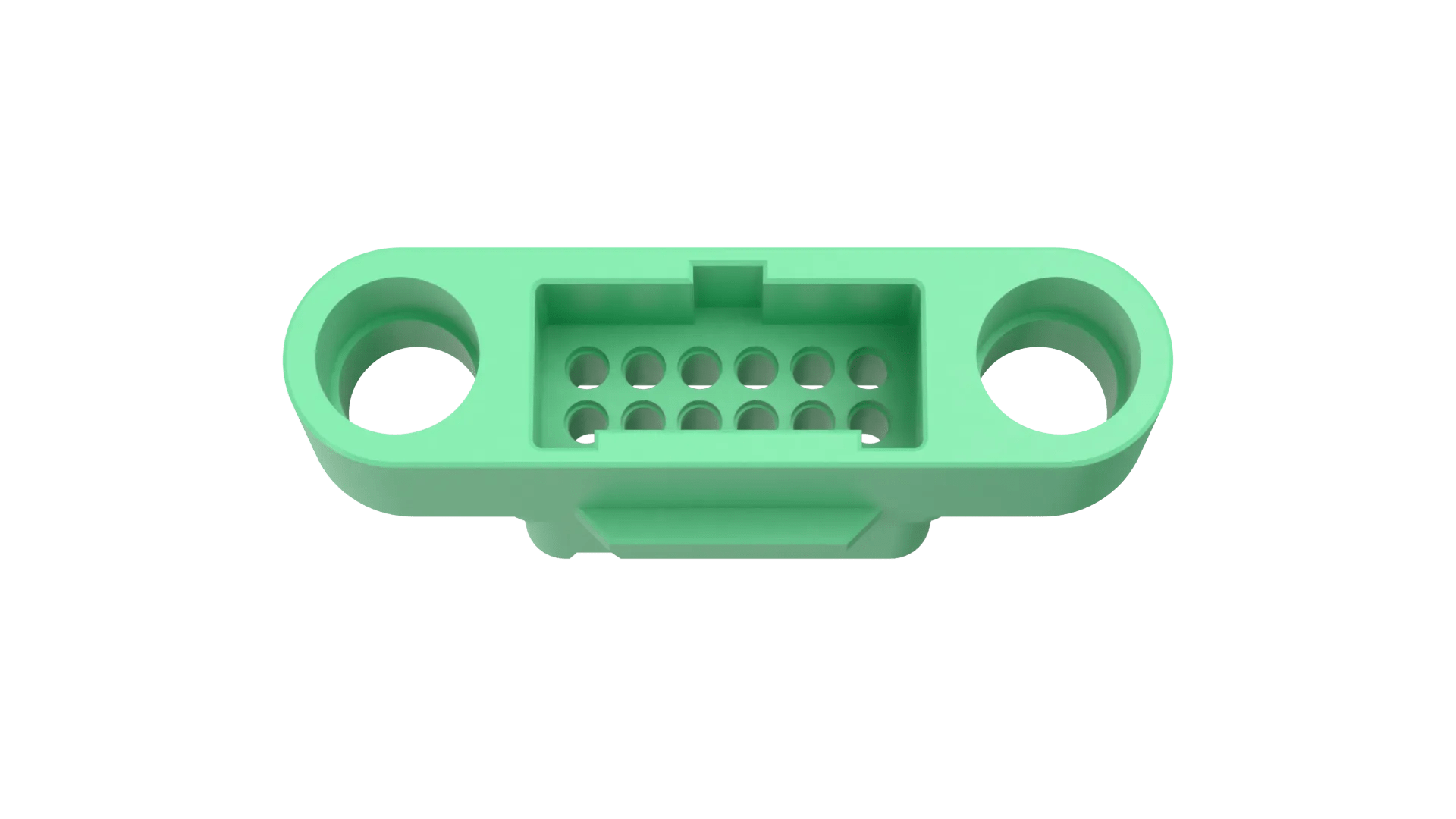

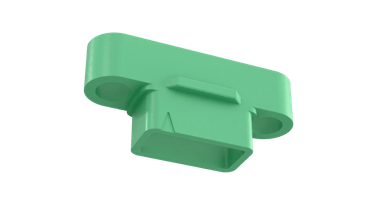

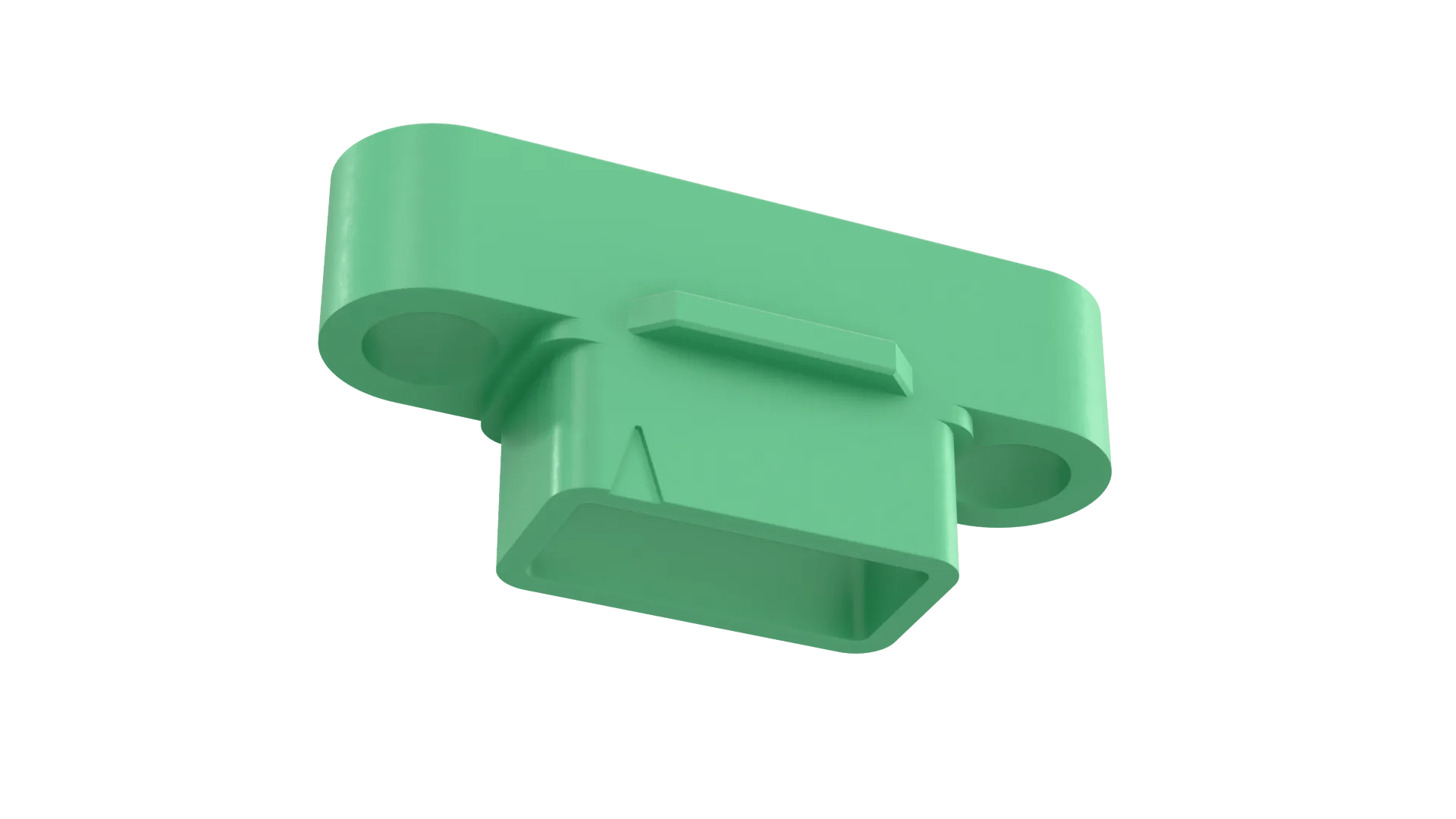

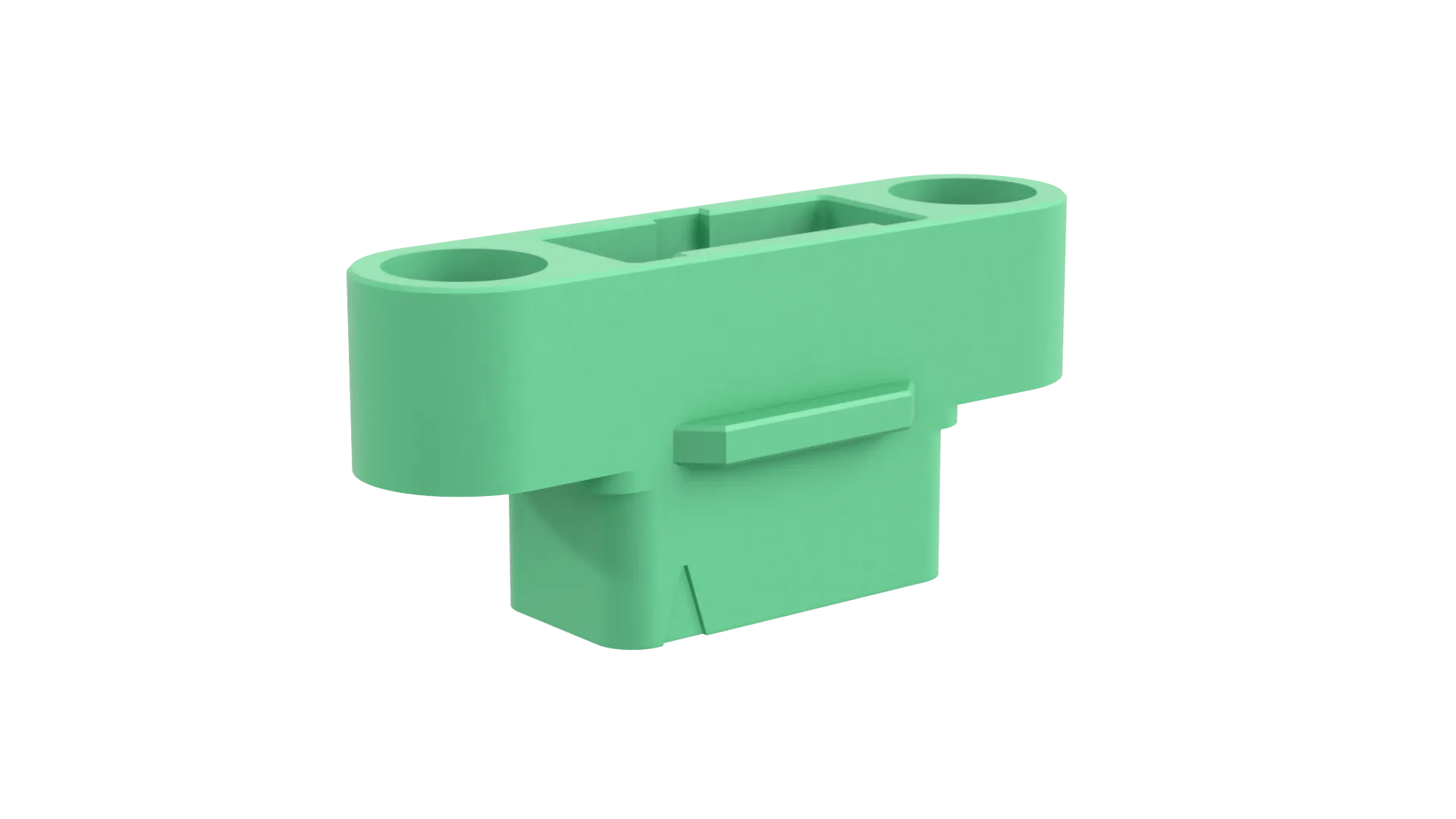

6+6 Pos. Male DIL Cable Housing, no Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

  • Male Double Row Crimp Connector Housing without screw fixings – 12 (6+6) contacts. Compatible with metal backshell for cable (G125-96412F1) for reverse fix mating requirements.
  • Use with crimp contacts G125-1010005 (for 26 AWG), G125-1020005 (for 28-32 AWG), or choose from the pre-wired contacts G125-MW series.
  • For complete pin numbering or pin out information, see Component Specification C125XX.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Male/Plug

Connector Orientation:

Straight

Connection Type:

Cable Housing

Mating Pin Size:

Ø0.4mm

Current Rating:

2.8A max individual contact, 2A max simultaneous (25°C)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

None

Polarising Features:

Yes

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Rows:

2

Number of Signal Contacts:

12

Materials

Housing Material:

Polyamide (Nylon) 4T

Housing Colour:

Green

Housing Material UL Rating:

UL94V-0

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.464g

Overall Dimensions (L x W x D) in mm:

18.95 x 6.50 x 8.40

Availability

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Currently made to order*

* Please request minimum quantities, lead times and pricing from an authorized distributor.

Questions & Answers Ask a Question

No questions have been asked yet. Click here to ask a question.

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - G125-324XX9600.pdf

ZIP

G125-324129600 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT030 - Gecko (G125 Series) - Electrical, Mechanical and Environmental

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (6-Jul-2020) including 209 SVHC (25-Jun-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (16-Oct-2019) - includes all material legislations

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

Product Training Module - Cable Products from Harwin

PDF

IS-37 - Z125-900 Hand Crimp Tool Instruction Sheet

PDF

IS-38 - Z125-902 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

Catalog page - Gecko Screw-Lok Specification, Pin Numbering

PDF

Catalog page - Gecko Screw-Lok Mating Profiles

PDF

Catalog page - Gecko Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Gecko-SL High-Reliability Connectors
