G125-96412F1

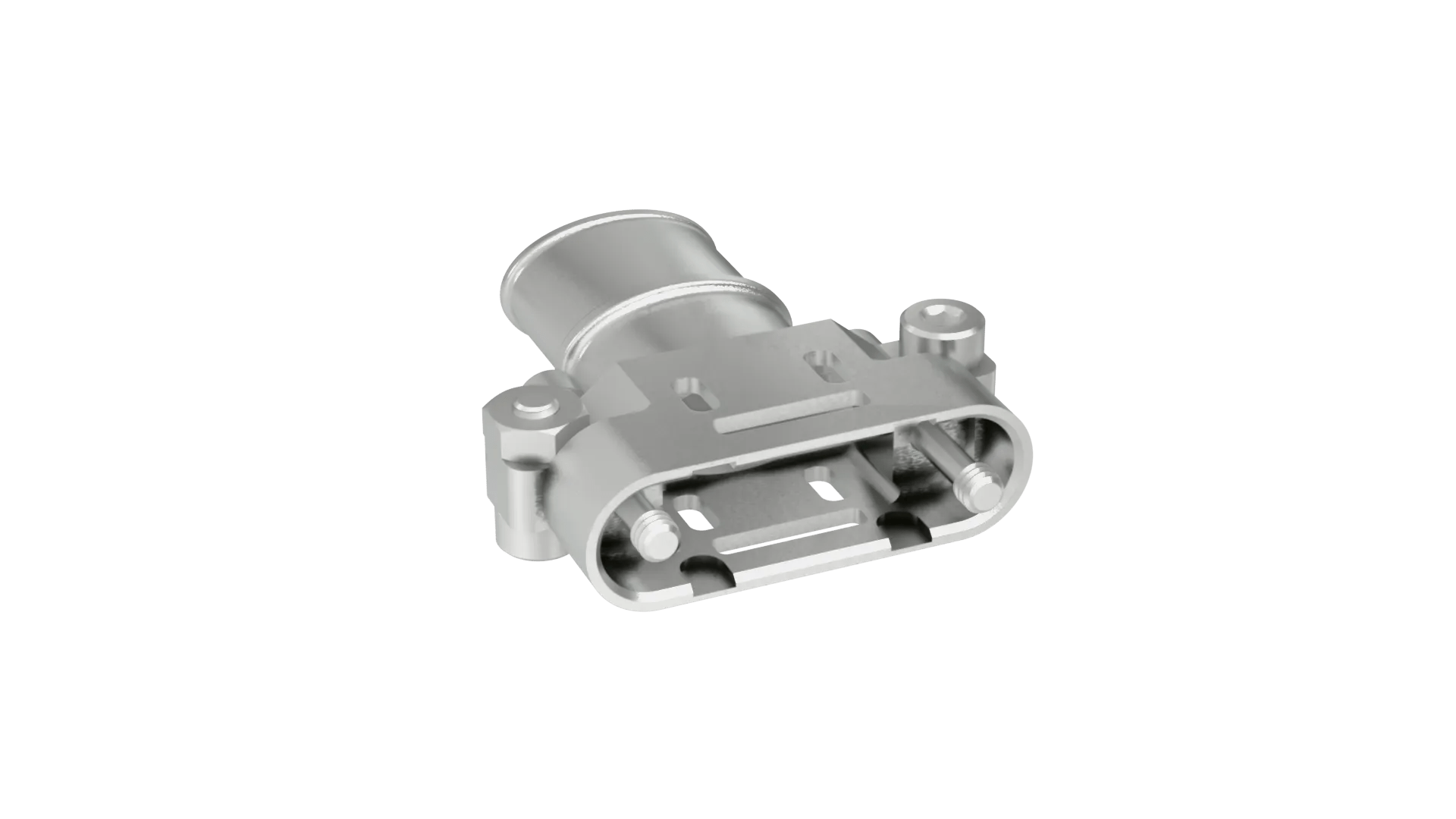

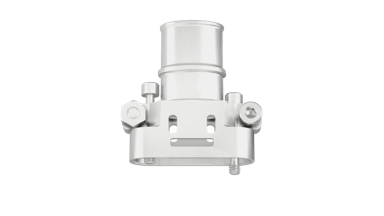

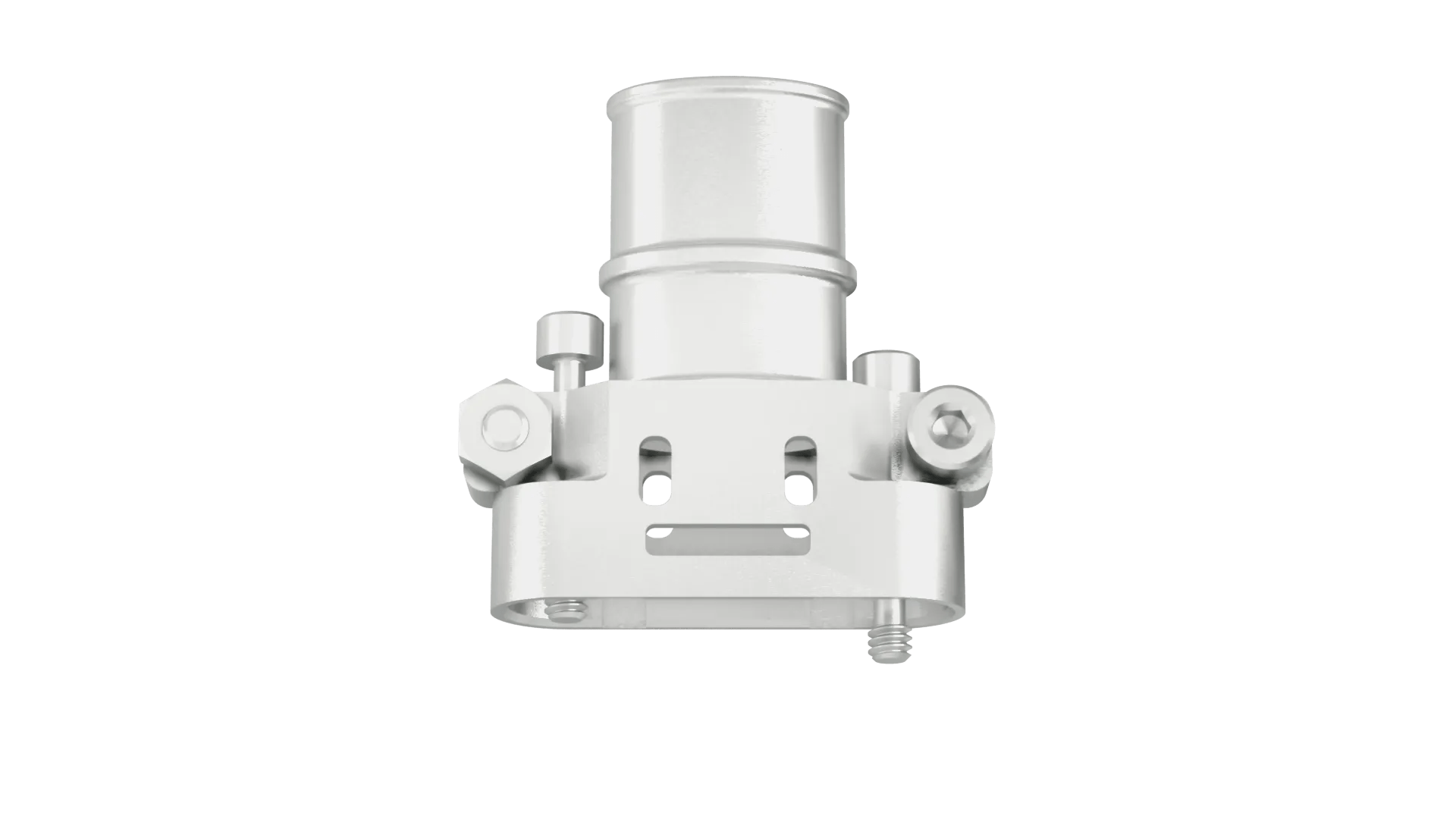

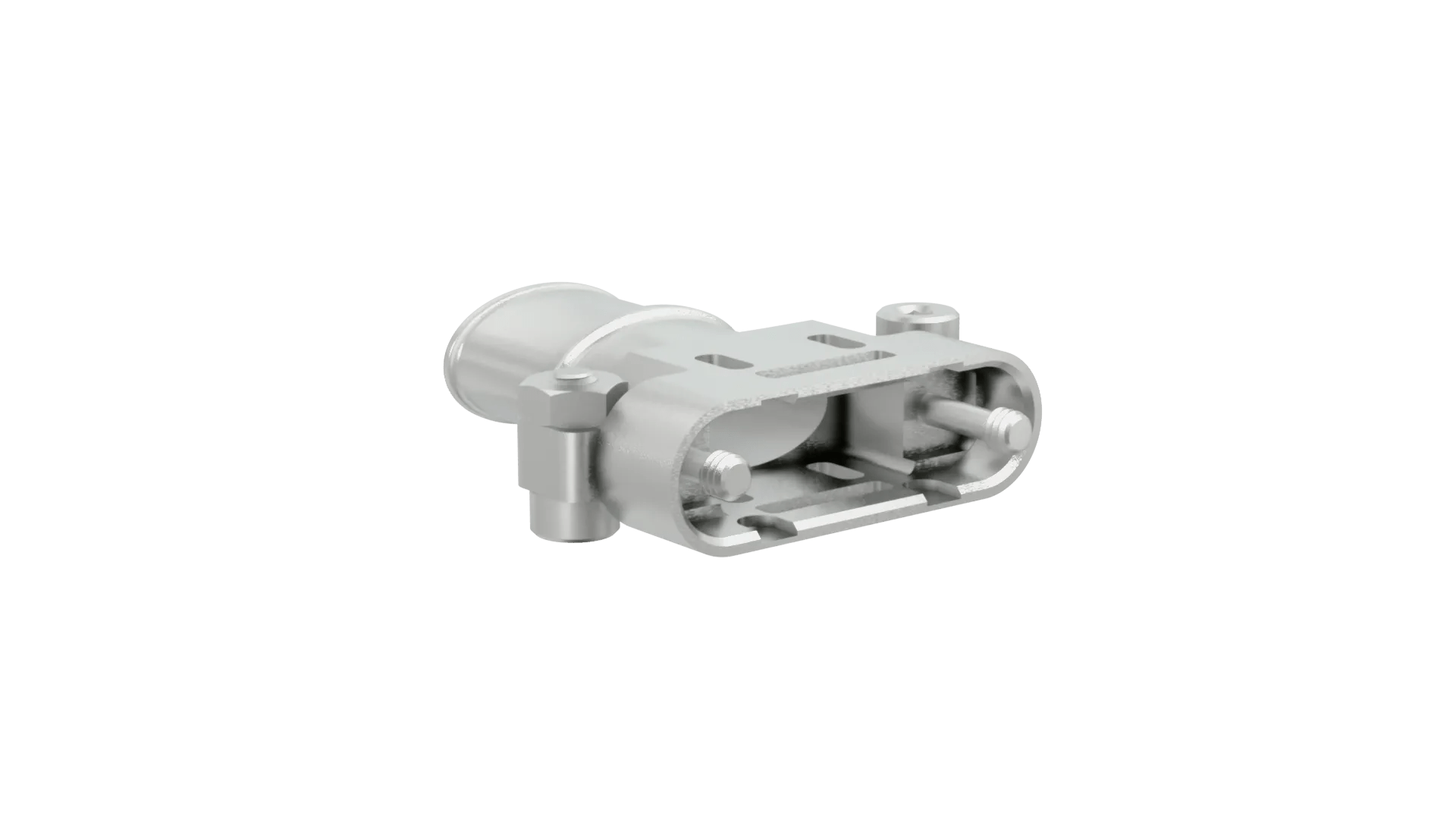

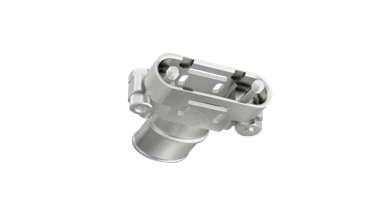

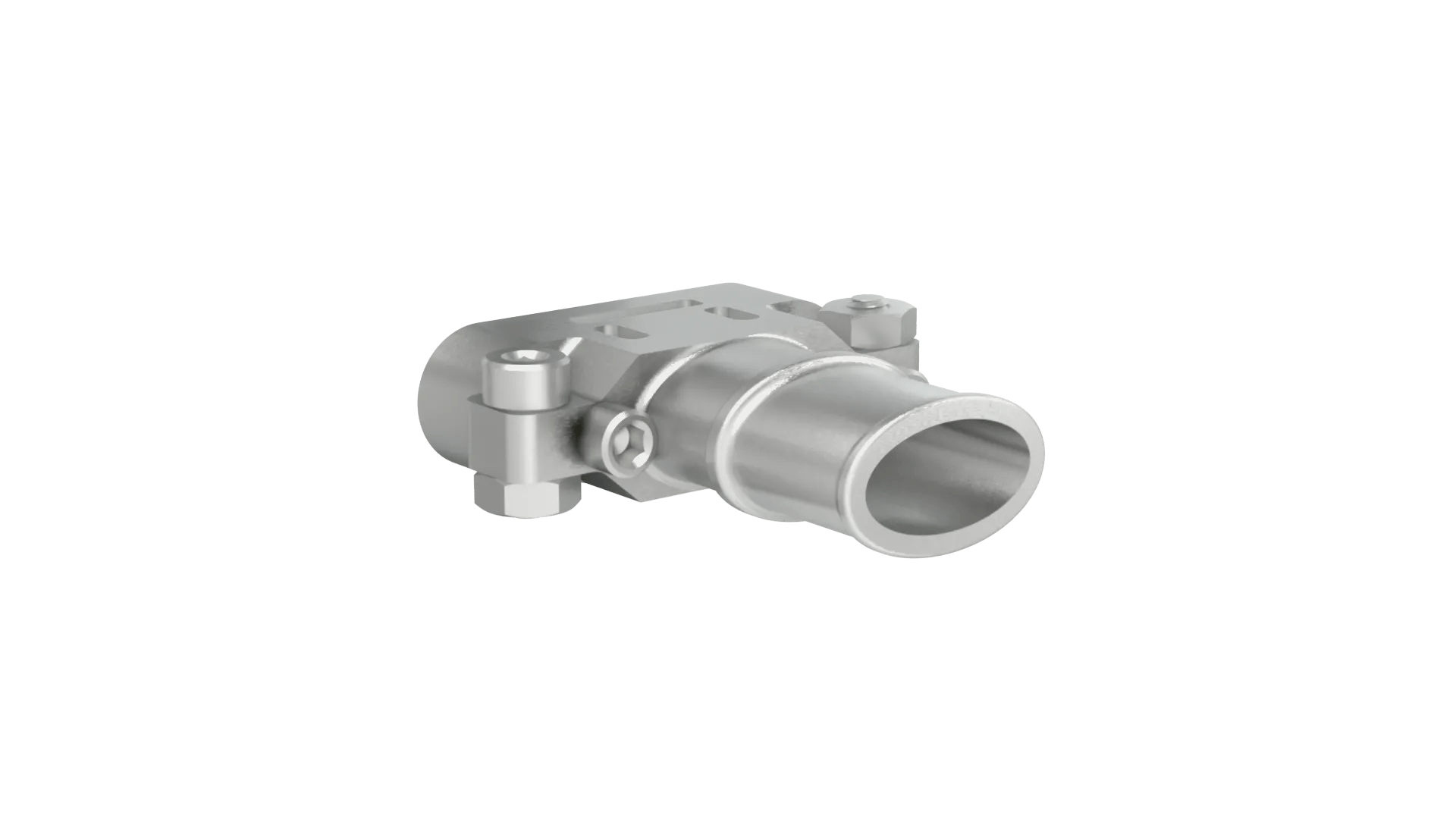

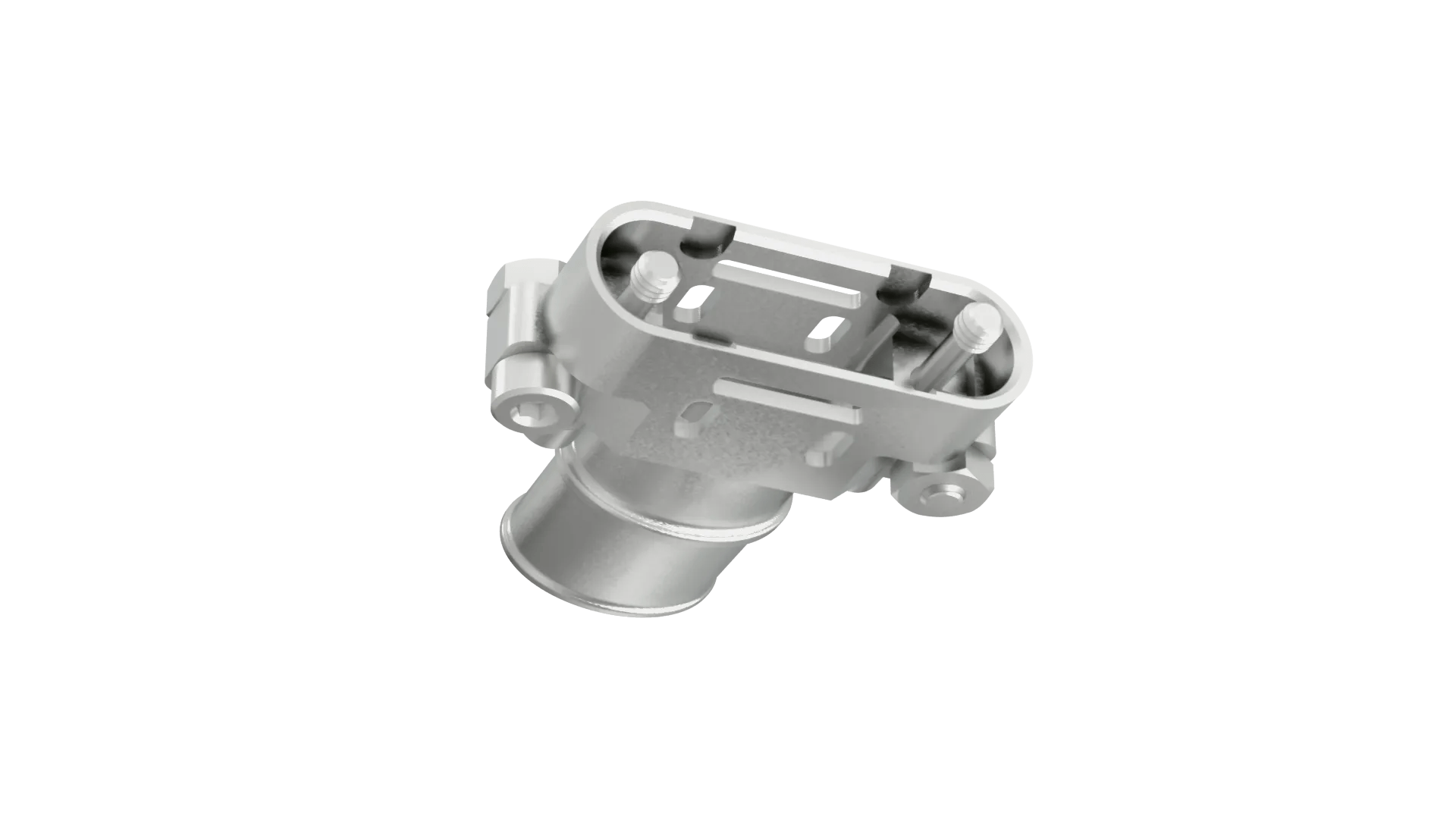

6+6 Pos. Cable Metal Backshell for Gecko-SL, Screw-Lok
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
36 in stock Check availability
9 similiar products View products
Samacsys account required
No login is required
Product Description
- Metal Backshell kit for cable connectors – includes 2 metal hood halves, extended fixing screw-loks with hex socket heads and short screws & nuts for joining the halves. For spare extended hood screw-loks, order G125-4440000.
- Use with female crimp housing G125-224129600 (12 contact) for standard gender fixings, or male crimp housing G125-324129600 (12 contact) for reverse gender fixings. Mate-before-Lock.
- Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Operating Temperature:
-65°C to +150°C
Style of Jackscrews:
Floating Screw-Lok with Hex Socket Head (Standard Gender or Reverse Fix)
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
12
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
5.315g
Overall Dimensions (L x W x D) in mm:
23.05 x 5.70 x 23.80
Thread Size:
M2
Frequently Asked Questions Ask a Question
What torque value should be used for these screw-loks?
The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).
