S8401-46

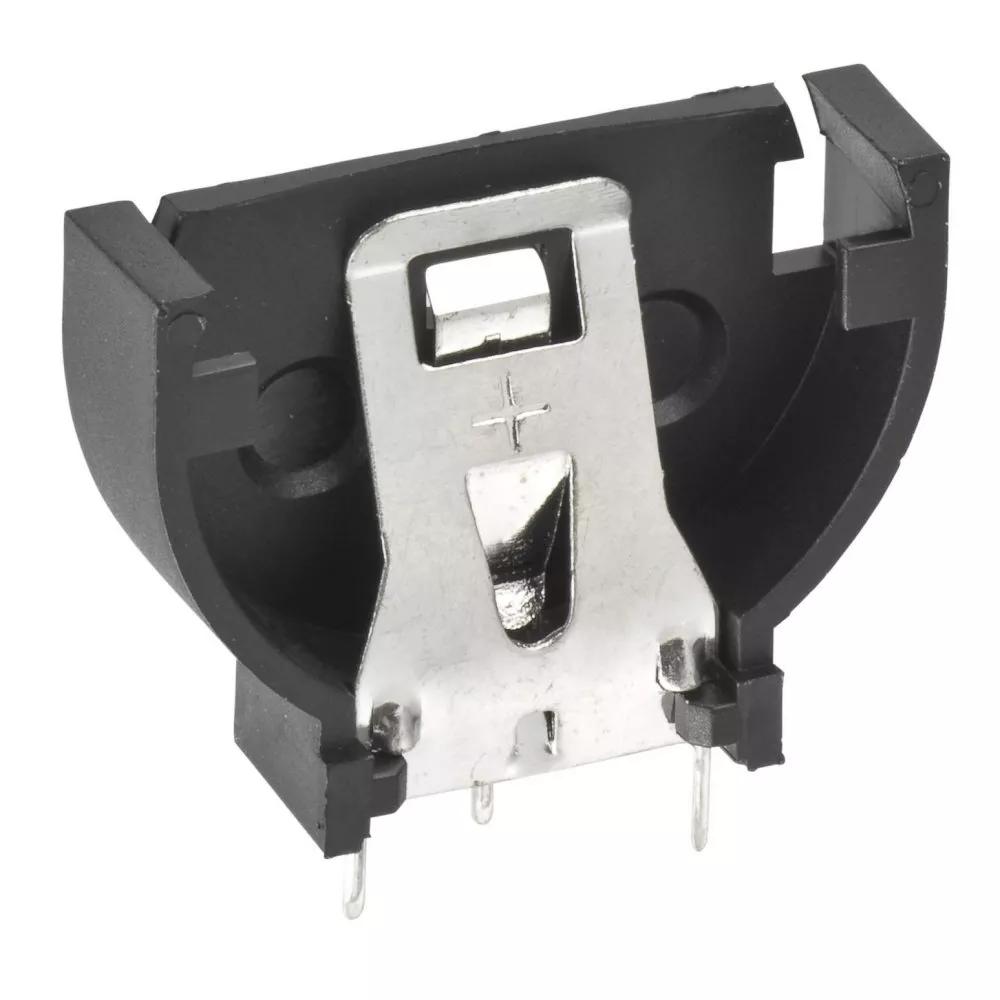

Throughboard Battery Coin Cell Holder/Retainer

Hardware - PCB Battery Holder

Order Sample

Add to Favorites

51,472 in stock Check availability

2 similiar products View products

Samacsys account required

Download

No login is required

Product Description

Suitable for CR2032 and BR2032 (Ø20mm x 3.2mm) Coin Cell Batteries.
Vertical for minimal PCB footprint. Tin finish on contact area and termination.
Supplied in Tape and reel style packaging, but with components flat, so unsuitable for automated placement.

S8401-46 - Throughboard Battery Coin Cell Holder/Retainer

Samacsys account required

Download

No login is required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Vertical

Connection Type:

PC Tail / Throughboard

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Entry Style:

Top Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Housing Material:

Polyamide (Nylon) 46

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Reeled flat pockets

Individual Part Weight:

1.019g

Overall Dimensions (L x W x D) in mm:

22.90 x 6.60 x 20.20

Height of Connector above PCB:

16.90mm

Length of Throughboard Tail:

3.30mm
