S8421-45R

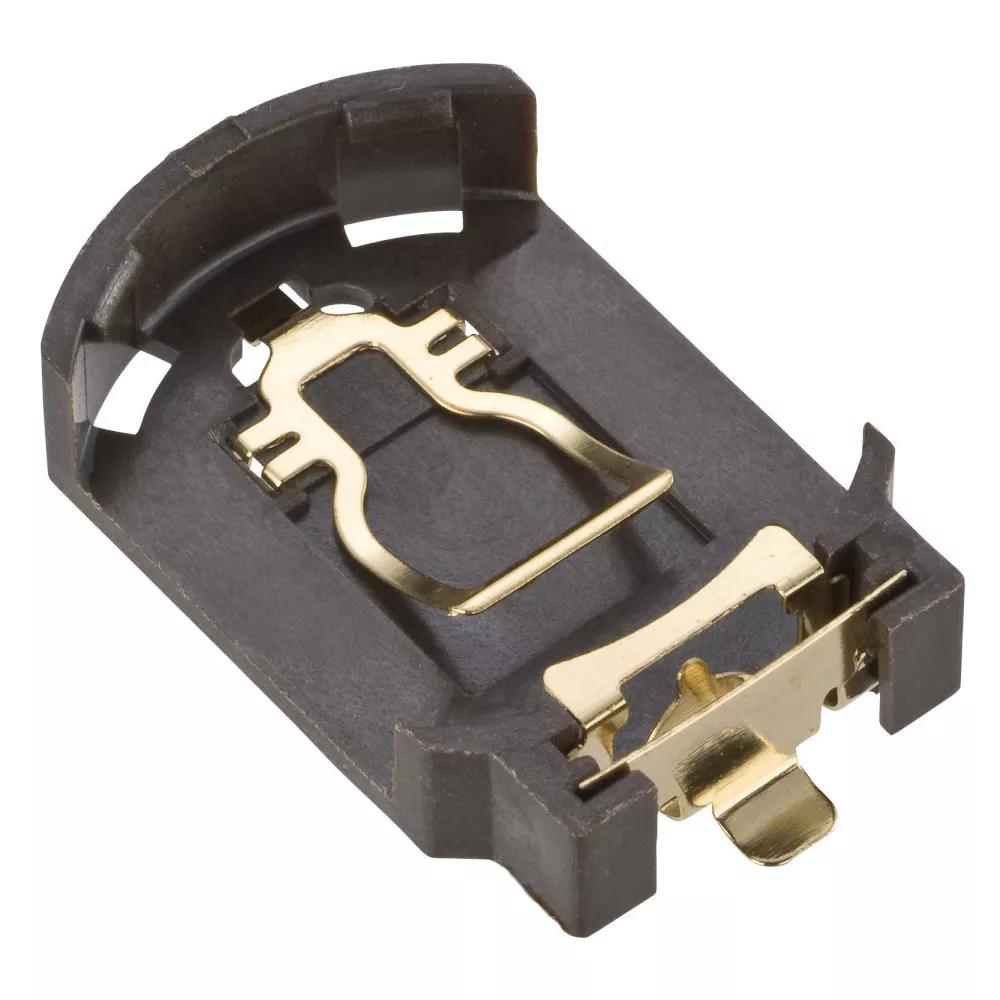

SMT Battery Coin Cell Holder/Retainer (T+R)

Hardware - PCB Battery Holder

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

Suitable for CR2032 (Ø20mm x 3.2mm) Coin Cell Batteries.
Surface Mount, supplied in Tape and Reel packaging. Gold finish on contact area and termination.

S8421-45R - SMT Battery Coin Cell Holder/Retainer (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Entry Style:

Top Entry

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Phosphor Bronze

Housing Material:

PPS

Housing Colour:

Brown

Housing Material UL Rating:

UL94V-0

Packaging Style:

Tape and Reel

Individual Part Weight:

0.863g

Overall Dimensions (L x W x D) in mm:

24.75 x 15.60 x 5.30

Height of Connector above PCB:

5.30mm

Frequently Asked Questions Ask a Question

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
