S8211-46R

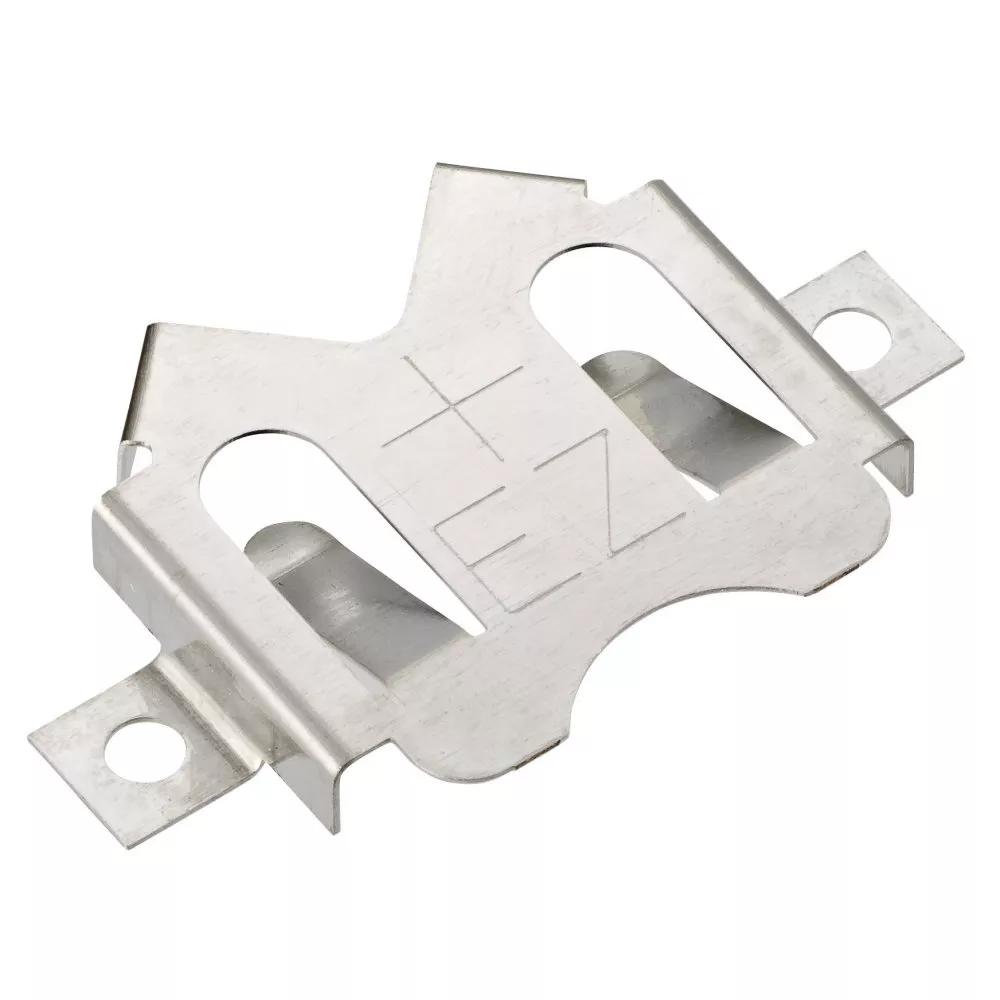

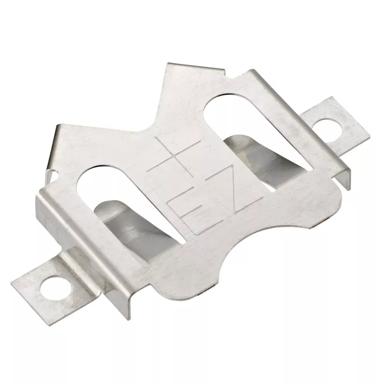

SMT Battery Coin Cell Holder/Retainer (T+R)

Hardware - PCB Battery Holder

Order Sample

Add to Favorites

Loading… Check availability

3 similar products View products

Traceparts account required

Product Description

Suitable for CR2016 / CR2025 / CR2032 and BR2016 / BR2020 / BR2025 and others (Ø20mm) Coin Cell Batteries.
Low Profile. Tin finish on contact area and termination.
Surface Mount, supplied in Tape and Reel packaging.

S8211-46R - SMT Battery Coin Cell Holder/Retainer (T+R)

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Connector Orientation:

Horizontal

Connection Type:

Surface Mount (SMT)

Operating Temperature:

-40°C to +105°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Entry Style:

Side Entry

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Tape and Reel

Individual Part Weight:

1.023g

Overall Dimensions (L x W x D) in mm:

30.70 x 20.00 x 4.00

Height of Connector above PCB:

4.00mm

Frequently Asked Questions Ask a Question

This center contact is the negative contact when the battery is placed inside the holder. There is nothing soldered to this pad, it should be left clear of paste.

Was this answer useful?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?
