S70-220102045R

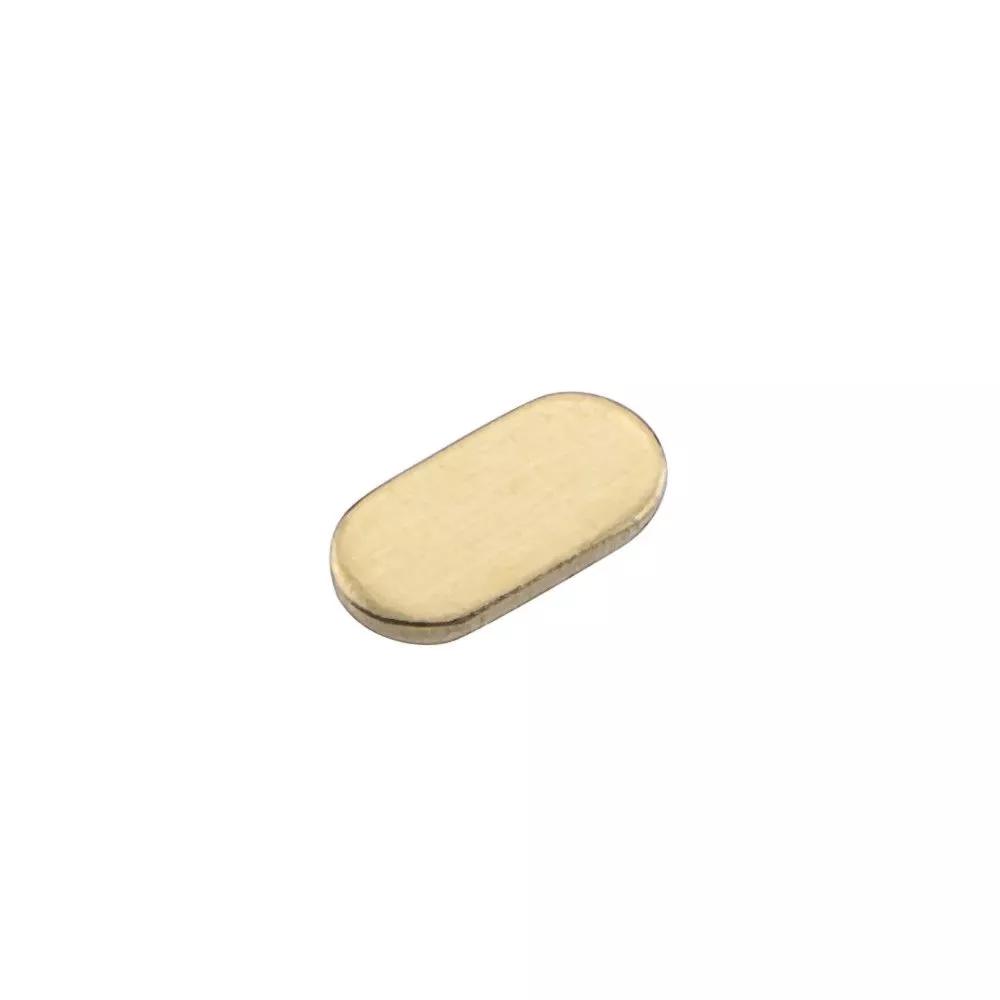

Oval SMT Contact Pad, 2.00 x 1.00mm, 0.2mm thick (T+R)

SMT Contact Pad

Add to Favorites

Technical Details

Specification

Current Rating:

6A

Operating Temperature:

-40°C to +180°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.003g

Overall Dimensions (L x W x D) in mm:

2.00 x 1.00 x 0.20

Height of Connector above PCB:

0.20mm

Availability

28,968 in stock

Info Circle

Low availability or made to order: This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order
Distributor Location Quantity (Updated Daily)
Distributor Farnell
Location Europe
Quantity (Updated Daily) 9000
Distributor Newark
Location USA
Quantity (Updated Daily) 9000
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 5520
Distributor Farnell
Location Europe
Quantity (Updated Daily) 2679
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2003
Distributor Newark
Location USA
Quantity (Updated Daily) 766

Questions & Answers Ask a Question

Why is there no voltage rating for this contact?

Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.

What is the voltage rating for the contact pad at 6A?

Voltage rating is based on the maximum voltage, with a safety margin (can be calculated at 33% to 66% of the maximum voltage). However, to find the maximum voltage, it has to be tested for the voltage level at which flashover occurs – and this depends on the gap to the next nearest contact or other metal object (like the enclosure). As this contact pad is a single contact, and not a row of contacts, we have no control over the distance to the next nearest metal object – this will depend on your design. You will therefore need to evaluate and test for this within your specific layout, sorry.

I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?

These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
