EU RoHS Status:
-40°C to +180°C
Max Solder Temperature: 260°C for 10 seconds
Can be cut to another size:
Number of Signal Contacts:
Finish / Plating on Termination:
Finish / Plating on Contact Surface:
Base Material of Contact:
Tape and Reel
Individual Part Weight:

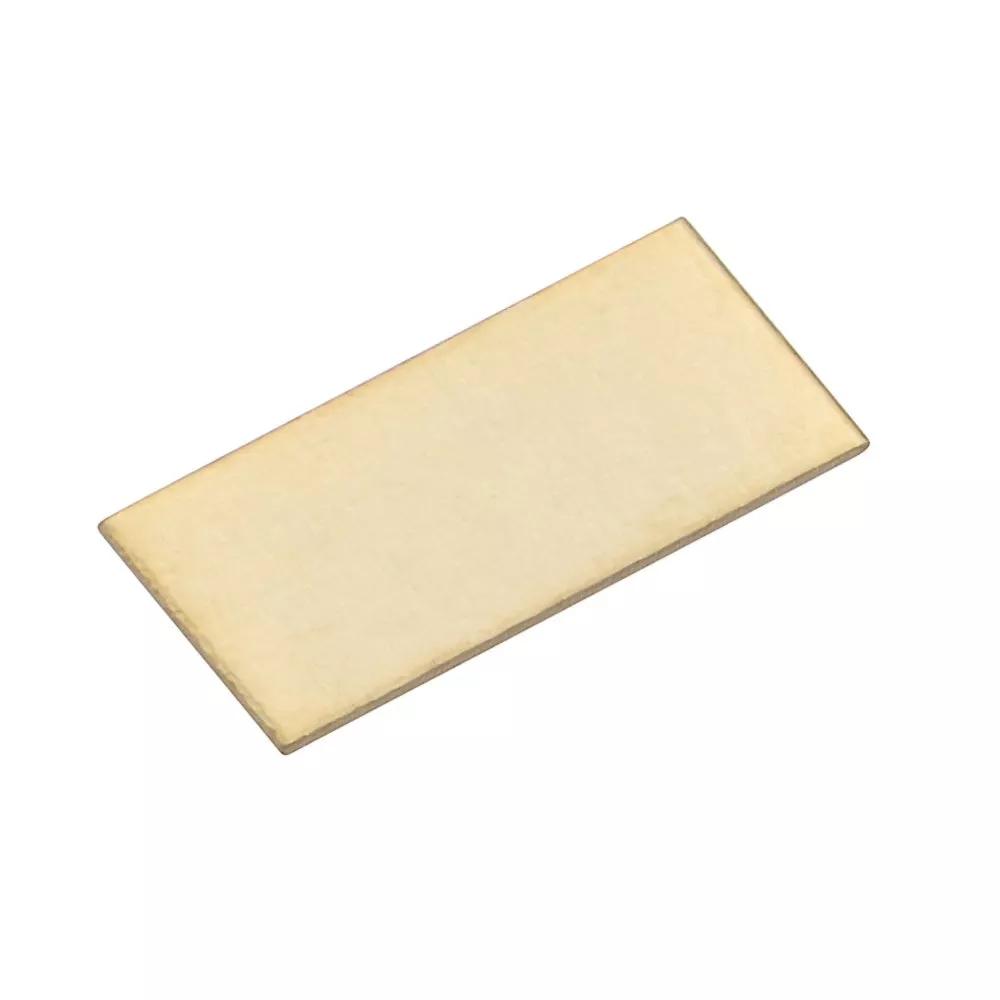

Overall Dimensions (L x W x D) in mm:
3.80 x 1.80 x 0.10
Height of Connector above PCB:
27,664 in stock
Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.
Stock held by Harwin: contact distributor to purchase.
Questions & Answers Ask a Question
Why is there no voltage rating for this contact?
Voltage rating is calculated from the flashover voltage – the voltage at which the electricity can break down the air gap and jump between two contacts. With a single contact, the voltage rating you achieve will depend on the space you leave between two contacts, or a contact and any other conducting element. So we are unable to give a voltage rating for single contacts, as it will depend on your usage.
What is the voltage rating for the contact pad at 6A?
Voltage rating is based on the maximum voltage, with a safety margin (can be calculated at 33% to 66% of the maximum voltage). However, to find the maximum voltage, it has to be tested for the voltage level at which flashover occurs – and this depends on the gap to the next nearest contact or other metal object (like the enclosure). As this contact pad is a single contact, and not a row of contacts, we have no control over the distance to the next nearest metal object – this will depend on your design. You will therefore need to evaluate and test for this within your specific layout, sorry.
I am looking at spring loaded contacts and contact pads but don’t see how they can be wired and mounted?
These designs were intended for SMT soldering to a PCB or similar, rather than wire mounting. You could either make a wired connection elsewhere to the PCB, or investigate methods for soldering wires to flat surfaces.
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
S70-138181045R CAD Model (ZIP file containing STP and IGES)Download
