S1951-46R

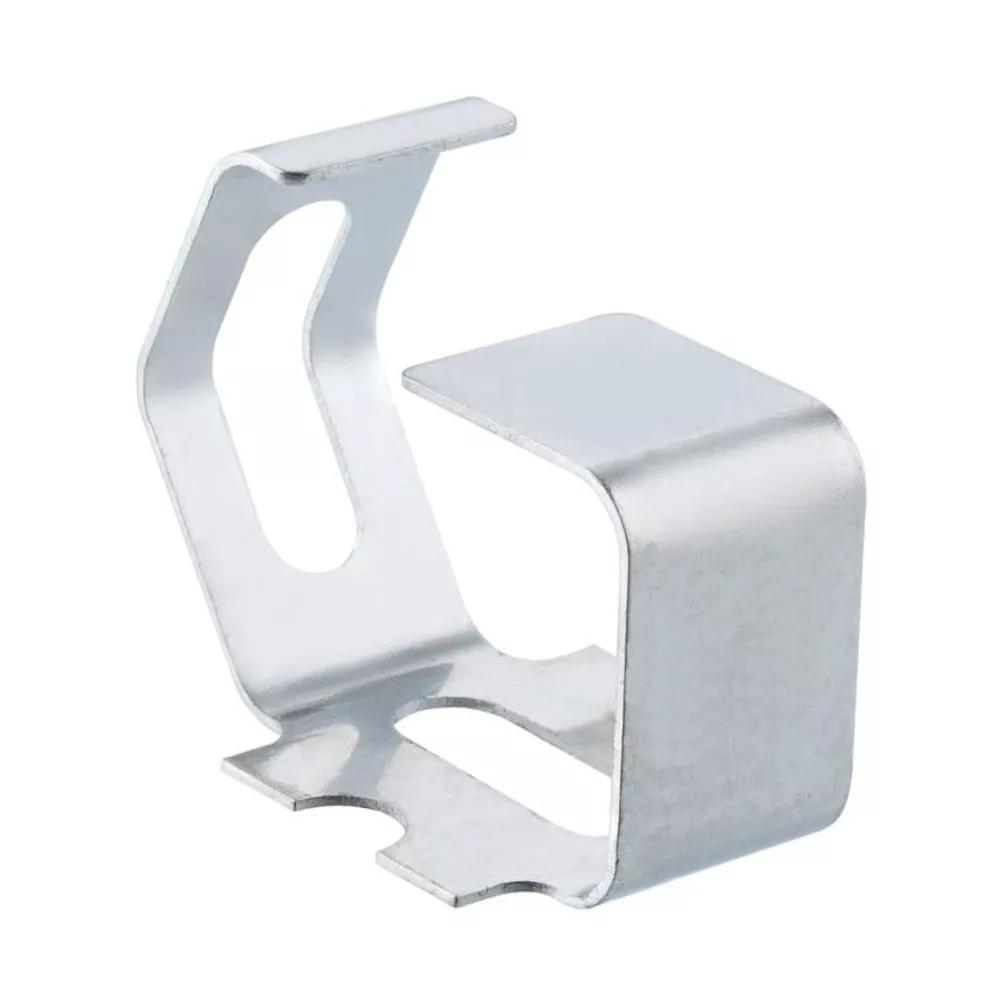

7.25mm SMT Multi-directional Spring Contact (T+R)

SMT Spring Contact

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
  • Multi-Directional contact point (accommodates both Vertical and Horizontal) – Low Force version. Free height = 7.25mm.
  • Vertical Working height = 6.75mm, Minimum = 6.15mm. Horizontal Working length = 9.19mm, Minimum 8.59mm.
Add to Favorites

Technical Details

Specification

Contact Gender:

Male/Plug

Connector Orientation:

Vertical and Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

7A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.116g

Overall Dimensions (L x W x D) in mm:

9.59 x 5.70 x 7.25

Height of Connector above PCB:

7.25mm

Availability

17,769 in stock

Info Circle

Popular products are manufactured regularly, typically in stock and are not subject to minimum quantity requirements.

Popular product
Distributor Location Quantity (Updated Daily)
Distributor Mouser Electronics Inc
Location Global
Quantity (Updated Daily) 8140
Distributor TTI Inc
Location USA
Quantity (Updated Daily) 6650
Distributor Digi-Key
Location Global
Quantity (Updated Daily) 2919
Distributor Anglia
Location Europe
Quantity (Updated Daily) 60

Questions & Answers Ask a Question

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
