Home > S1941-46R
Active Product

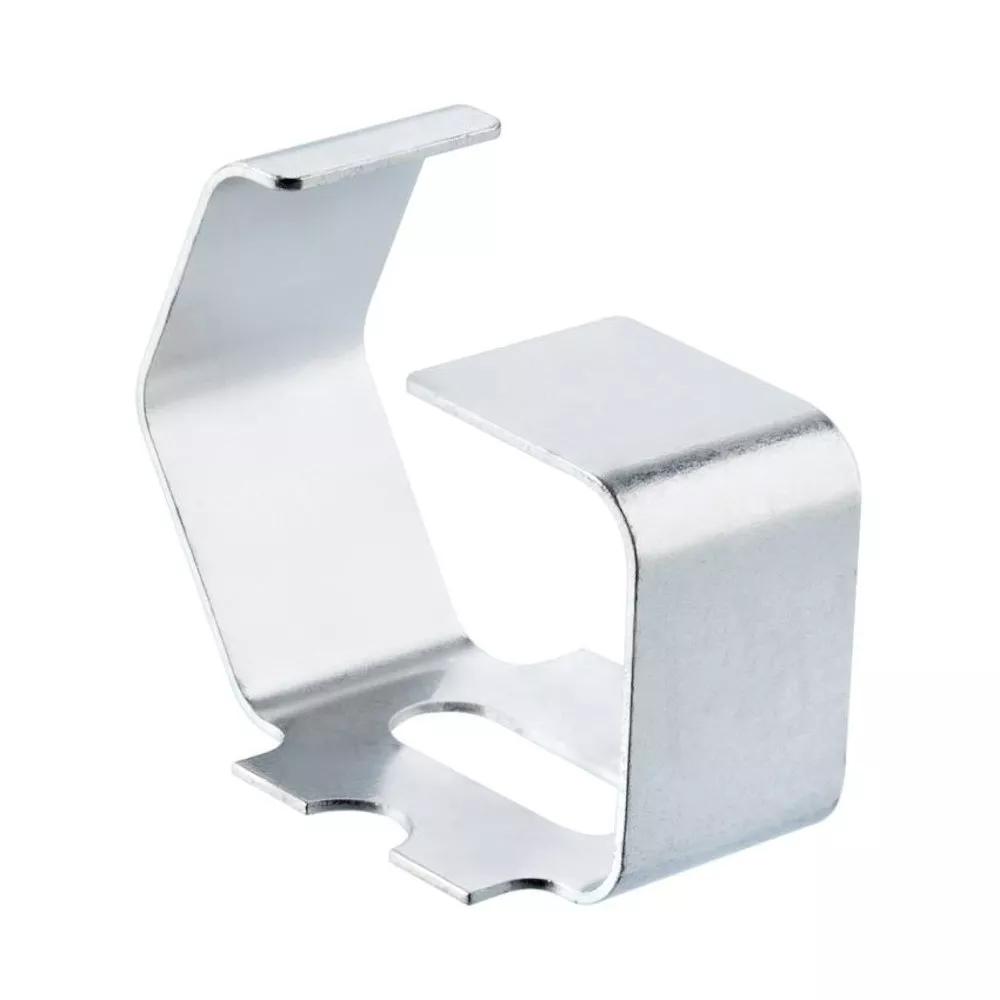

S1941-46R

7.30mm SMT Multi-directional Spring Contact (T+R)

SMT Spring Contact

Add to Favorites

49,588 in stock   Check availability

7 similiar products View products

Samacsys account required

Download

No login is required

Product Description

  • Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Tin finish on contact area and termination.
  • Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 7.30mm.
  • Vertical Working deflection = 0.30mm, Maximum deflection = 0.80mm. Horizontal Working deflection = 0.40mm, Maximum deflection = 1.00mm.

Technical Details

Specification

Connector Orientation:

Vertical and Horizontal

Connection Type:

Surface Mount (SMT)

Current Rating:

9A max

Operating Temperature:

-55°C to +125°C

Soldering Data:

Max Solder Temperature: 260°C for 10 seconds

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Beryllium Copper

Packaging Style:

Tape and Reel

Dimensions

Individual Part Weight:

0.127g

Overall Dimensions (L x W x D) in mm:

9.59 x 5.70 x 7.25

Height of Connector above PCB:

7.25mm

Frequently Asked Questions Ask a Question

Is there a recommended insertion tool that I can use with the ATE probes and sleeves?

We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.

Was this answer useful?

Given there will be no voltage present during switching, how many mating cycles can this connector handle?

This contact has been rated up to 5000 cycles durability (as long as the amount of deflection is kept within the stated maximums). You can see this specification and the maximum deflection on the Technical Drawing/Datasheet S1941.pdf.

Was this answer useful?

Does this product need a pick and place cap for SMT placement?

A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.

Was this answer useful?
