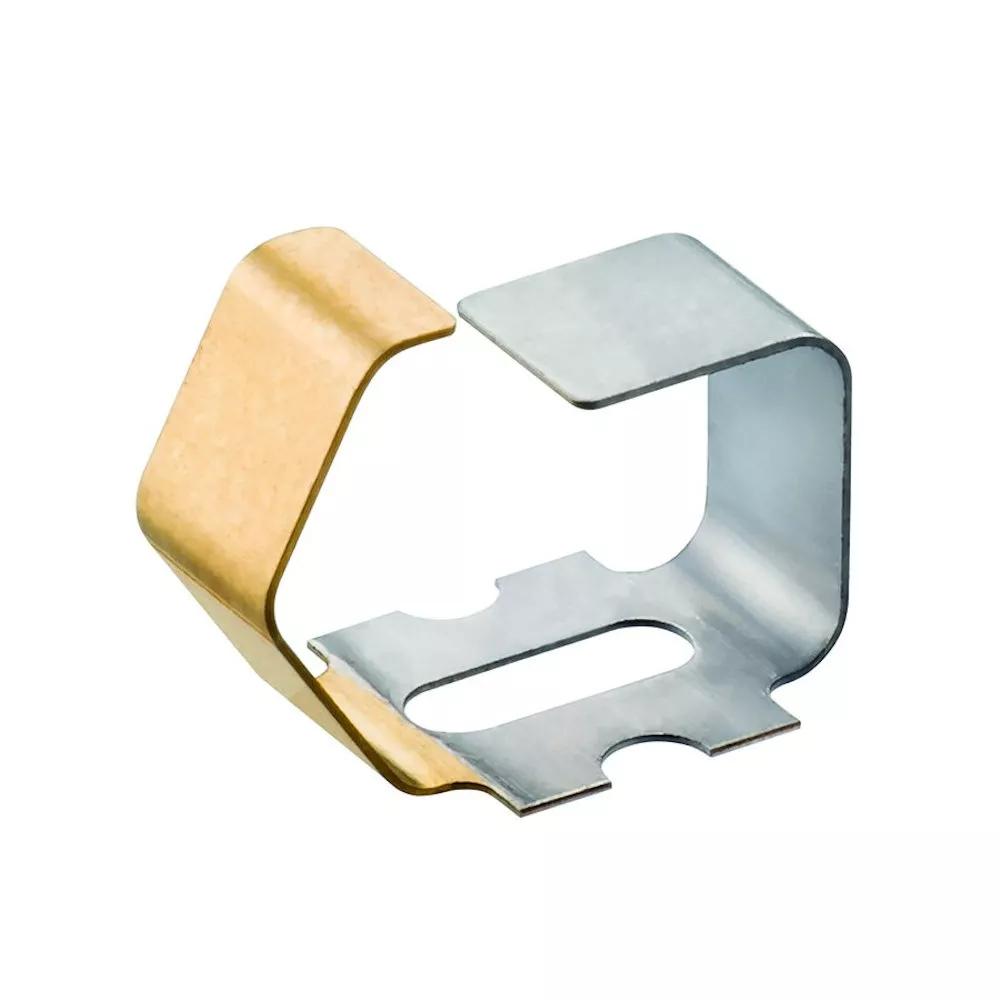

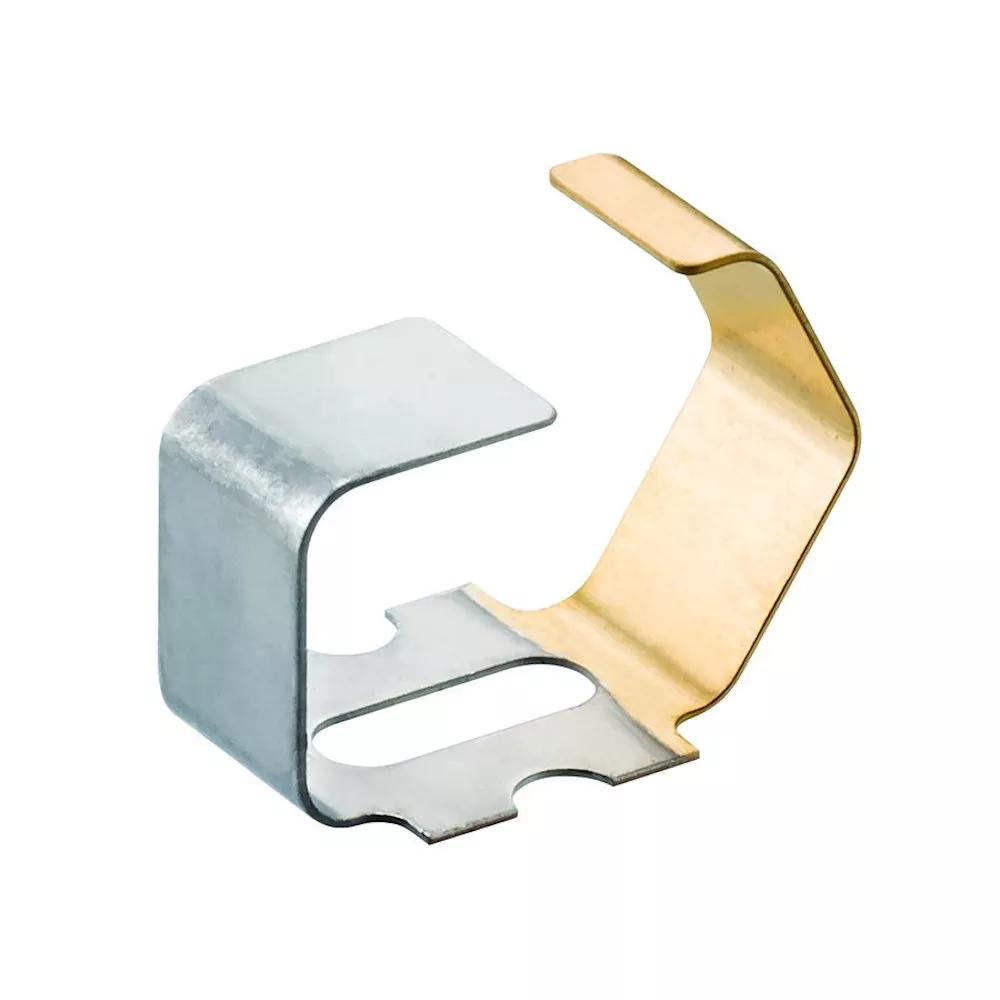

S1941-42R
7.30mm SMT Multi-directional Spring Contact (T+R)
SMT Spring Contact
159,109 in stock Check availability
7 similiar products View products
Samacsys account required
No login is required
Product Description
- Accommodates both wiping and sliding actions. Packaged in Tape & Reel for automated placement. Gold finish on contact area, Tin finish on termination.
- Multi-Directional contact point (accommodates both Vertical and Horizontal). Free height = 7.30mm.
- Vertical Working deflection = 0.30mm, Maximum deflection = 0.80mm. Horizontal Working deflection = 0.40mm, Maximum deflection = 1.00mm.
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Connector Orientation:
Vertical and Horizontal
Connection Type:
Surface Mount (SMT)
Current Rating:
9A max
Operating Temperature:
-55°C to +125°C
Soldering Data:
Max Solder Temperature: 260°C for 10 seconds
Number of Signal Contacts:
1
Materials
Finish / Plating on Termination:
100% Tin over Nickel
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Beryllium Copper
Packaging Style:
Tape and Reel
Dimensions
Individual Part Weight:
0.127g
Overall Dimensions (L x W x D) in mm:
9.59 x 5.70 x 7.25
Height of Connector above PCB:
7.25mm
Frequently Asked Questions Ask a Question
Is there a recommended insertion tool that I can use with the ATE probes and sleeves?
We do not have a specific insertion tool for our ATE test probe sleeves. If you are press-fit assembling the sleeve to a panel, you would just need to support the underside of the panel around the mounting hole, and push down on the sleeve with a flat plate. A typical bench press should be suitable. The probe should then be fitted to the sleeve by hand. There is also an instruction sheet available for these products.
Was this answer useful?
What is the compressive spring force of the S1941-42 clip?
We have two forces stated on the second page of the Technical Drawing (available under Downloads on this page), for the horizontal and vertical directions at recommended working deflection. The spring force is 1.2N at both deflections – 0.3mm deflection in the vertical and 0.4mm in the horizontal.
Was this answer useful?
Given there will be no voltage present during switching, how many mating cycles can this connector handle?
This contact has been rated up to 5000 cycles durability (as long as the amount of deflection is kept within the stated maximums). You can see this specification and the maximum deflection on the Technical Drawing/Datasheet S1941.pdf.
Was this answer useful?
Does this product need a pick and place cap for SMT placement?
A separate pick and place cap is not necessary (and is not supplied) – the part has an integrated flat surface that should be used for pick and place purposes. You just need to specify a vacuum nozzle of the right size.
Was this answer useful?
