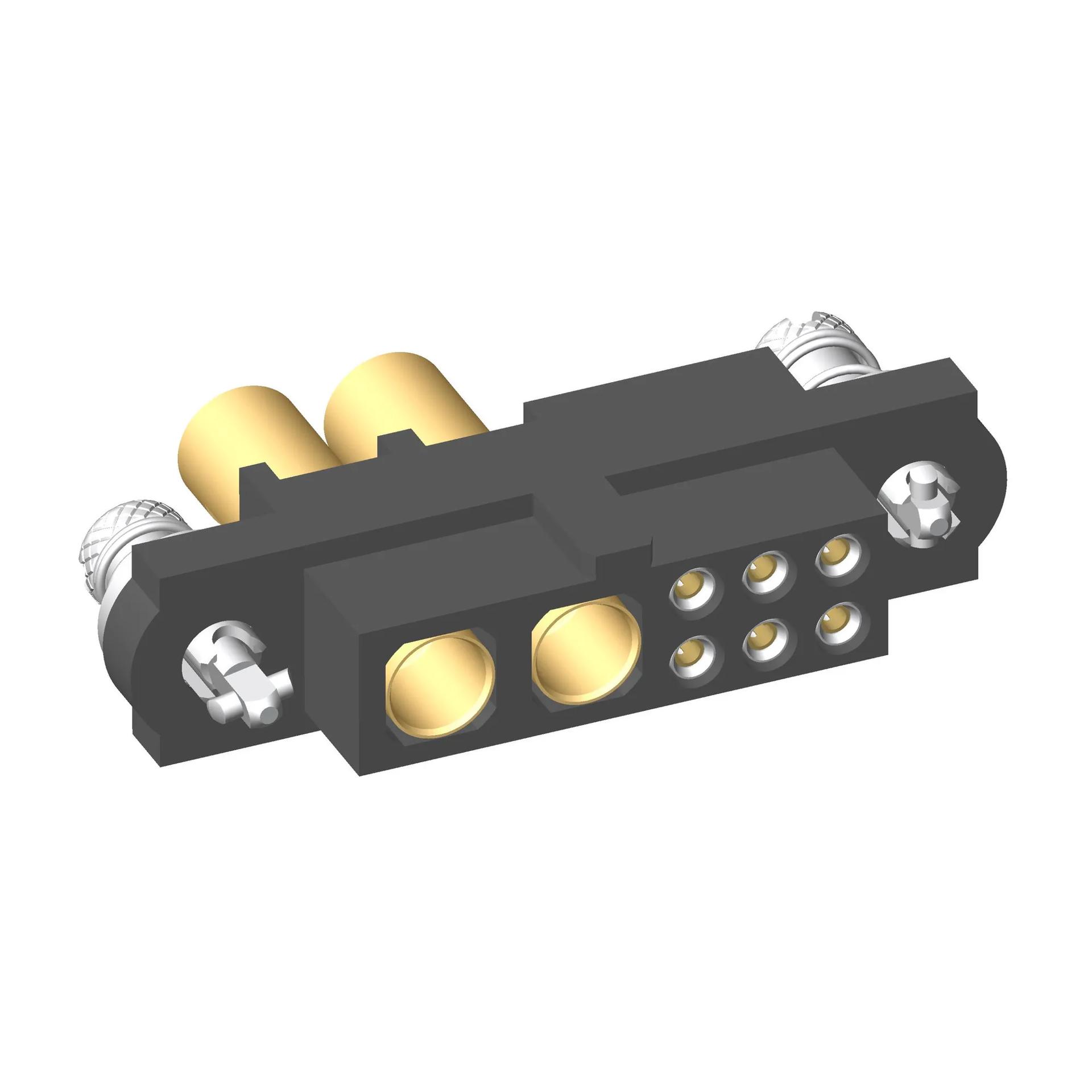

6+2 Pos. Female 22 AWG+12 AWG Cable Conn. Kit, 101Lok
2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek
Traceparts account required
- Complete kit: housing (with 101Lok slotted head) with 6 x signal and 2 x power contacts supplied loose.
- Power solder contact suitable for 12 AWG, Large Bore signal contact suitable for 22 AWG cable (Ø1.1mm max insulation). Gold finish on contact areas and power contact termination, Tin finish on signal contact termination.
- For complete pin numbering or pin out information, see Component Specification C005XX.
Traceparts account required
EU RoHS Status:
Cable (Solder + Crimp)
Cable Conductor Size:
22 AWG + 12 AWG
Mating Pin Size:
Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
-55°C to +125°C
Style of Jackscrews:
101Lok Bayonet Fixing with Slotted Head
Can be cut to another size:
Number of Rows:
Number of Signal Contacts:
Number of Special (Power or Coax) Contacts:
Finish / Plating on Termination:
100% Tin over Nickel (signal), Gold (power)
Finish / Plating on Contact Surface:
Base Material of Contact:
Beryllium Copper contact clip + Brass shell (signal), Brass (power)
Housing Material UL Rating:
Individual Part Weight:
Overall Dimensions (L x W x D) in mm:
24.00 x 5.50 x 12.80
Frequently Asked Questions Ask a Question
When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?
We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.
Was this answer useful?
RoHS Compliant (2015/863/EU) with Exemption 6cPDF Download
