Active Product

M80-4C10605F1-00-000-02-325

6+2 Pos. Female 24-28AWG+12AWG Cable Conn. Kit, Jackscrews

2.00mm/4.00mm Pitch High-Reliability Connector - Datamate Mix-Tek

Order Sample

Add to Favorites

In stock Check availability

2 similar products View products

Traceparts account required

Product Description

Complete kit: housing (with hexagonal slotted jackscrews) with 6 x signal and 2 x power contacts supplied loose.
Power solder contact suitable for 12AWG, Small Bore signal contact suitable for 24 to 28AWG cable (Ø1.1mm max insulation). Gold finish on contact area and termination.
For complete pin numbering or pin out information, see Component Specification C005XX.

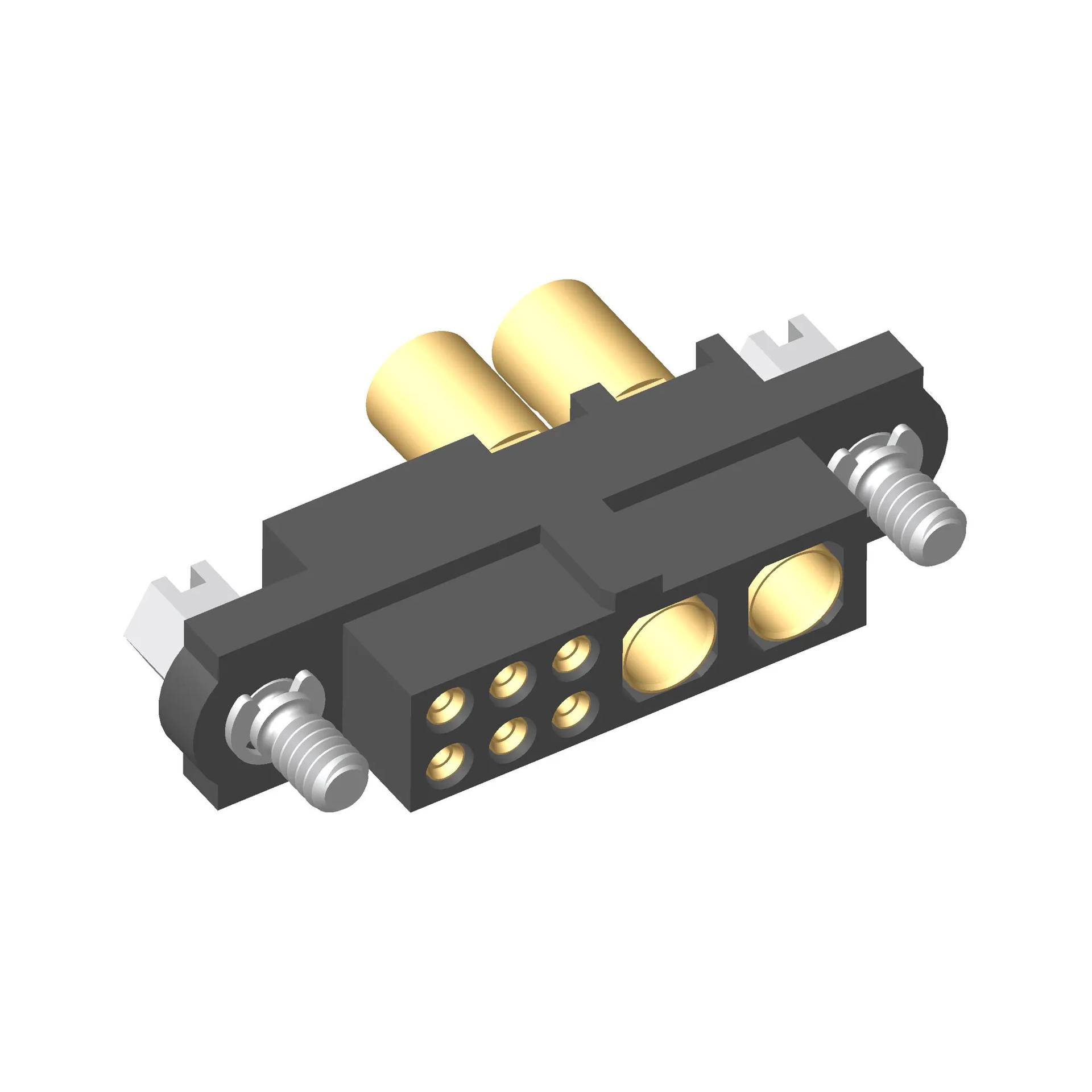

M80-4C10605F1-00-000-02-325 - 6+2 Pos. Female 24-28AWG+12AWG Cable Conn. Kit, Jackscrews

Youtube video for M80-4C10605F1-00-000-02-325

CAD drawing of M80-4C10605F1-00-000-02-325

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with Exemption 6c

Contact Pitch:

2.00mm/4.00mm (0.079"/0.157")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Solder + Crimp)

Cable Conductor Size:

24-28AWG + 12AWG

Mating Pin Size:

Ø0.5mm (signal)

Current Rating:

Signal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact

Operating Temperature:

-55°C to +125°C

Style of Jackscrews:

Floating Jackscrew with Hex Slotted Head (Standard Gender)

Polarising Features:

Yes

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Mixed

Number of Signal Contacts:

Number of Special (Power or Coax) Contacts:

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip + Brass shell (signal), Brass (power)

Housing Material:

PPS

Housing Colour:

Black

Housing Material UL Rating:

UL94V-0

Packaging Style:

Single Pack

Individual Part Weight:

2.305g

Overall Dimensions (L x W x D) in mm:

24.00 x 5.50 x 13.00

Thread Size:

Mating Profiles:

Catalog page - Datamate Mix-Tek Pin Numbering, Mating Profiles
