Home > M80-0130005
Active

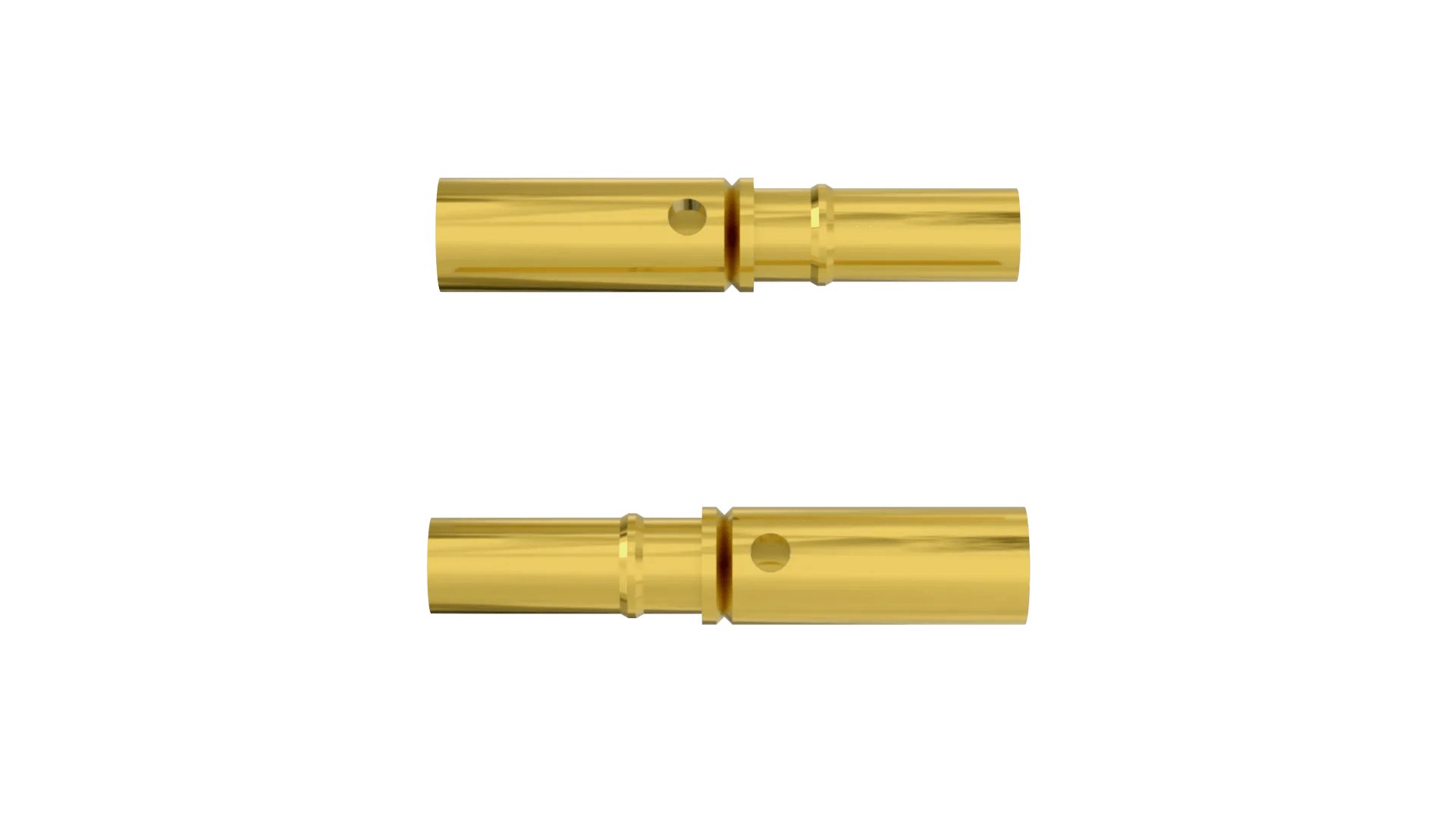

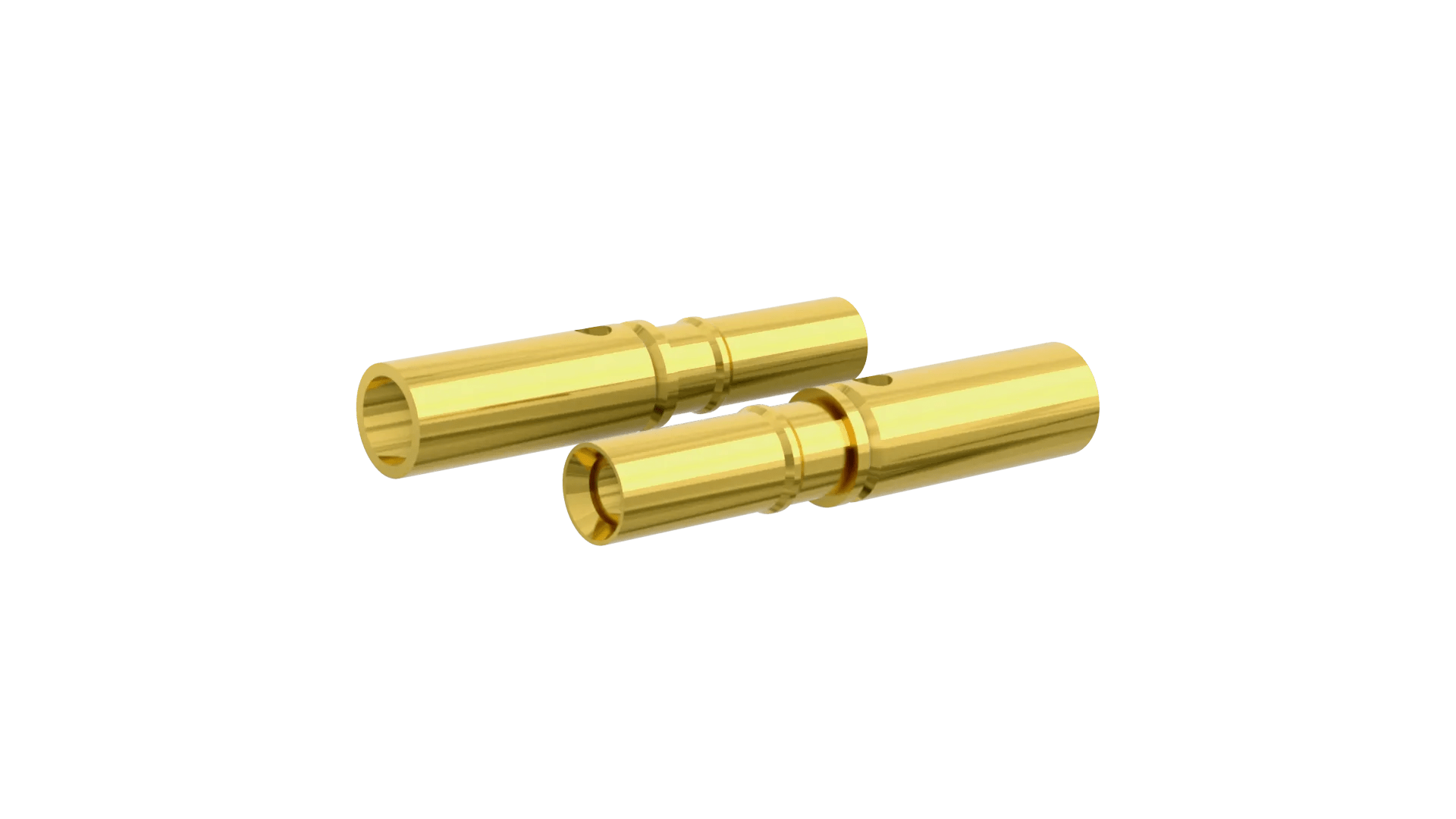

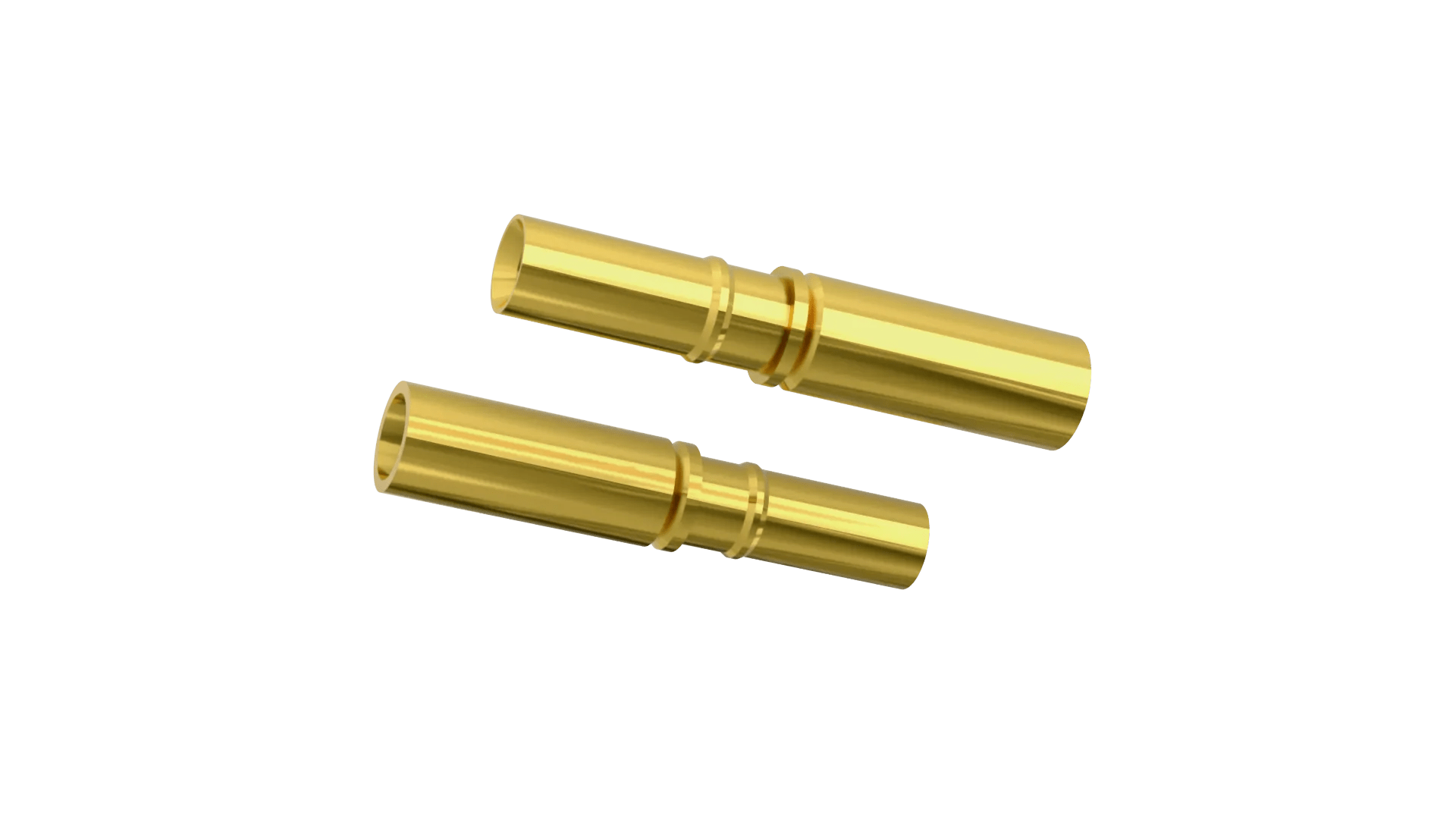

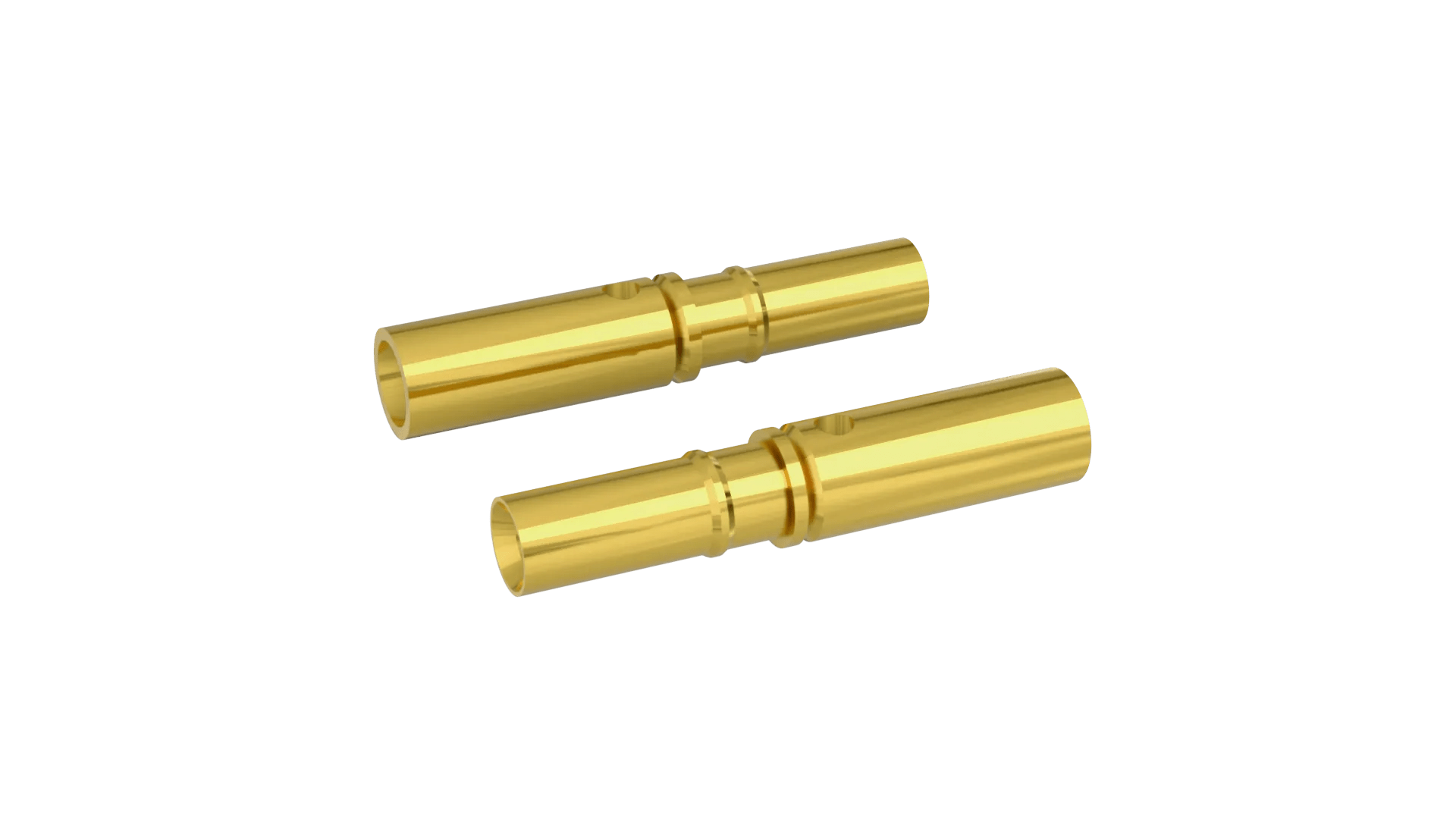

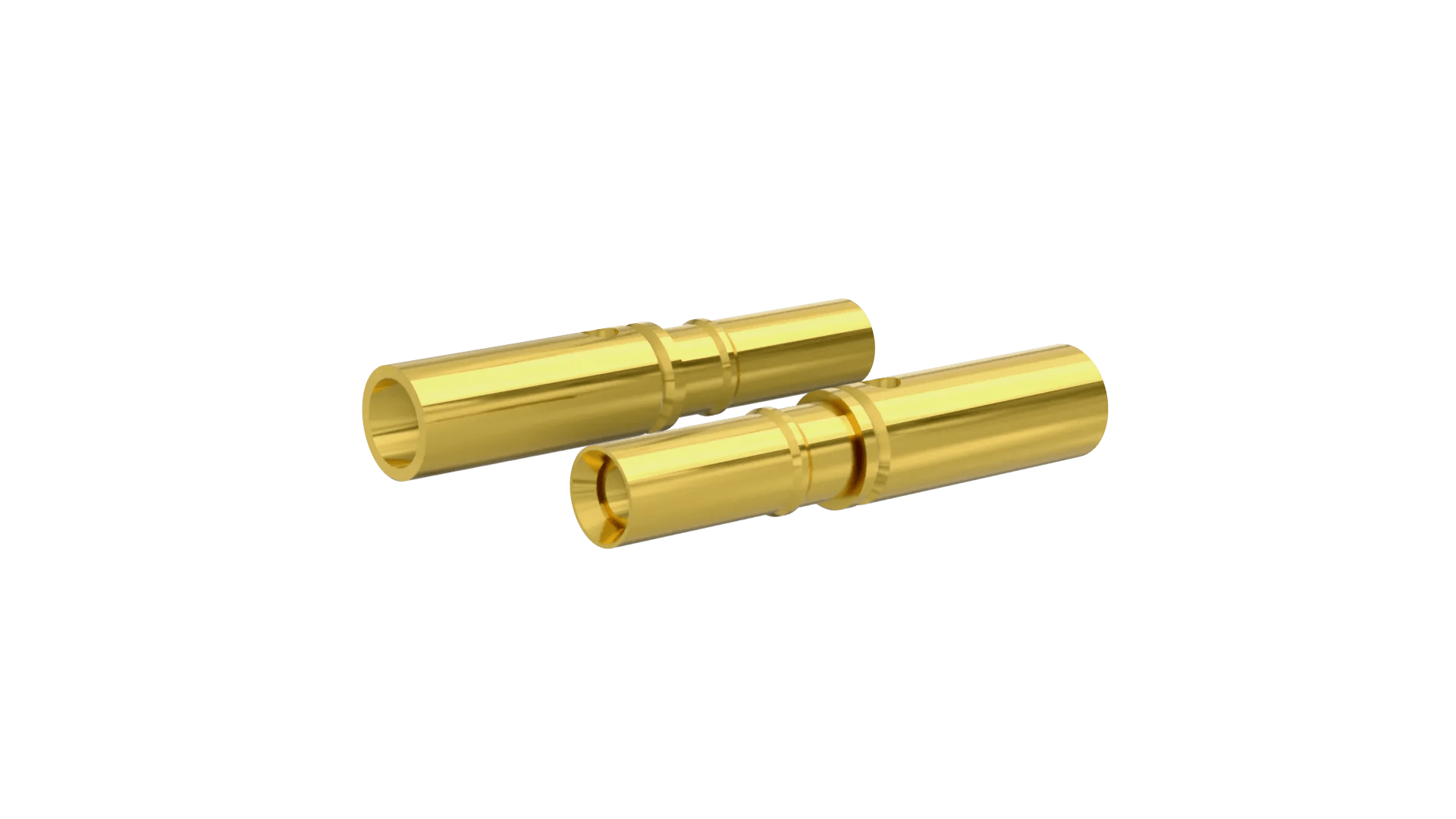

M80-0130005

Female 24-28AWG Cable Crimp Contact

2.00mm Pitch High-Reliability Connector - Datamate

  • Small Bore signal contact, for 24-28 AWG wire (Ø1.1mm max insulation).
  • Use with all types of female Datamate (L-Tek, J-Tek, Mix-Tek, etc.).
  • Gold contact clip, Gold shell.
Add to Favorites

Technical Details

Specification

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-28AWG

Mating Pin Size:

Ø0.5mm

Current Rating:

3A

Operating Temperature:

-55°C to +125°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Number of Signal Contacts:

1

Materials

Finish / Plating on Termination:

Gold

Finish / Plating on Contact Surface:

Gold

Base Material of Contact:

Beryllium Copper contact clip, Brass shell

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.061g

Overall Dimensions (L x W x D) in mm:

7.45 x Ø1.46

Availability

Popular product
Distributor Location Quantity
Anglia
Europe
Status271
Avnet Abacus
Europe
Status77267
Digi-Key
Global
Status37482
Farnell
Europe
Status23823
Harwin
Global
Status809519
Mouser Electronics Inc
Global
Status20858
Newark
USA
Status3042

*Stock available: contact distributor to purchase

Questions & Answers Ask a Question

When I crimp this terminal, the conductor crimp is over the inspection hole – isn’t this a defect per IPC/WHMA-A-620?

We have a support article relating to this question, but essentially the hole you see is not designed to be an inspection hole. It is a plating hole, to allow the finish materials to reach the bottom of the crimp bore and help ensure performance. As such it is not relevant to IPC-A-620. Applying a crimp using the correct tools will indeed overlap the plating hole by 25 to 50%, but this is intended and expected. The design of the Datamate connector is so compact, there is no room to move the crimp area away from this hole without making the whole connector design larger.

Was this answer helpful?

100% found this helpful

Downloads

TECHNICAL DOCUMENTS

PDF

Technical Drawing / Datasheet - M80-013.pdf

ZIP

M80-0130005 CAD Model (ZIP file containing STP and IGES)

Download
PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

TEST REPORTS

PDF

Test Report HT001 - Datamate Mechanical Endurance - number of cycles, up to 10,000

PDF

Test Report HT005 - Datamate L-Tek Female Crimp Retention and Integrity (Pull-Off Force)

PDF

Test Report HT016 - Datamate L-Tek Female Crimp detailed Mechanical Forces and Contact Resistance

PDF

Test Report HT017 - Datamate L-Tek Contact Resistance after 3 and 15 years Artificial Aging

PDF

Test Report HT019 - Datamate Frequency Testing to EIA-364-108-2000(2007), USB2.0

ENVIRONMENTAL COMPLIANCE

PDF

RoHS Compliant (2015/863/EU) with Exemption 6c

PDF

REACH Harwin statement (12-Feb-2020) including 205 SVHC (16-Jan-2020), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

PDF

Material composition for M80-013 series

INSTRUCTION SHEETS

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Cable Connectors and Assemblies from Harwin

PDF

IS-01 - M22520/2-01 Hand Crimp Tool Instruction Sheet

PDF

IS-25 - Z80-280 Assembly Tool Instruction Sheet

OTHER DOWNLOADS

PDF

3D PDF file - M80-0130005_3D.pdf

PDF

Catalog page - Datamate Power/Signal Female Cable Kit

PDF

Catalog page - Datamate J-Tek Female Spare Crimp Contacts

PDF

Catalog page - Datamate L-Tek Female Spare Crimp Contacts

PDF

Catalog page - Datamate Introduction

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300
