M22-3040046

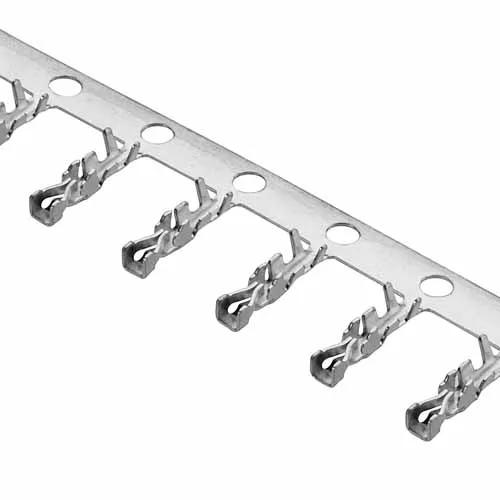

Female 24-30 AWG Crimp Contact, reeled

2.00mm (0.079") Pitch PCB Connector - M22 Series

Order Sample

Add to Favorites

Loading… Check availability

2 similar products View products

Traceparts account required

Product Description

Female crimp contacts on reel – Tin finish contact area.
Suitable for cable conductor sizes from 24 to 30 AWG.
Use with crimp housings M22-301 and M22-302 series.

M22-3040046 - Female 24-30 AWG Crimp Contact, reeled

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

2.00mm (0.079")

Contact Gender:

Female/Socket/Jack

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Cable Conductor Size:

24-30 AWG

Mating Pin Size:

0.5mm square

Current Rating:

1A per contact

Operating Temperature:

-25°C to +85°C

Finish / Plating on Termination:

100% Tin over Nickel

Finish / Plating on Contact Surface:

100% Tin over Nickel

Base Material of Contact:

Phosphor Bronze

Packaging Style:

Reel

Individual Part Weight:

0.053g

Overall Dimensions (L x W x D) in mm:

6.00 x 1.90 x 1.65 (contact only)

Frequently Asked Questions Ask a Question

Crimp tool Z22-020 is supplied for low-volume crimping. You can see it listed under Related Products further down the page.
