Z22-020

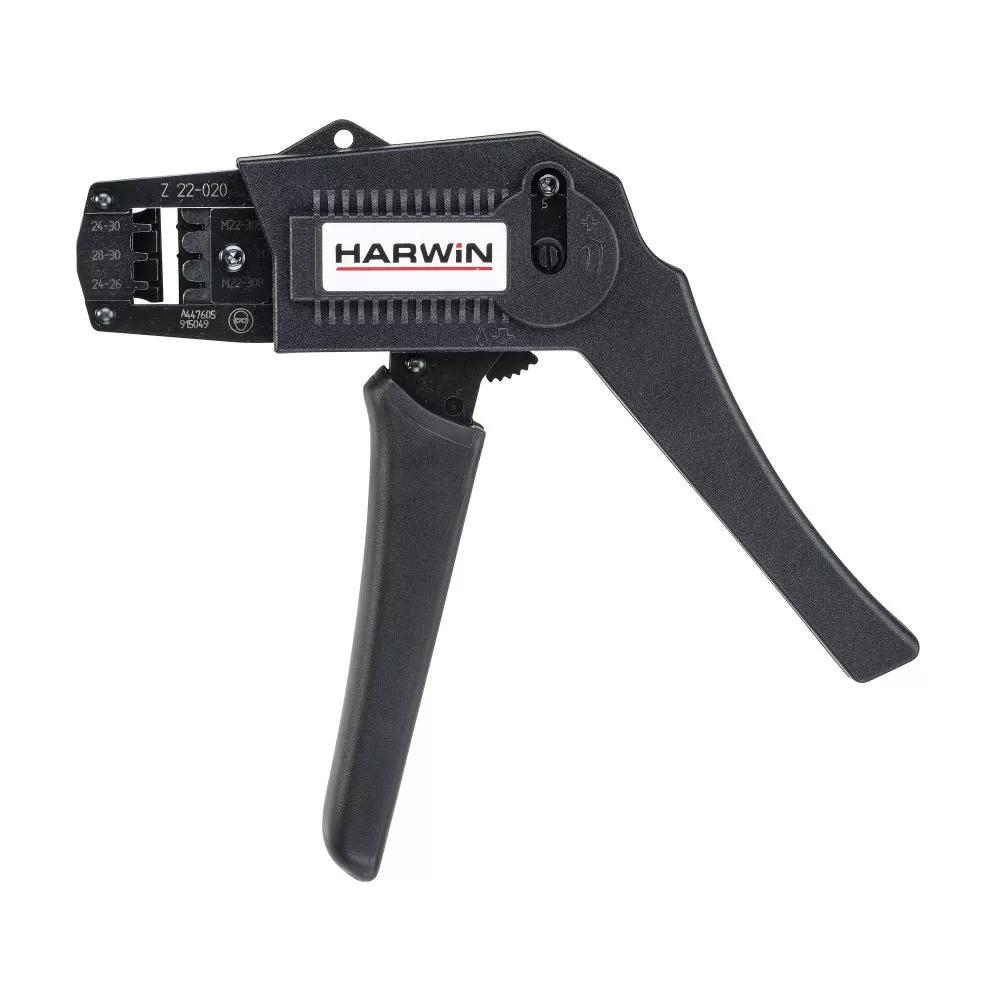

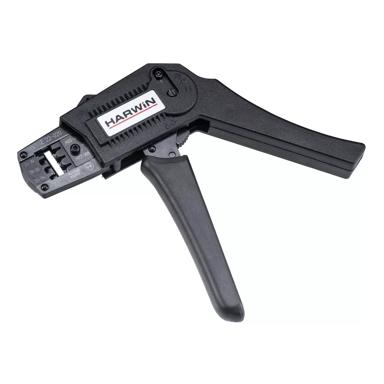

Hand Crimp Tool

2.00mm (0.079") Pitch PCB Connector - M22 Series

For crimping contacts M22-3050042, M22-3050046 and M22-3080046.
Can also be used with M22-3040042, M22-3040046 and M22-3060046 reeled contacts – cut from bandolier first.

Availability

Technical Details

EU RoHS Status:

Not applicable to RoHS (2015/863/EU)

Contact Pitch:

2.00mm (0.079")

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Packaging Style:

Single Pack

Individual Part Weight:

431g

Overall Dimensions (L x W x D) in mm:

305.00 x 170.00 x 35.00 (in box)

Availability

37 in stock
