M22-3050042

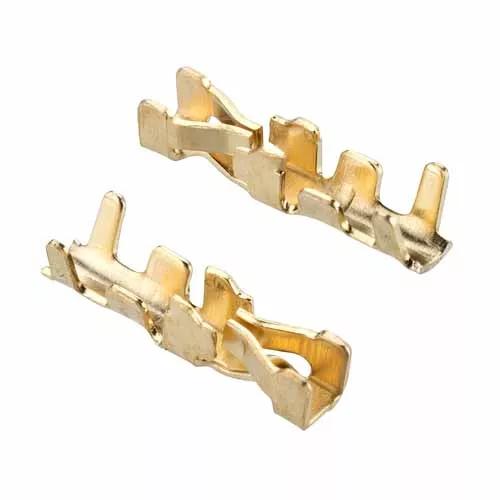

Female 24-30AWG Crimp Contact, loose
2.00mm (0.079") Pitch PCB Connector - M22 Series
112,470 in stock Check availability
2 similiar products View products
Samacsys account required
No login is required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
2.00mm (0.079")
Contact Gender:
Female/Socket/Jack
Connector Orientation:
Straight
Connection Type:
Cable (Crimp)
Cable Conductor Size:
24-30AWG
Mating Pin Size:
0.5mm square
Current Rating:
1A per contact
Operating Temperature:
-25°C to +85°C
Materials
Finish / Plating on Termination:
Gold
Finish / Plating on Contact Surface:
Gold
Base Material of Contact:
Phosphor Bronze
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.044g
Overall Dimensions (L x W x D) in mm:
6.00 x 1.90 x 1.65
Frequently Asked Questions Ask a Question
Which crimp tool is recommended for crimping these contacts in low quantities?
Crimp tool Z22-020 is supplied for low-volume crimping. You can see it listed under Related Products further down the page.
