Active Product

G125-96450F1

25+25 Pos. Cable Metal Backshell for Gecko-SL, Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok

Order Sample

Add to Favorites

In stock Check availability

9 similar products View products

Traceparts account required

Product Description

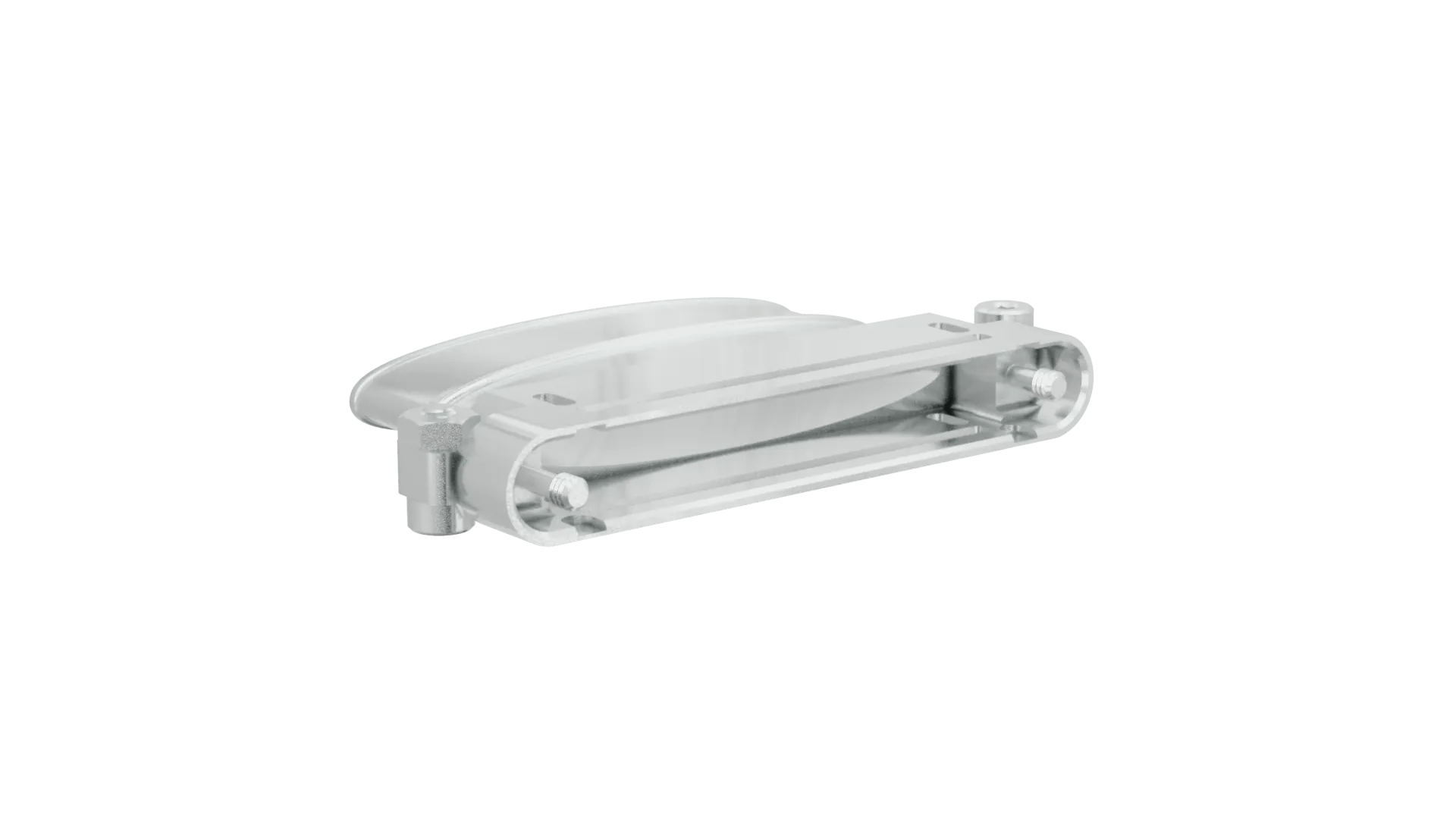

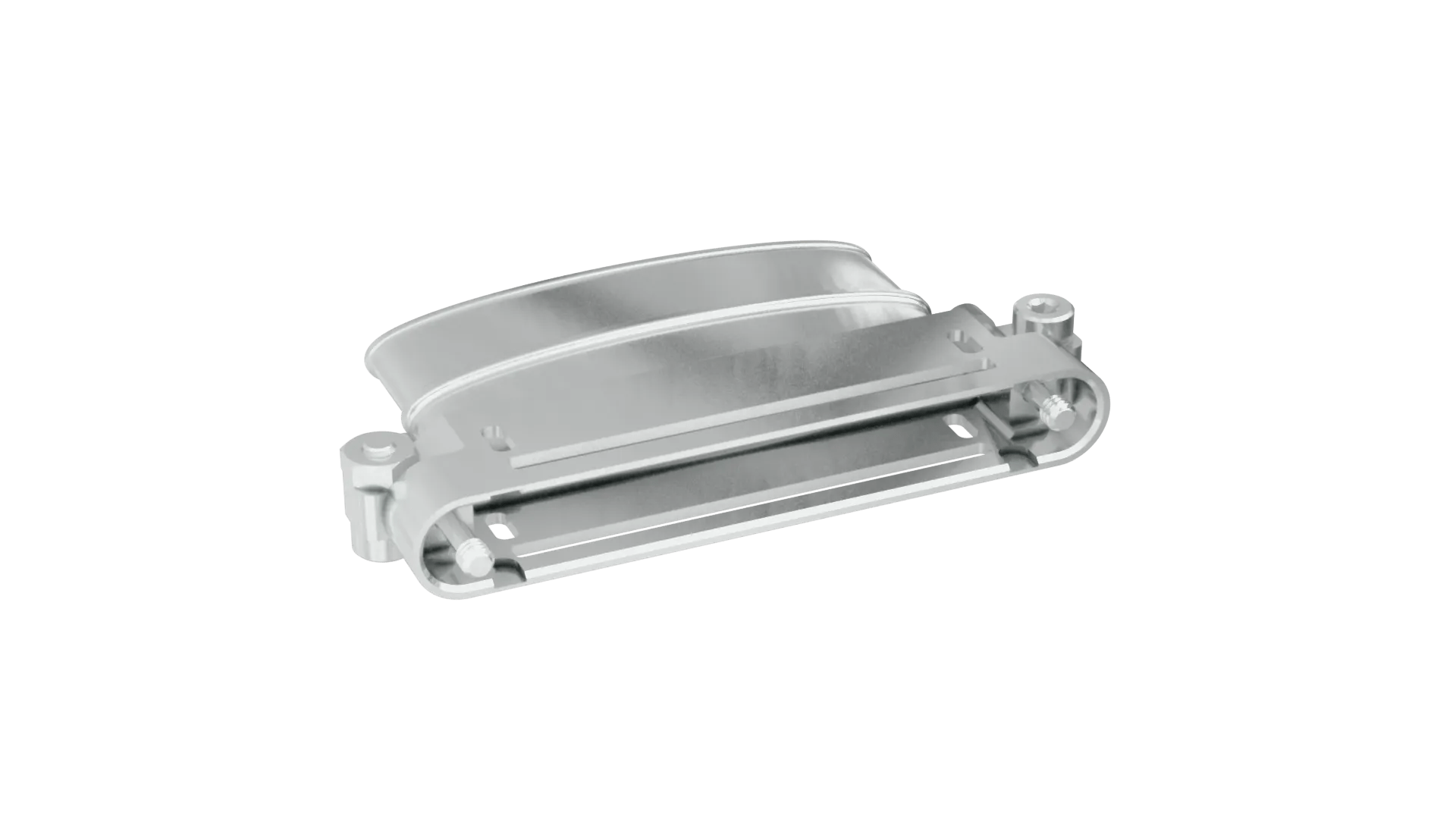

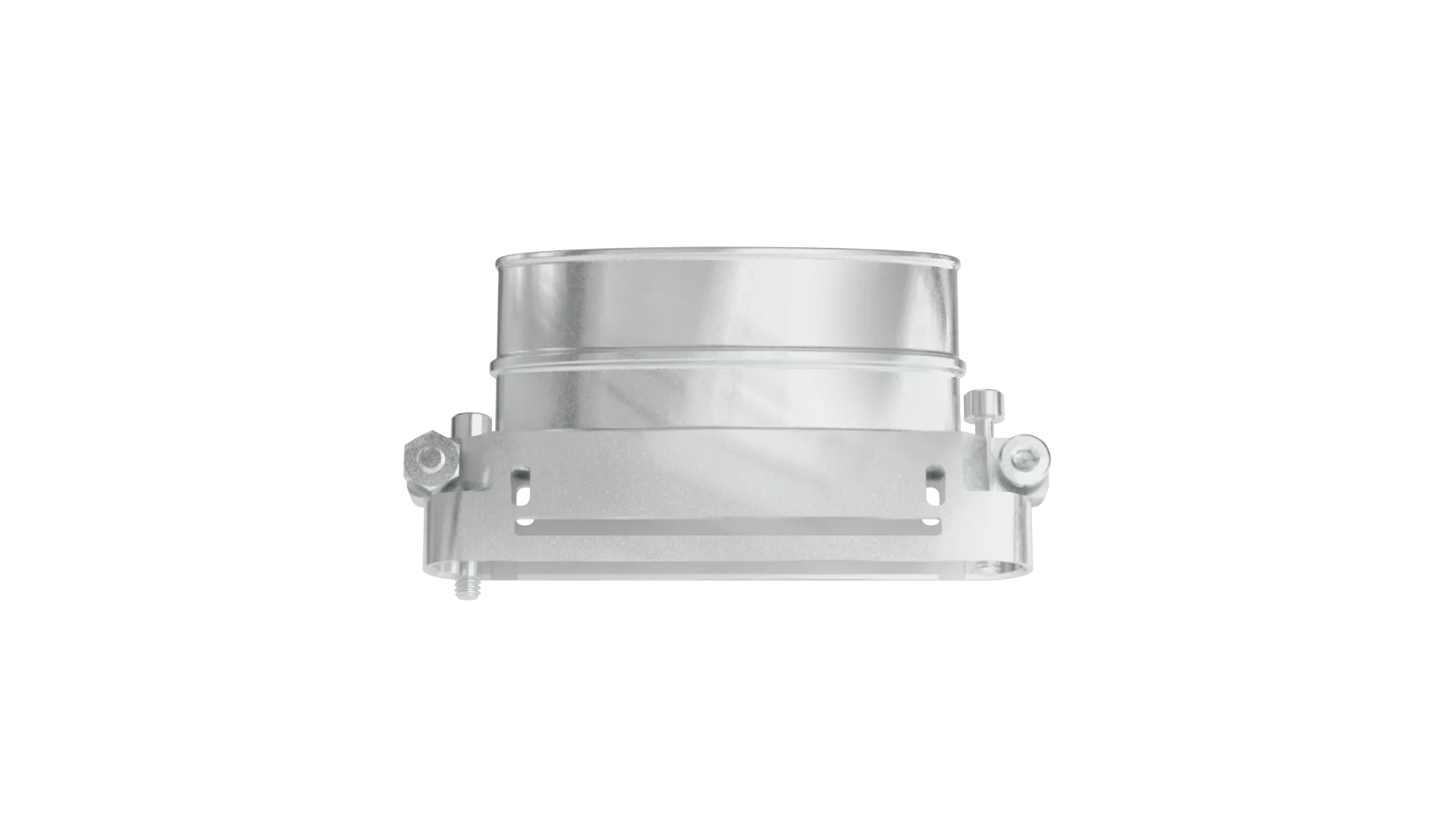

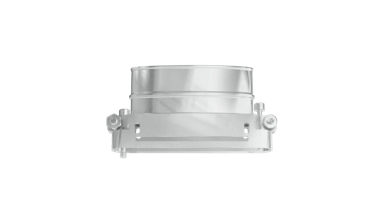

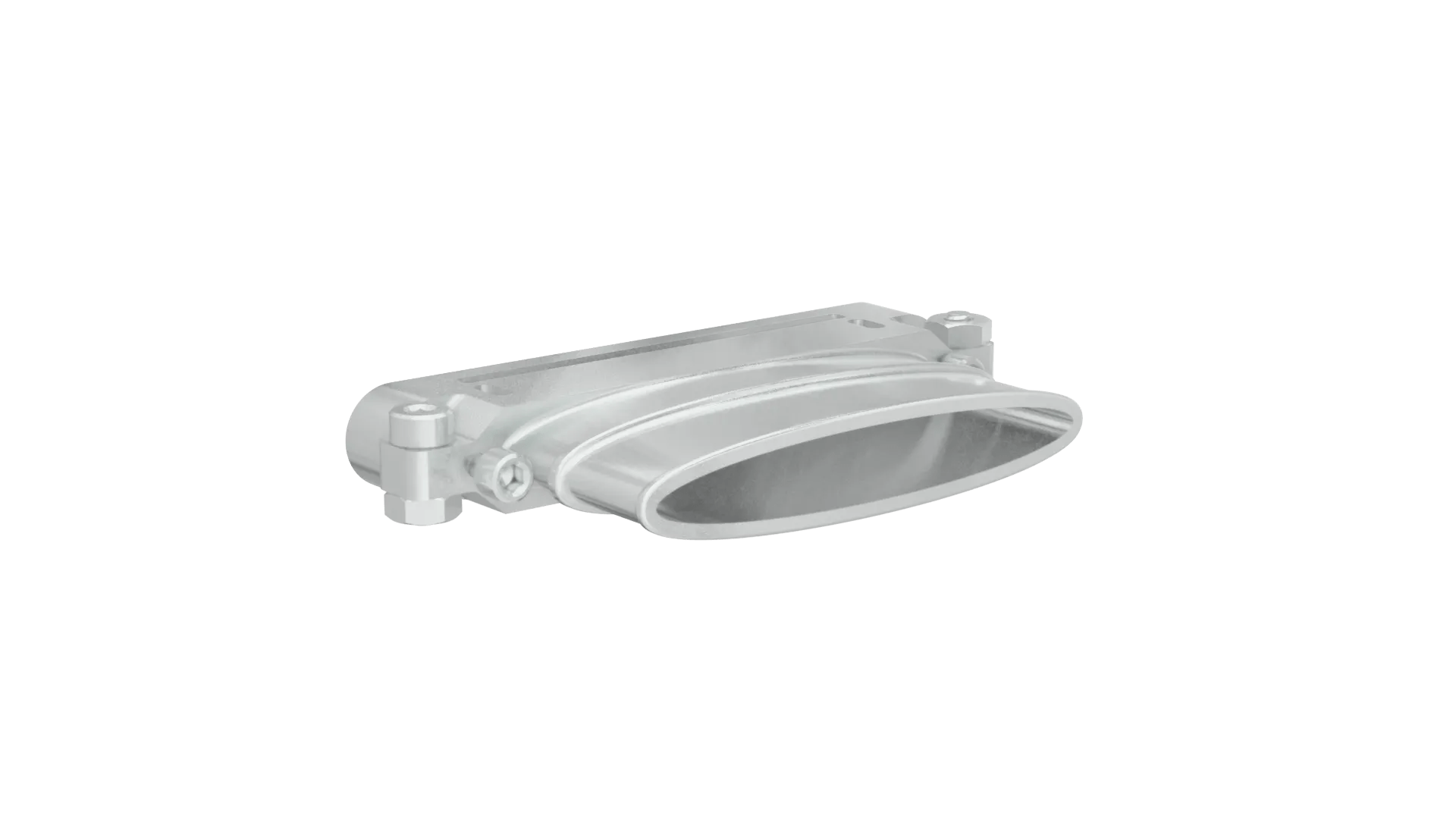

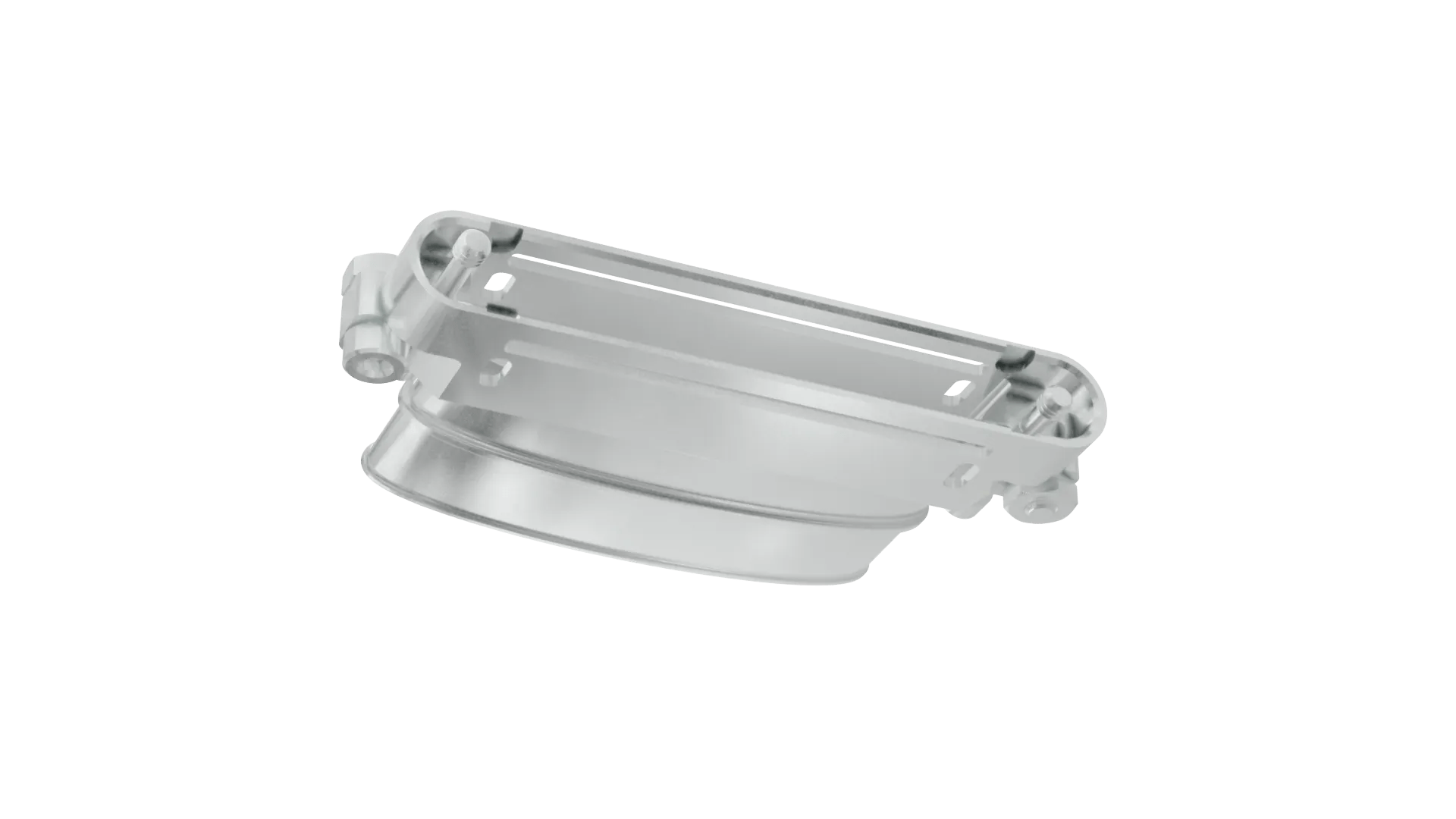

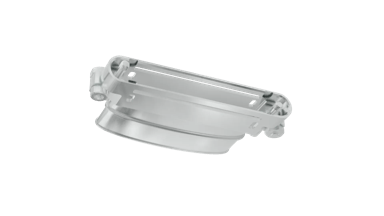

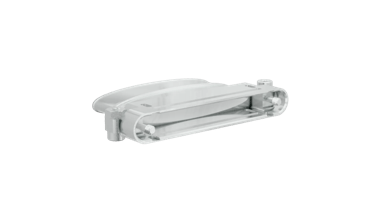

Metal Backshell kit for cable connectors – includes 2 metal hood halves, extended fixing screw-loks with hex socket heads and short screws & nuts for joining the halves. For spare extended hood screw-loks, order G125-4440000.
Use with female crimp housing G125-224509600 (50 contact) for standard gender fixings, or male crimp housing G125-324509600 (50 contact) for reverse gender fixings. Mate-before-Lock.
Can be fitted after cable assembly construction. Tie-bands M80-9470000 and M80-9480000 available separately for attaching braid.

G125-96450F1 - 25+25 Pos. Cable Metal Backshell for Gecko-SL, Screw-Lok

Traceparts account required

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Connector Orientation:

Straight

Connection Type:

Cable (Crimp)

Operating Temperature:

-65°C to +150°C

Style of Jackscrews:

Floating Screw-Lok with Hex Socket Head (Standard Gender or Reverse Fix)

End Stackable:

Side Stackable:

Can be cut to another size:

Number of Rows:

Number of Signal Contacts:

Housing Material:

Aluminium Alloy

Housing Colour:

Nickel

Packaging Style:

Bulk/Loose

Individual Part Weight:

7.875g

Overall Dimensions (L x W x D) in mm:

46.80 x 5.70 x 23.80

Thread Size:

Frequently Asked Questions Ask a Question

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Was this answer useful?

Downloads

RoHS Compliant (2015/863/EU) with no Exemption required

PDF Download
