G125-9605002

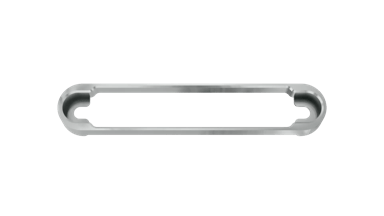

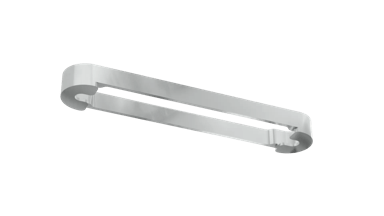

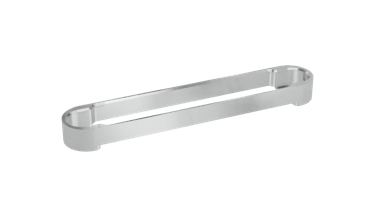

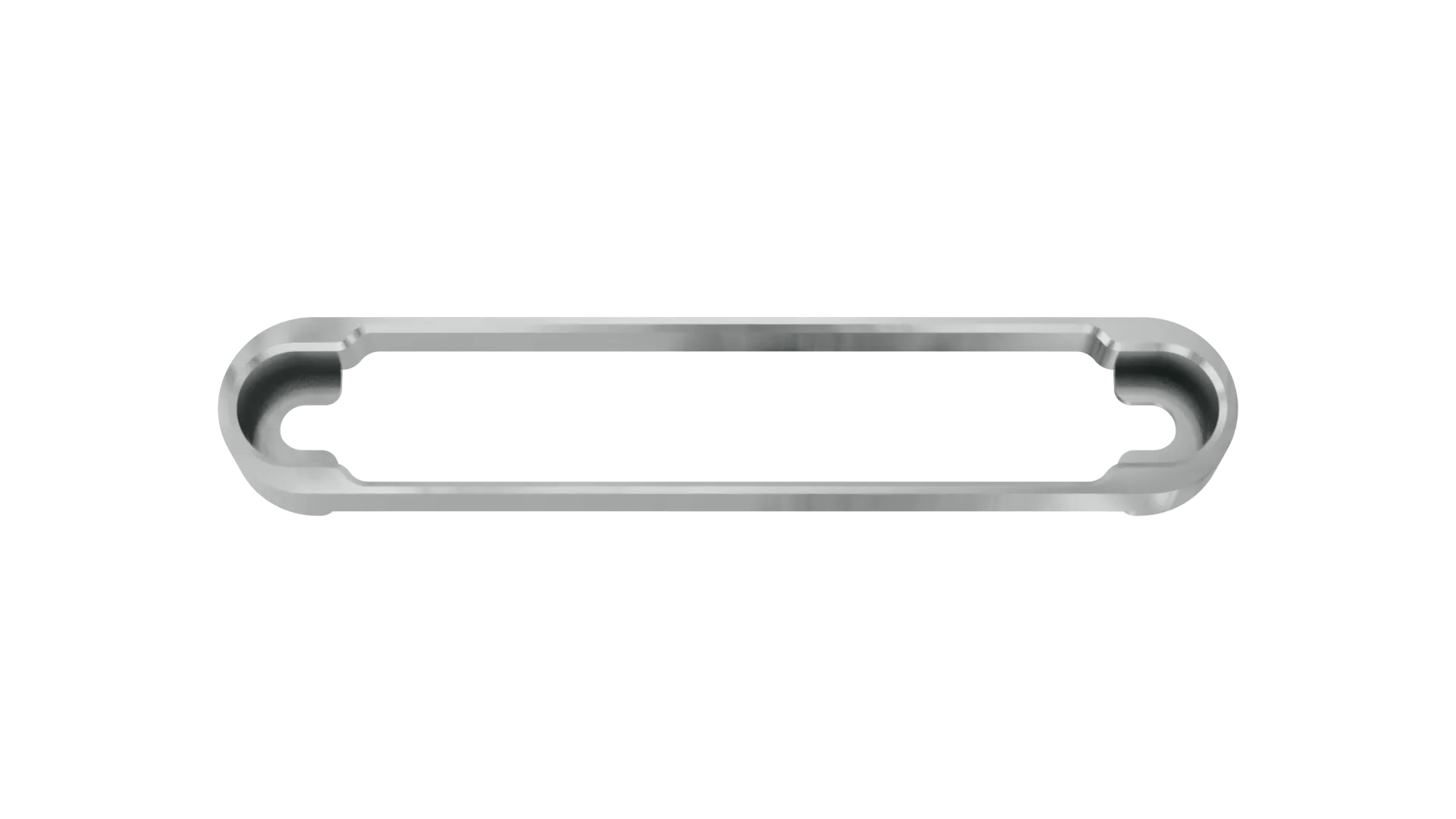

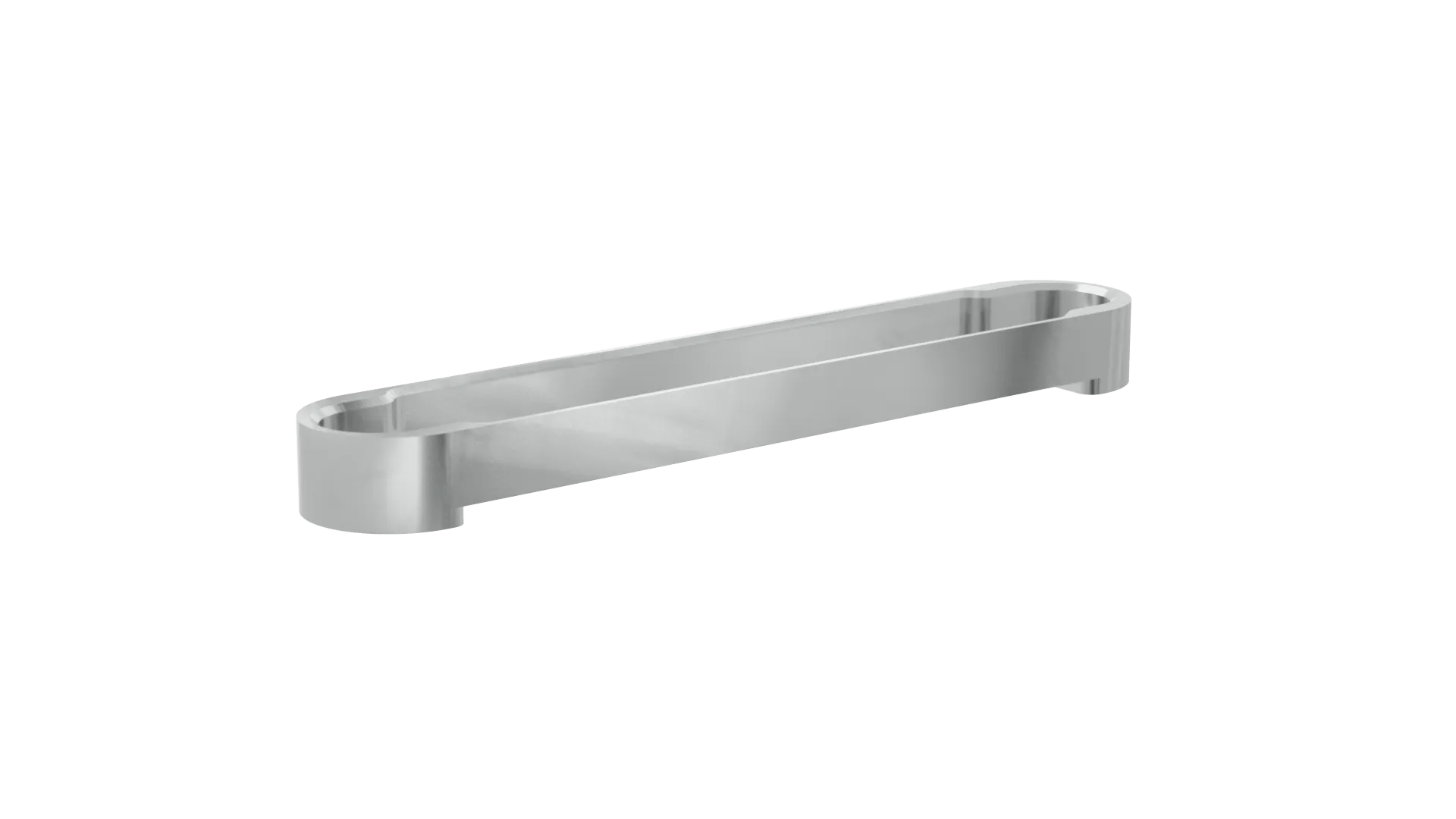

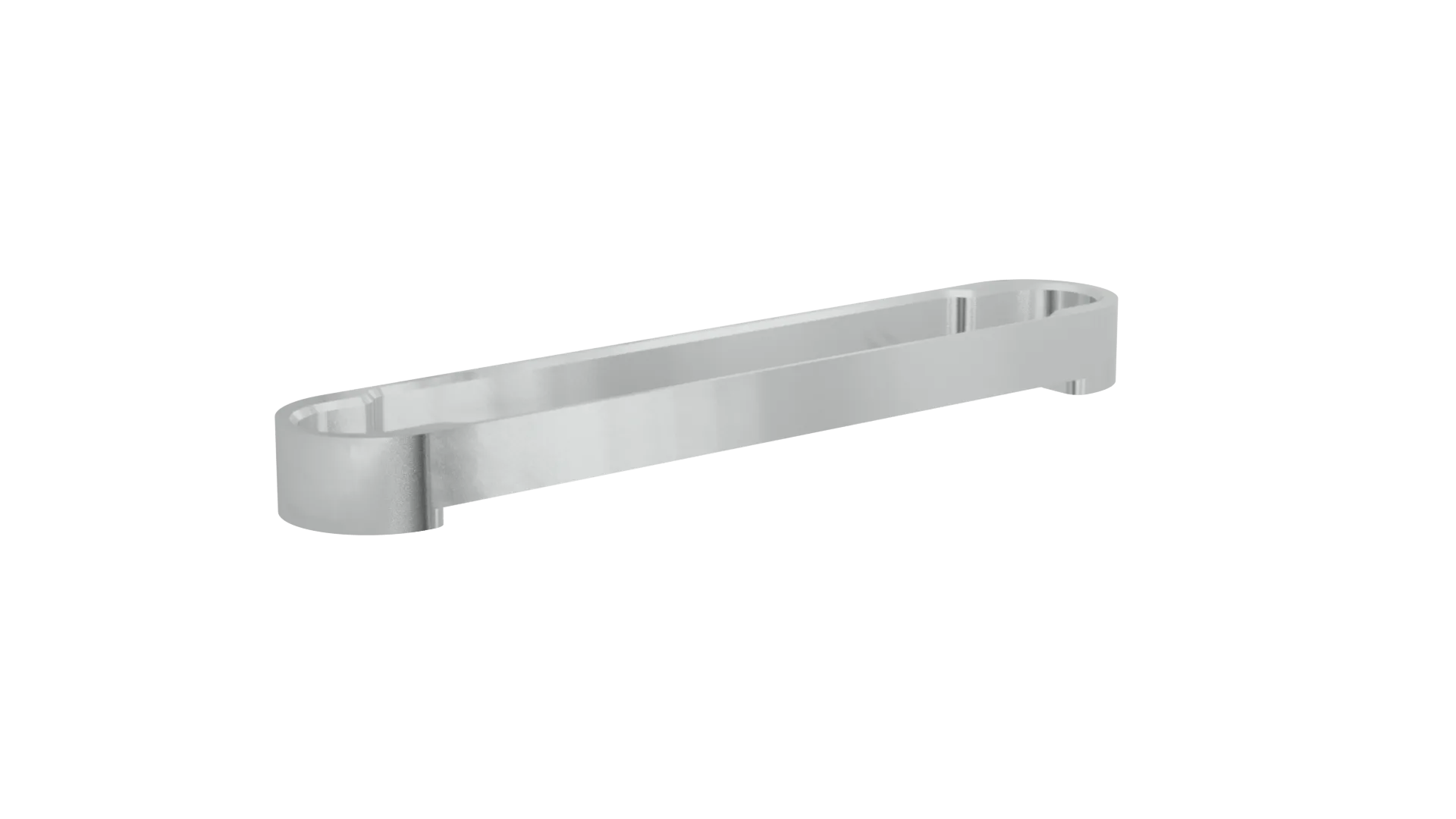

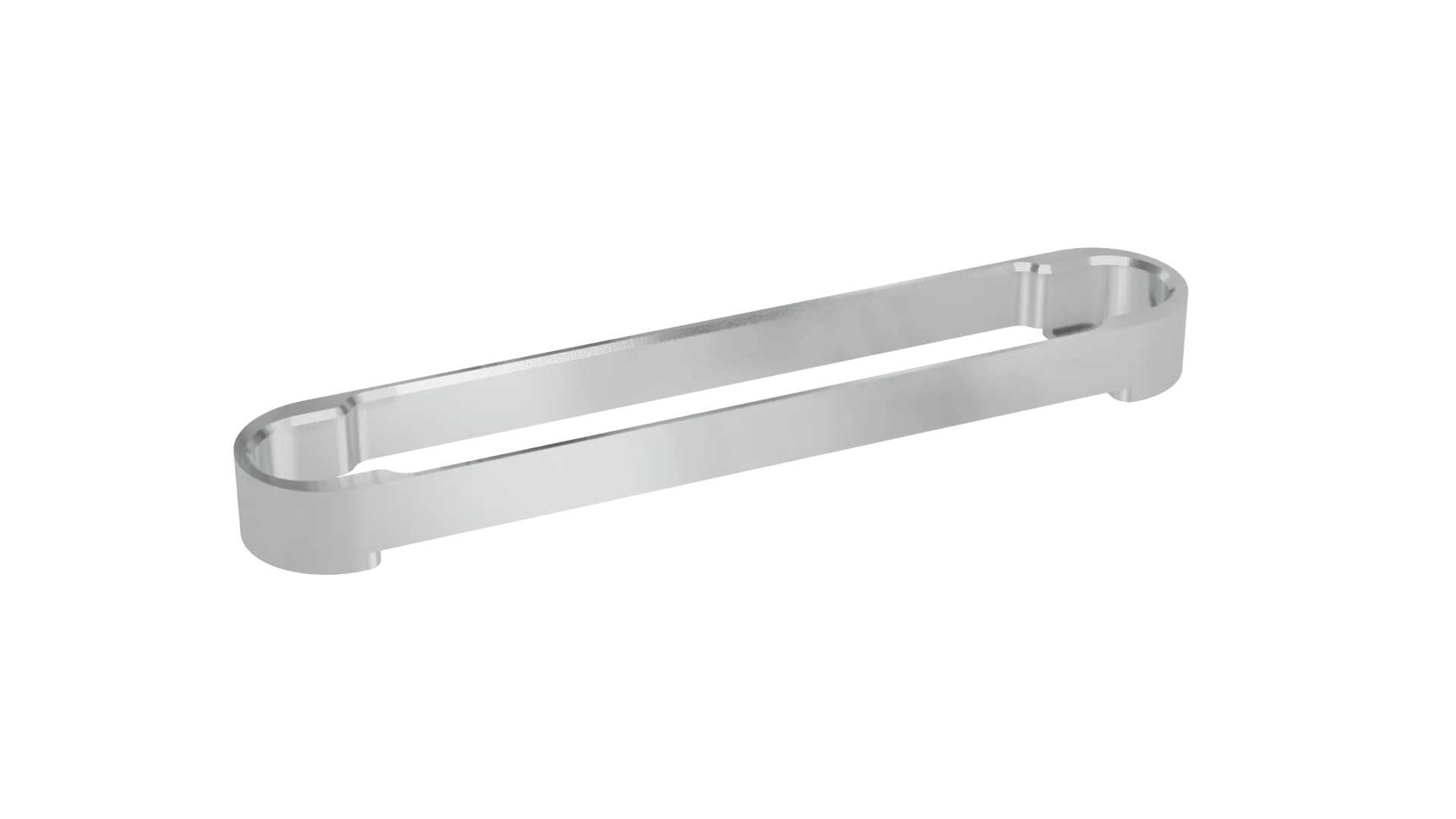

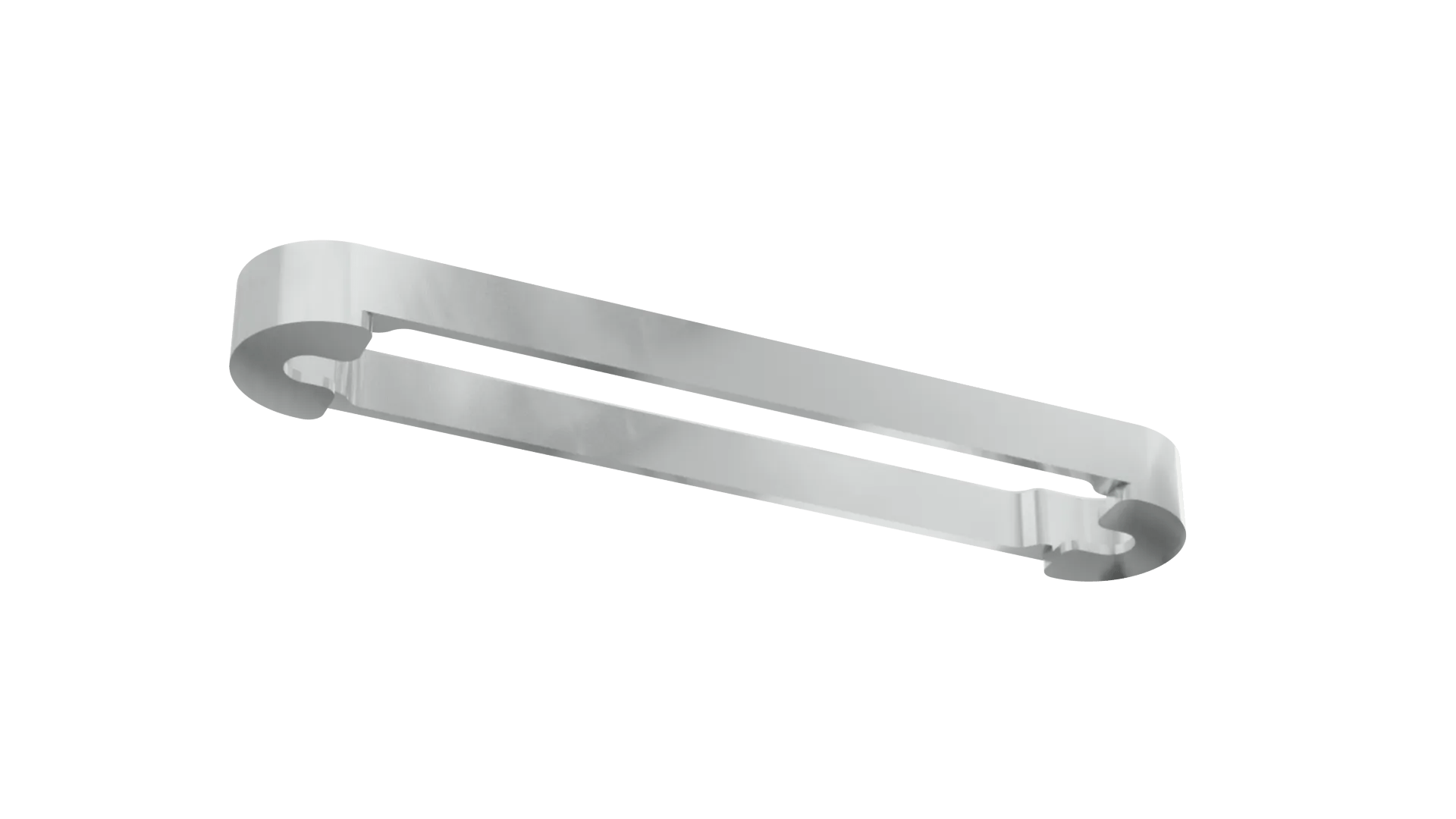

25+25 Pos. Panel Mount Metal Backshell for Gecko-SL
1.25mm Pitch High-Reliability Connector - Gecko Screw-Lok
Loading… Check availability
4 similar products View products
Traceparts account required
Product Description
- Metal Backshell item for use with front panel mount (cable) or board mount (PCB) connectors. Use with female reverse fix screw-loks, or male standard gender screw-loks.
- Use with the following 50-contact connectors or housings: male cable front panel mount G125-3245096M2, male PCB connector G125-MV15005M2P, female cable front panel mount G125-2245096F3 or female PCB connector G125-FV15005F3P .
- If using with a double-ended cable assembly, will need to be assembled on the cable before both connectors are fitted to the cables.
Traceparts account required
Technical Details
Specification
EU RoHS Status:
Contact Pitch:
1.25mm (0.049")
Connector Orientation:
Vertical
Connection Type:
Front Panel Mount or Board Mount
Operating Temperature:
-65°C to +150°C
End Stackable:
No
Side Stackable:
No
Can be cut to another size:
No
Number of Rows:
2
Number of Signal Contacts:
50
Materials
Housing Material:
Aluminium Alloy
Housing Colour:
Nickel
Packaging Style:
Bulk/Loose
Dimensions
Individual Part Weight:
0.869g
Overall Dimensions (L x W x D) in mm:
44.40 x 8.00 x 3.95
Height of Connector above PCB:
3.95mm
