Home > G125-4440000
Active

G125-4440000

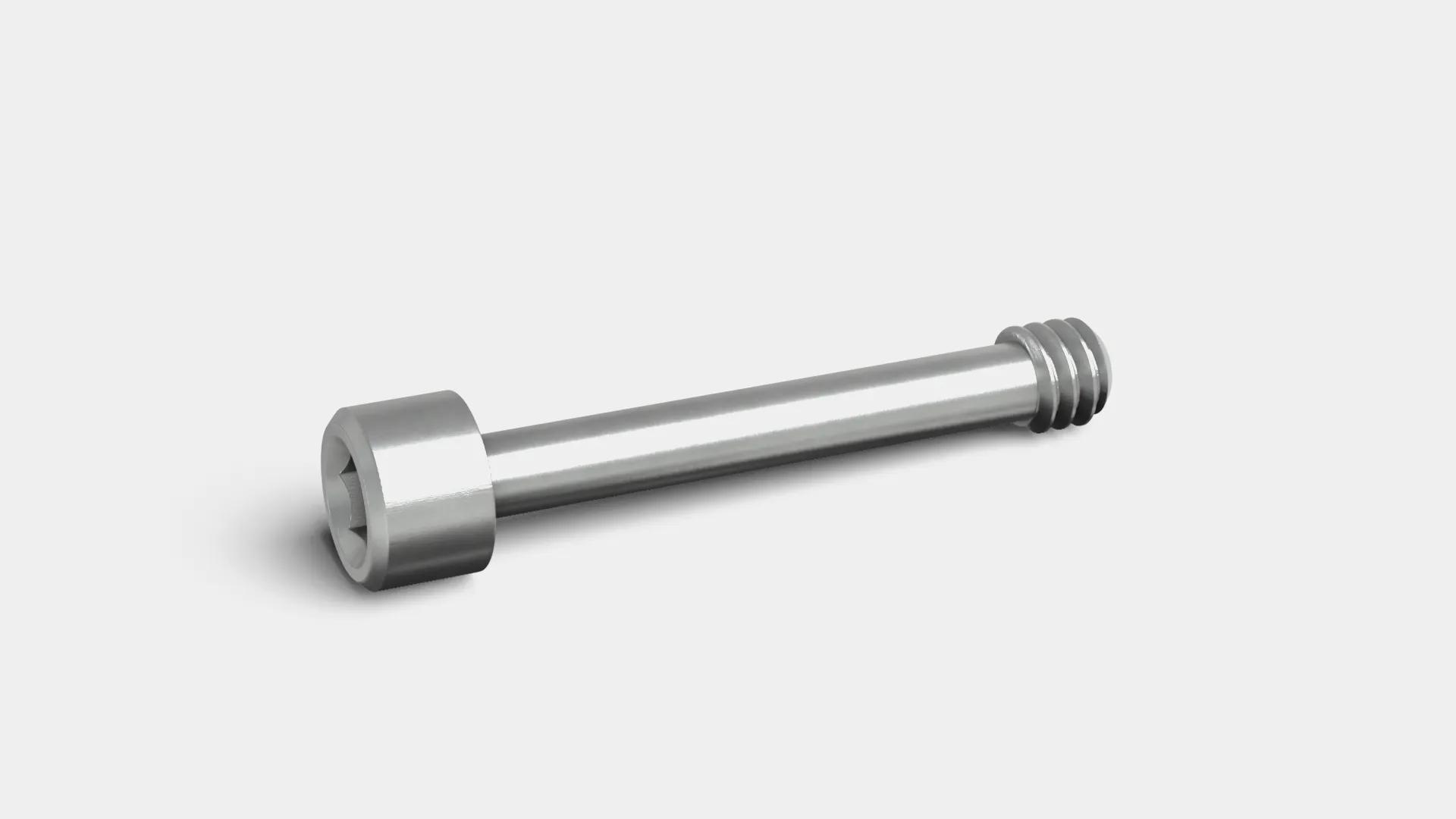

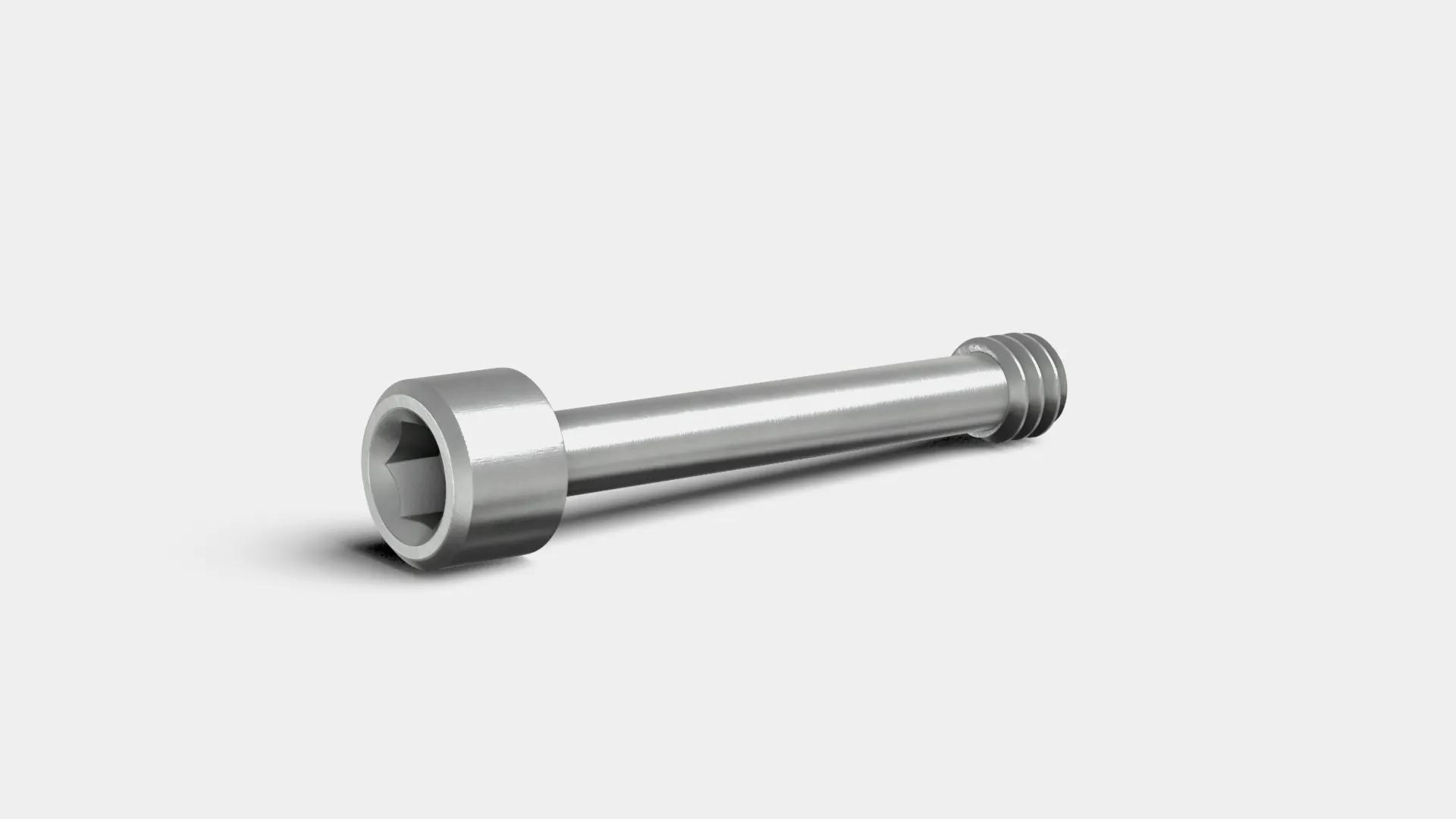

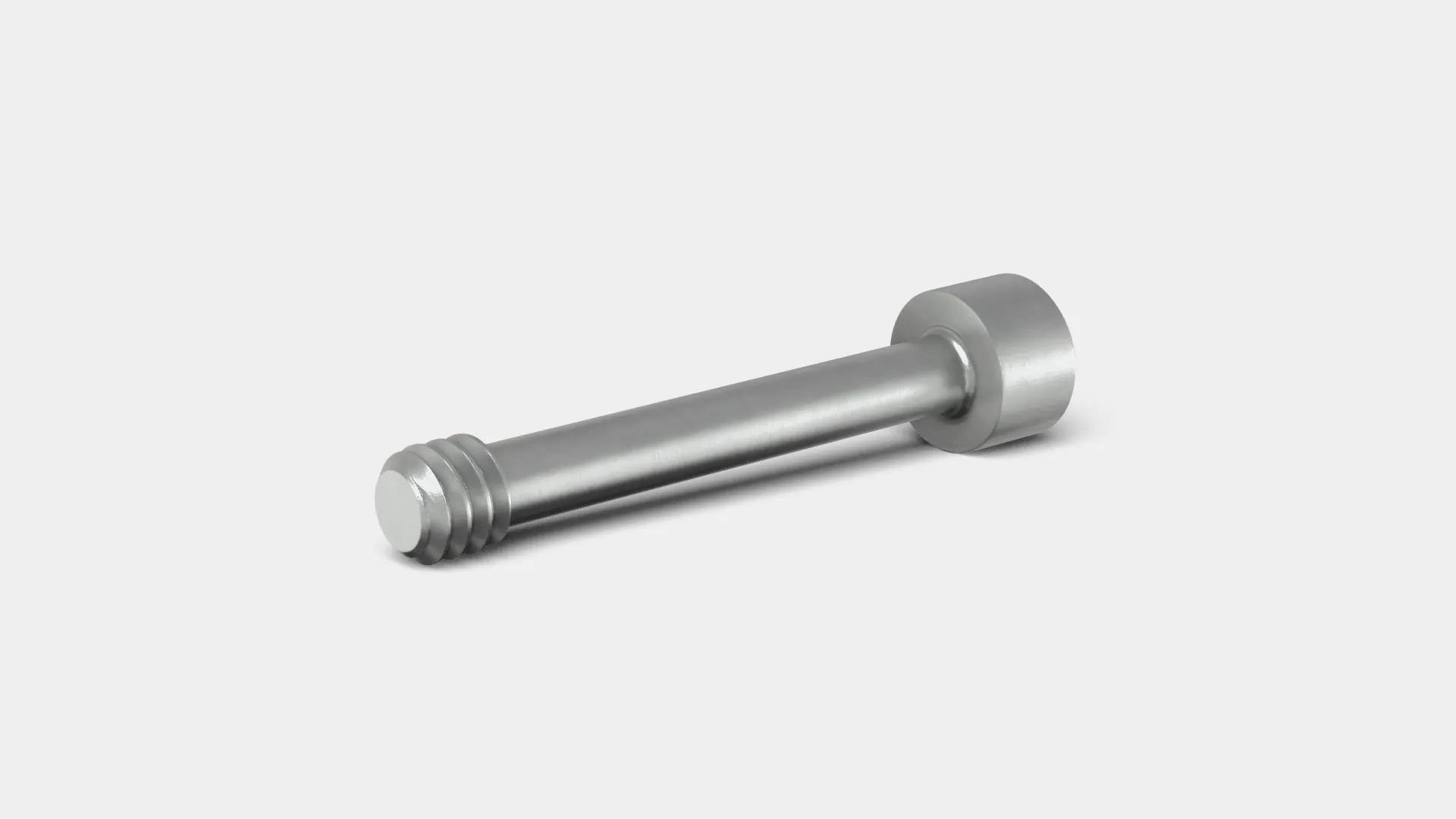

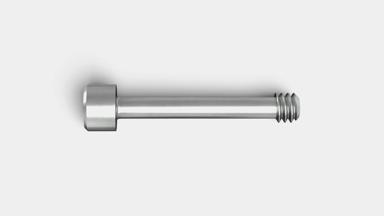

Spare Screw-Lok for Metal Backshell, Gecko-SL/MT

1.25mm Pitch High-Reliability Connector - Gecko

  • Spare Screw-Lok fixing for G125-960xxF1 and G125-960xx00 series.
  • Part is normally supplied with G125-960xxF1 backshell kits.
  • If combined with a G125-960xx00 backshell, it will turn it into a G125-960xxF1 backshell kit.
Add to Favorites

Technical Details

Specification

Contact Pitch:

1.25mm (0.049")

Contact Gender:

Accessory

Operating Temperature:

-65°C to +150°C

Polarising Features:

No

End Stackable:

No

Side Stackable:

No

Can be cut to another size:

No

Materials

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Dimensions

Individual Part Weight:

0.238g

Overall Dimensions (L x W x D) in mm:

13.70 x Ø3.00

Thread Size:

M2

Availability

5,450 in stock

Info Circle

Low availability or made to order”: “This product is typically manufactured to order. When out of stock, minimum order quantities may apply.

Limited availability or made-to-order

Stock held by Harwin: contact distributor to purchase.

Distributor Location Quantity (Updated Daily)
Distributor Harwin
Location Global
Quantity (Updated Daily) 5450
