G125-4510000B

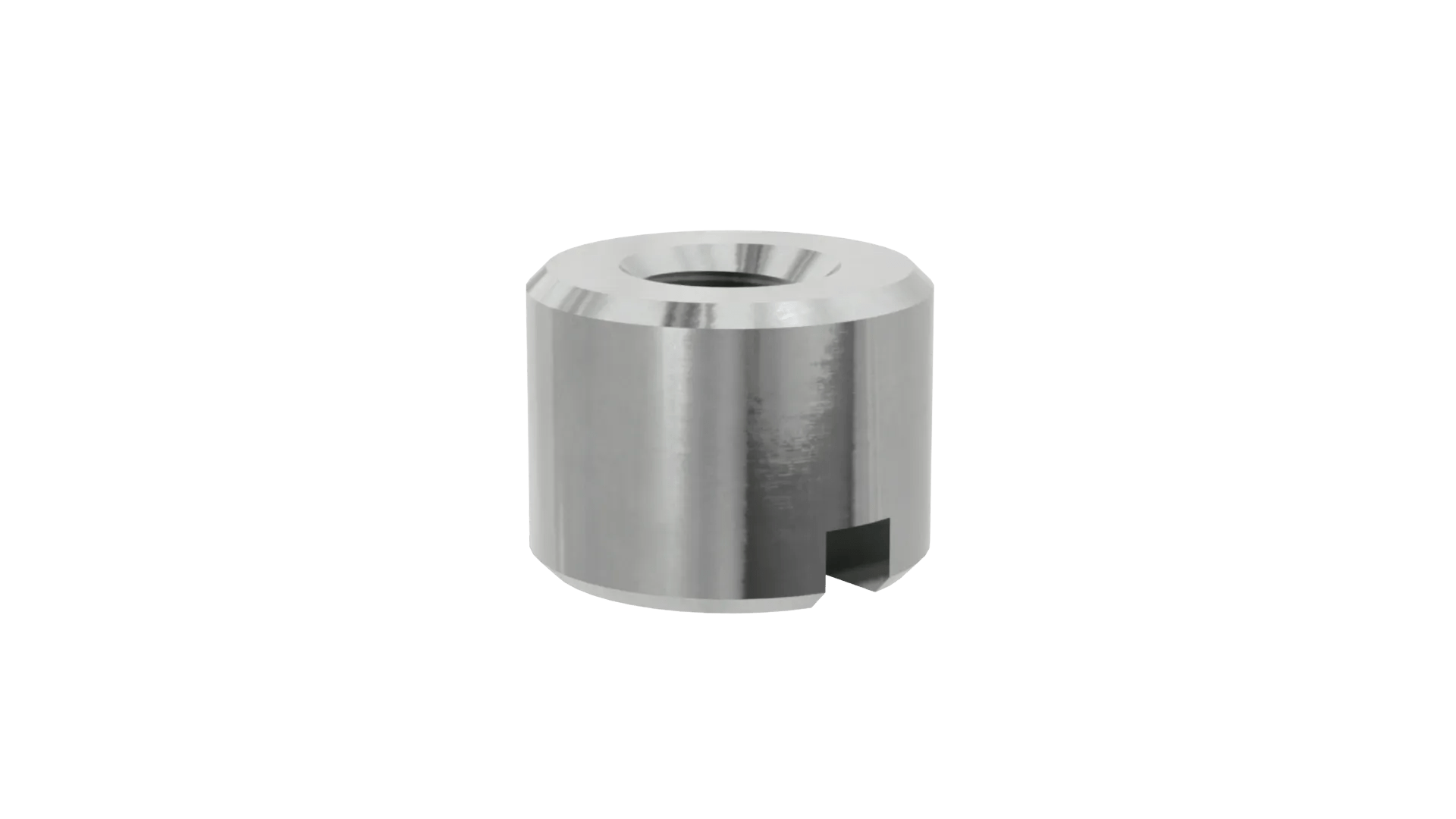

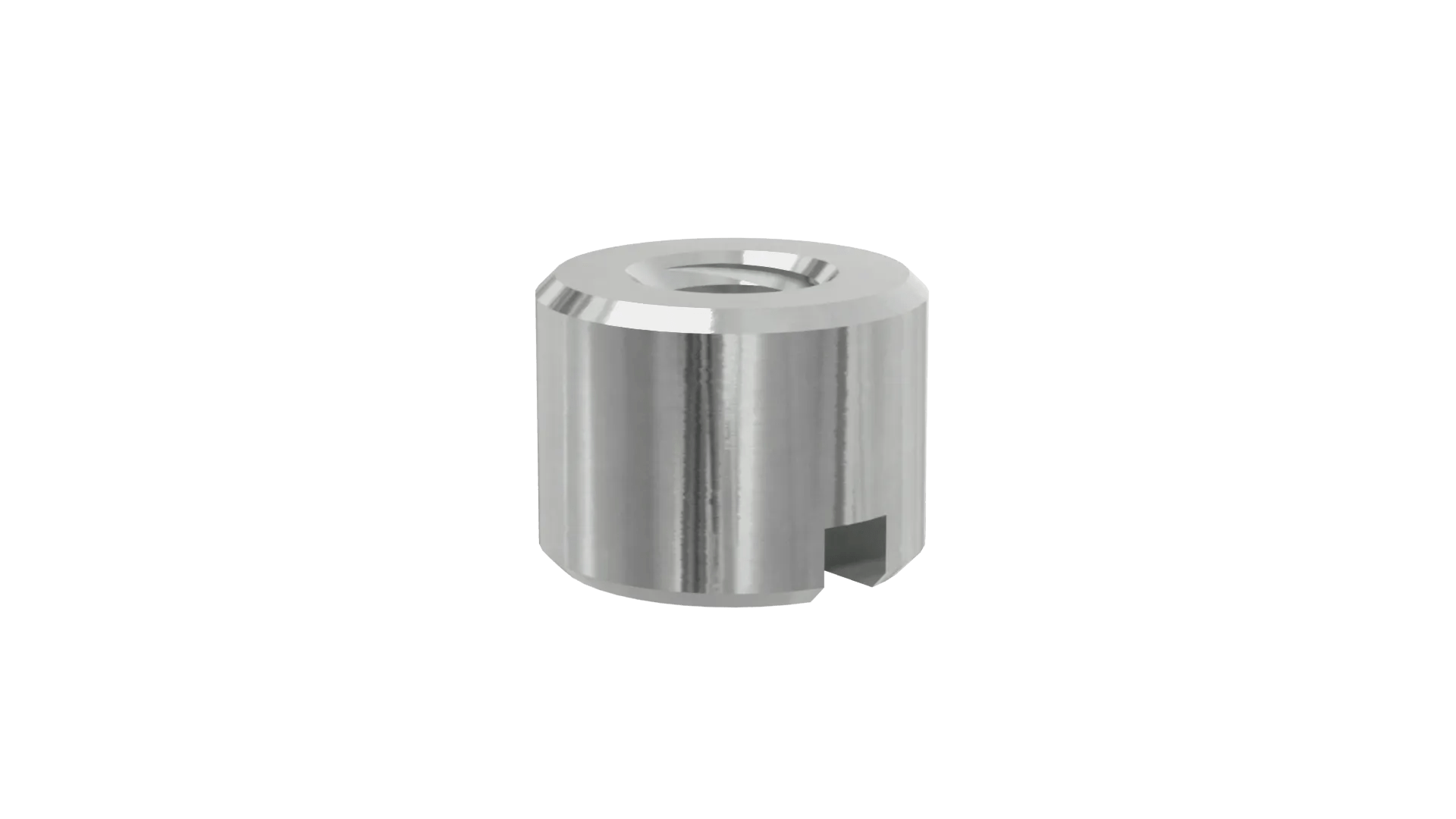

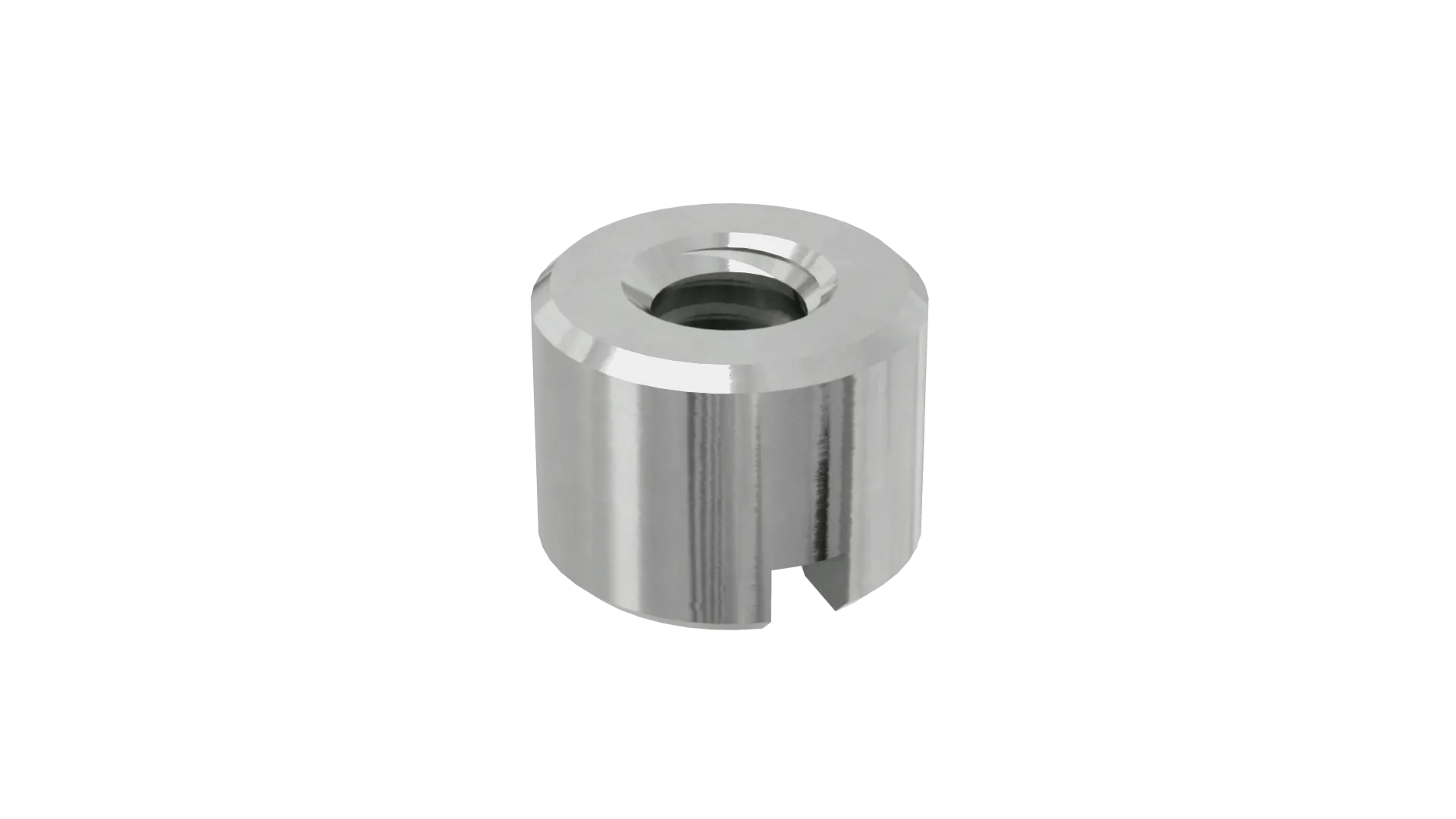

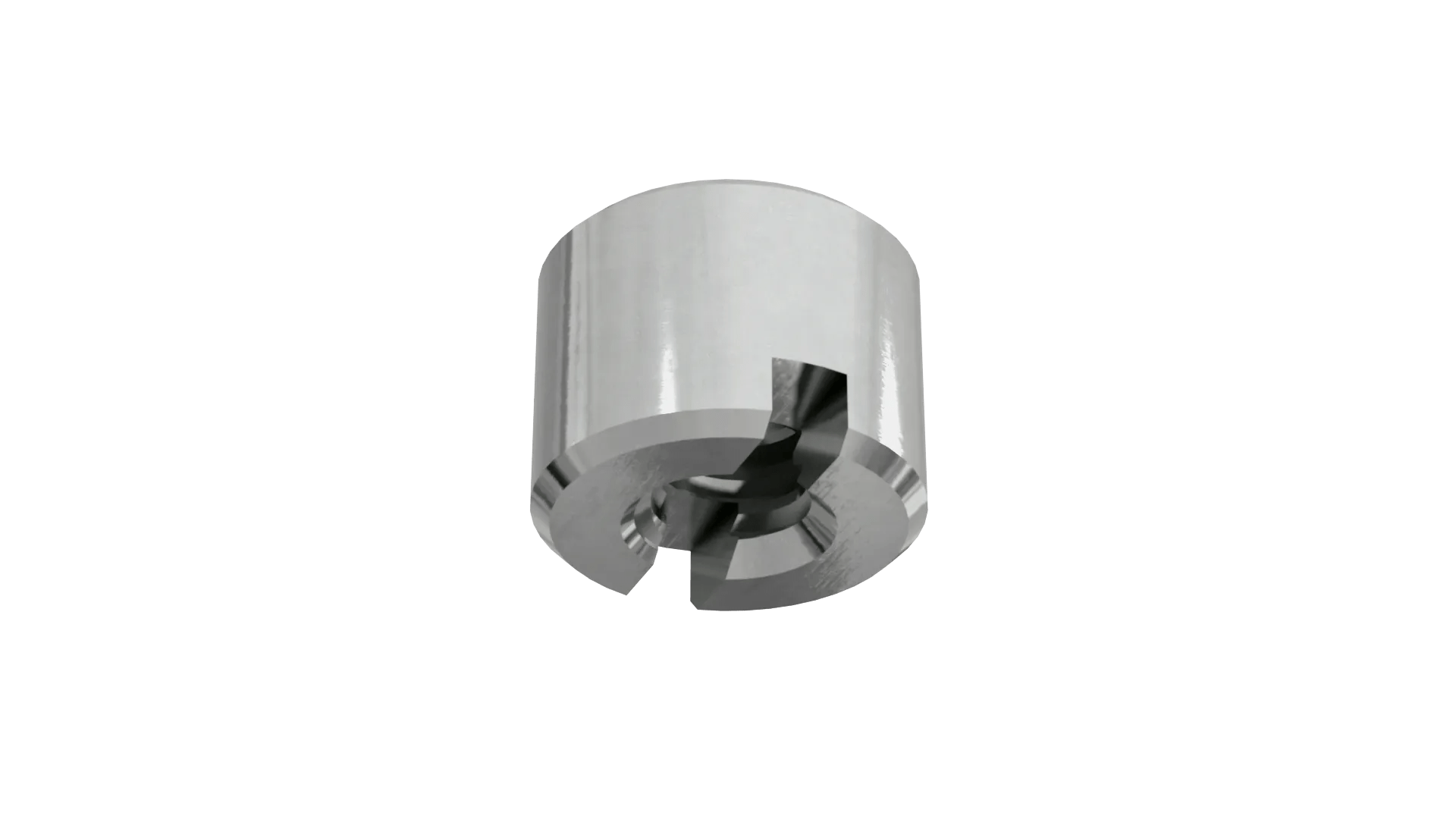

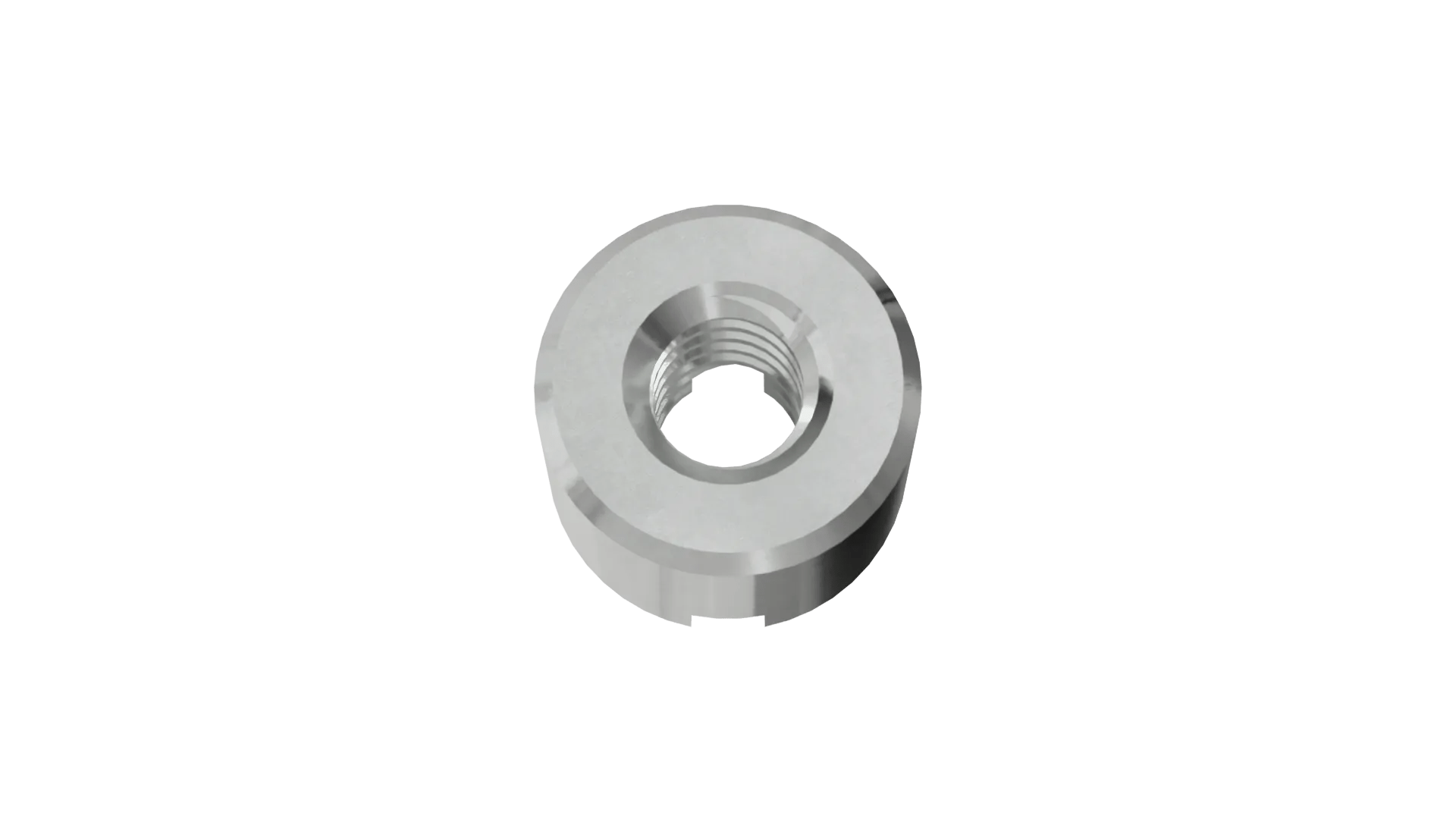

Slotted Jackscrew Nut for Screw-Lok

1.25mm Pitch High-Reliability Connector - Gecko

Slotted Jackscrew nut, to use with male studs for board-mount strain relief.
Use with: female vertical Screw-Lok connectors G125-FV1xx05F3x (Throughboard) and G125-FS1xx05F3x (SMT); male vertical Screw-Lok connectors G125-MV1xx05M2x (Throughboard) and G125-MS1xx05M2x (SMT). Also use with Female Gecko-MT connectors.
M2 threaded, 4mm external diameter. See Component Specification C125xx for Torque recommendations.

Request Samples

Availability

G125-4510000B - Slotted Jackscrew Nut for Screw-Lok

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Contact Pitch:

1.25mm (0.049")

Operating Temperature:

-65°C to +150°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.22g

Overall Dimensions (L x W x D) in mm:

3.00 x Ø4.00

Thread Size:

Availability

12,416 in stock

Questions & Answers Ask a Question

What torque value should be used for these screw-loks?

The torque value for mating screw-loks is 16-18cmN. This value is given in the Component Specification C125xx (page 3).

Downloads

PDF

Technical Drawing / Datasheet - G125-4510000B.pdf

ZIP

G125-4510000B CAD Model (ZIP file containing STP and IGES)

Download

PDF

C125XX Component Specification - Gecko G125 Series (1.25mm pitch High-Reliability)

PDF

Test Report HT067 - Gecko-SL (G125 Series) - Mechanical Screw-Lok test

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.1) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for Gecko G125-4510000B product

PDF

Product Training Module - Overview Guide to the Gecko Screw-Lok range, 1.25mm pitch High-Reliability

PDF

Catalog page - Gecko-MT Female Throughboard Reverse Fix

PDF

Catalog page - Gecko-MT Male Cable Housings Panel Mount

PDF

Catalog page - Gecko-SL Female Throughboard Reverse Fix

PDF

Catalog page - Gecko-SL Female SMT Reverse Fix

PDF

Catalog page - Gecko-SL Female Cable Housings Reverse Fix

PDF

Catalog page - Gecko-SL Male Vertical Throughboard

PDF

Catalog page - Gecko-SL Male Horizontal Throughboard

PDF

Catalog page - Gecko with Latches Female Throughboard

PDF

Catalog page - Gecko Introduction

PDF

Product Summary - Gecko-SL High-Reliability Connectors

PDF

Plating thickness on Gecko contacts (signal and power)
