Active

M80-2130000B

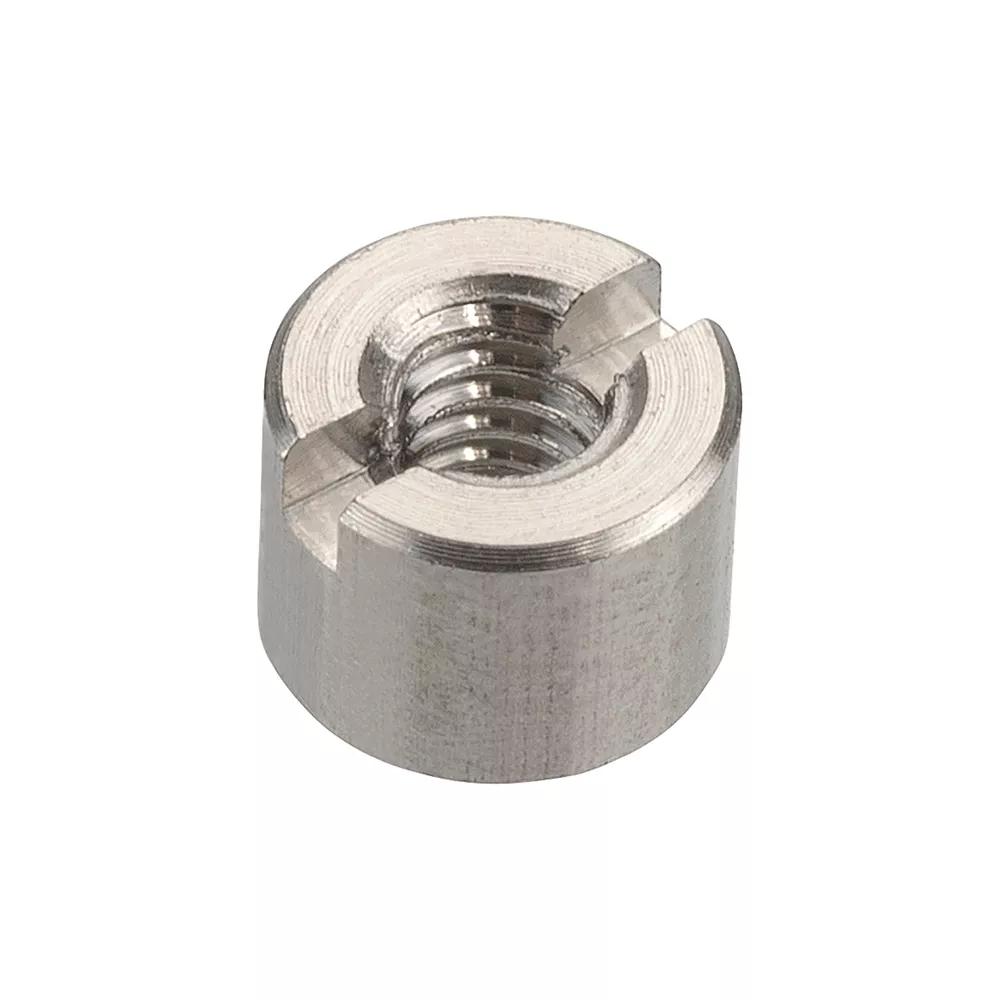

Panel Mount or Board Mount Jackscrew Nut

2.00mm Pitch High-Reliability Connector - Datamate

Slotted Jackscrew nut, to use with male studs for board-mount strain relief.
Used with jackscrew types M2, M3, ME, MH, MQ, F3, F6, F7, F8, F9, FG, FJ and FP, as well as standard J-Tek board mount studs.
Slotted screwdriver available – see Z80-298. M2 thread. See Component Specification C005xx for Torque recommendations.

Request Samples

Availability

M80-2130000B - Panel Mount or Board Mount Jackscrew Nut

Technical Details

EU RoHS Status:

RoHS Compliant (2015/863/EU) with no Exemption required

Operating Temperature:

-55°C to +125°C

Polarising Features:

End Stackable:

Side Stackable:

Can be cut to another size:

Base Material of Contact:

Stainless Steel

Packaging Style:

Bulk/Loose

Individual Part Weight:

0.22g

Overall Dimensions (L x W x D) in mm:

3.00 x Ø4.00

Thread Size:

Availability

28,780 in stock

Questions & Answers Ask a Question

What torque value should be used for these jackscrews?

The torque value for board or panel mounting is 21±2cmN. This value is given in the Component Specification C005xx (page 14).

Downloads

PDF

Technical Drawing / Datasheet - M80-2130000B.pdf

ZIP

M80-2130000B CAD Model (ZIP file containing STP and IGES)

Download

PDF

C005XX Component Specification - Datamate M80 and M83 Series (2.00mm, 4.00mm pitch High-Reliability)

PDF

RoHS Compliant (2015/863/EU) with no Exemption required

PDF

REACH Harwin statement (12-Feb-2021) including 211 SVHC (19-Jan-2021), Annex XIV & XVII

XLSX

Conflict Minerals Reporting Template (CMRT 6.01) - Company Summary Statement

XLSX

Cobalt Reporting Template (CRT 2.2) - Company Summary Statement

PDF

Environmental Legislation Statement (12-Feb-2021) - includes all material legislations

PDF

Material composition for M80-2130000B product

PDF

Product Training Module - Overview Guide to the Datamate range, 2 & 4mm pitch High-Reliability

PDF

Product Training Module - Guide to Datamate Latches (L-Tek), Jackscrews (J-Tek) and 101Lok

PDF

Datamate J-Tek and Mix-Tek - list of currently available Jackscrew types and their mating jackscrews

PDF

3D PDF file - M80-2130000B_3D.pdf

PDF

Catalog page - Datamate Coax Plug (Male) Vertical Throughboard

PDF

Catalog page - Datamate T-Contact Female Cable Housings (Guide Pin, 101Lok)

PDF

Catalog page - Datamate T-Contact Female Cable Housings (Reverse Fix)

PDF

Catalog page - Datamate Mix-Tek Housings Female Power/Coax (Guide Pin, Reverse Fix)

XLSX

Distributor part numbers for suitable cables for Datamate, Gecko, M300 & Kona

PDF

Product Summary - Datamate J-Tek High-Reliability Connectors

PDF

Product Summary - Datamate Mix-Tek Off-The-Shelf Connectors
